York DCMF09NWM42Q1 - Indoor Unit Removal Procedure (Continued); Cross Flow Blade and Motor Removal; Cushion Rubber Removal

923178-UTG-B-0114
28 Johnson Controls Unitary Products
18. Remove cross flow blade and motor
19. Remove cushion rubber
STEPS PROCEDURES
Blade
Motor

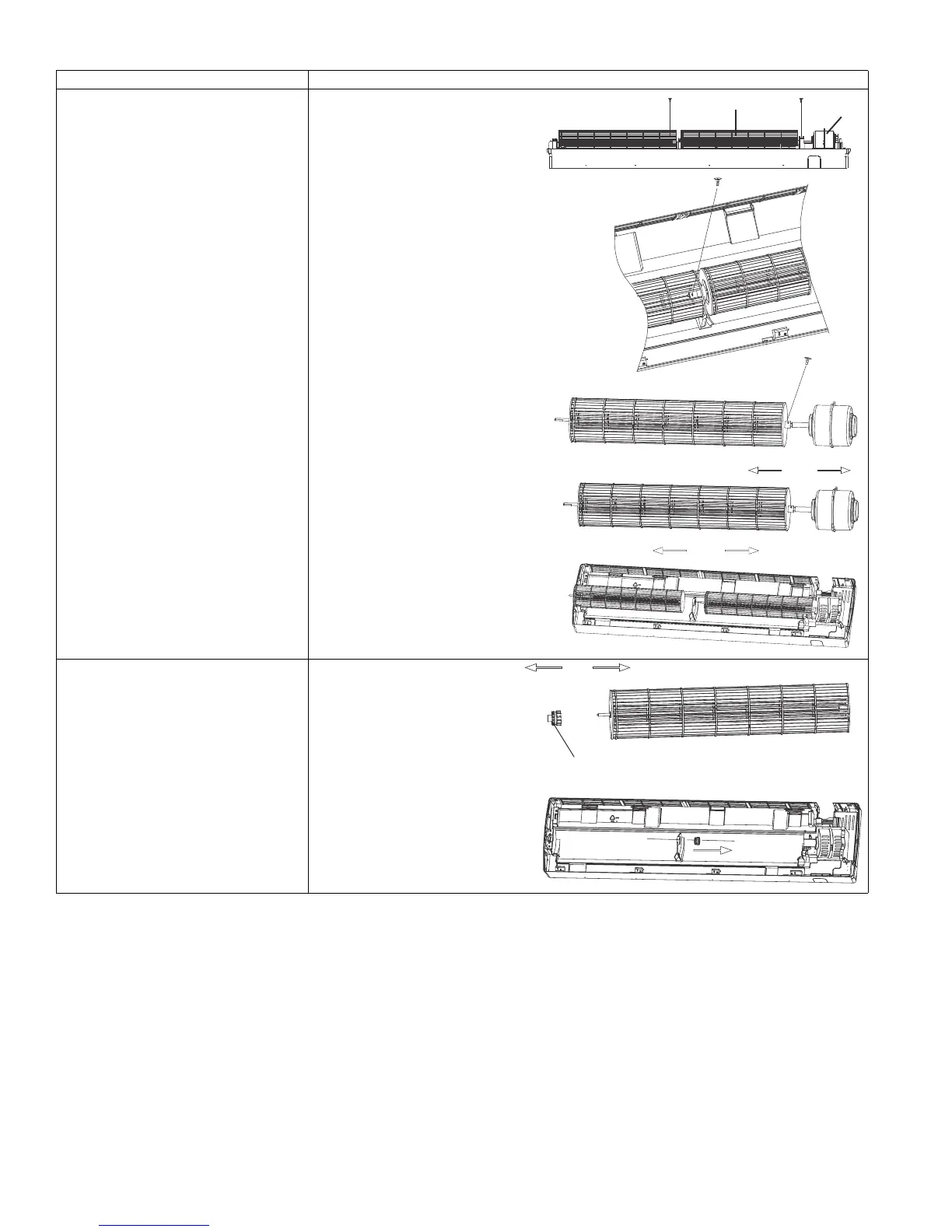

a. Remove screws fixing cross
flow blade and motor.
b. Remove the motor sub-assy.
c. Separate two cross flow blade.
Cushion Rubber
a. Remove the cushion rubber
on cross flow blade.
b. Remove the cushion rubber
from the base.
