York HB360 - Unit Wiring and Fan Orientation; HB360, 480, 600 & LB360, 480, 600 Wiring Diagram

036-21345-001-B-0105
Unitary Products Group 15

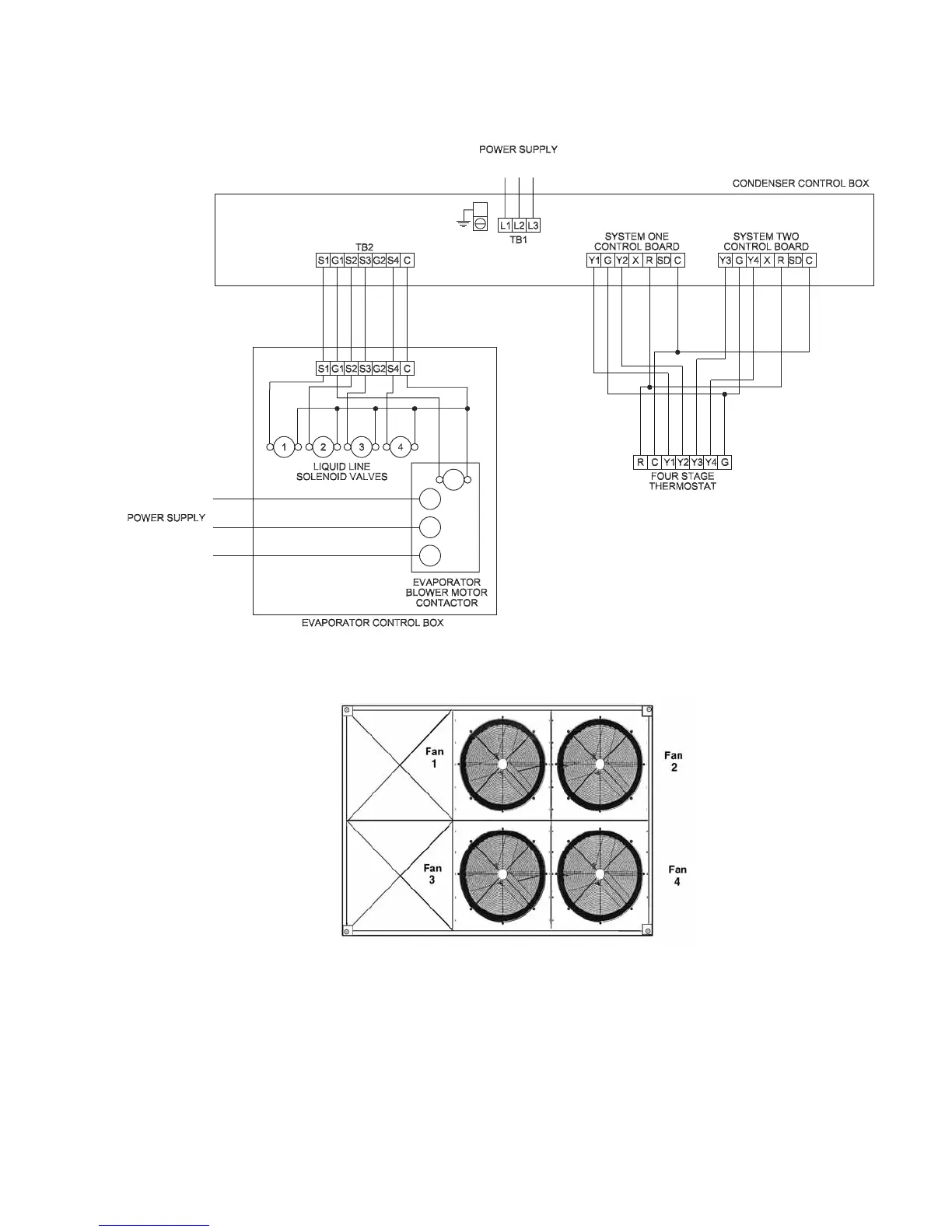

FIGURE 2 - TYPICAL FIELD WIRING FOR HB360, 480, 600 & LB360, 480, 600
380/415-3-50
380/415V-3-50
FIGURE 3 - FAN ORIENTATION CONTROL BOX END
