700699-YTG-B-0812
2 Johnson Controls Unitary Products
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.

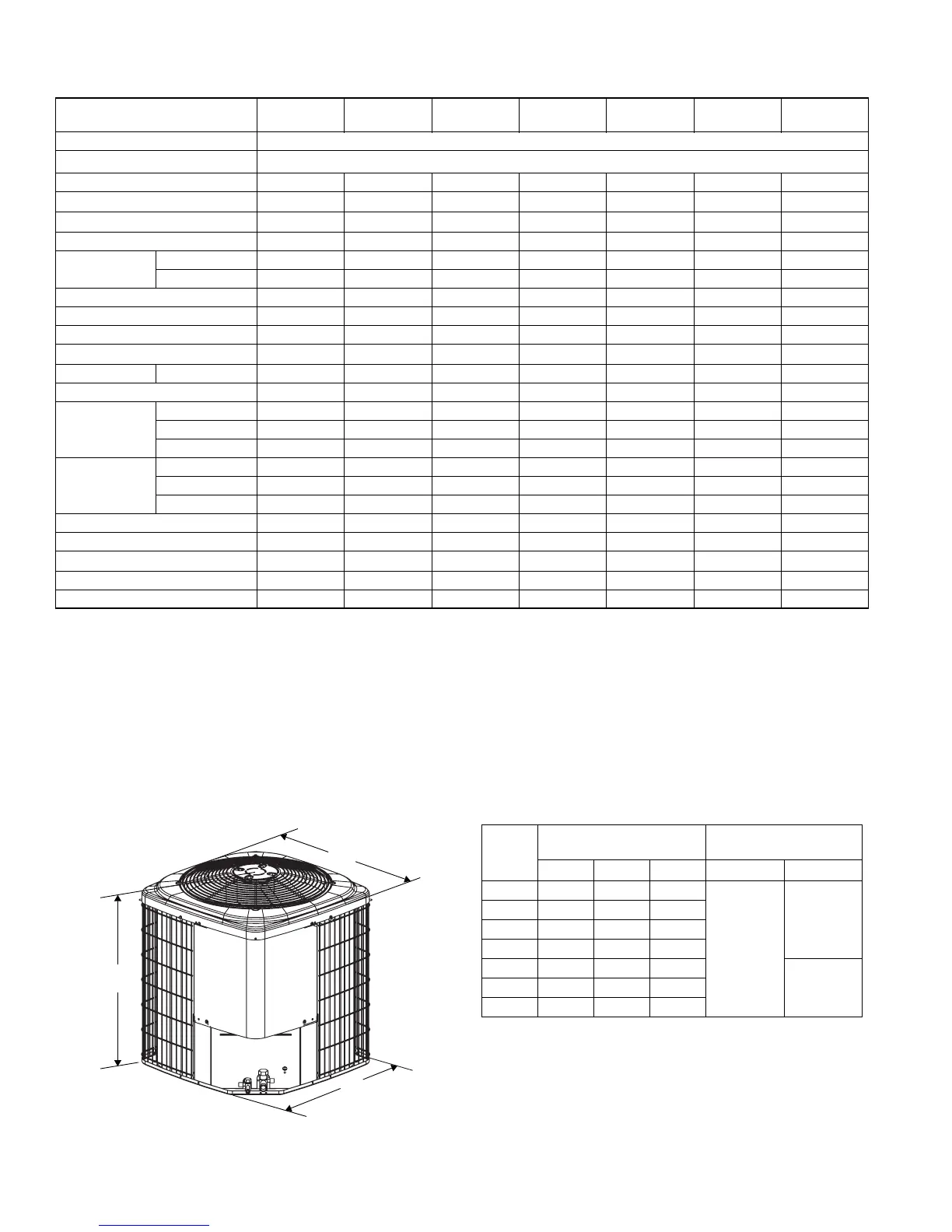

Physical and Electrical Data
MODEL
TCGF18
S41S3(E)
TCGF24
S41S3(E)
TCGF30
S41S3(E)
TCGF36
S41S3(E)
TCGF42
S41S3(E)
TCGF48
S41S4(E)
TCGF60
S41S4(E)
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range
1
187 to 252
Minimum Circuit Ampacity 12.0 16.8 18.4 19.1 23.9 26.3 32.7
Max. Overcurrent Device Amps
2
20 25 30 30 40 45 50
Min. Overcurrent Device Amps
3
15 20 20 20 25 30 35
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Compressor
Amps
Rated Load 9.0 12.8 14.1 14.1 17.9 19.9 25.0
Locked Rotor 46 58 73 77 112 109 134
Crankcase Heater No No No No No No No
Factory External Discharge MufflerNoNoNoNoNoNoNo
Factory External Check ValveNoNoNoNoNoNoNo
HS Kit Required with TXV
4
No No No No No No No
Fan Motor Amps Rated Load 0.8 0.8 0.8 1.5 1.5 1.5 1.5
Fan Diameter Inches 22 22 22 22 24 24 24
Fan Motor
Rated HP 1/8 1/8 1/8 1/4 1/4 1/4 1/4
Nominal RPM 1075 1075 1075 850 850 850 850
Nominal CFM 2750 2750 2800 3200 3600 3700 3750
Coil
Face Area Sq. Ft. 13.1 13.1 17.4 17.4 20.0 21.4 24.0
Rows Deep 1 1 1 1 1 1 1
Fins / Inch 23 23 23 23 23 23 23
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed) 3/4 3/4 3/4 3/4 7/8 7/8 7/8
Unit Charge (Lbs. - Oz.)
5
3 - 10 3 - 2 3 - 7 3 - 10 4 - 4 5 - 1 5 - 4
Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.67 0.67 0.67
Operating Weight Lbs. 125 128 130 145 172 208 231
Models with “E” on the end of the model number have an ElectroFin® coating on the outdoor coil.
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
4. See Hard Start Kit Accessory Installation Manual for Hard Start Kit part number for each model.
5. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract
the amount of refrigerant, using the difference in length multiplied by the per foot value.
Unit
Model
Dimensions
(Inches)
Refrigerant Connection
Service Valve Size
A B C Liquid Vapor
18 28-1/4 29-1/2 29-1/2
3/8
3/4
24 28-1/4 29-1/2 29-1/2
30 36-1/4 29-1/2 29-1/2
36 36-1/4 29-1/2 29-1/2
42 34-1/4 34 34
7/848 36-1/4 34 34
60 40-1/4 34 34
