York LEU480 - Unit Dimensions - Leu600; Hot Water Coil Dimensions

550.13-TG2Y (799)
10 Unitary Products Group

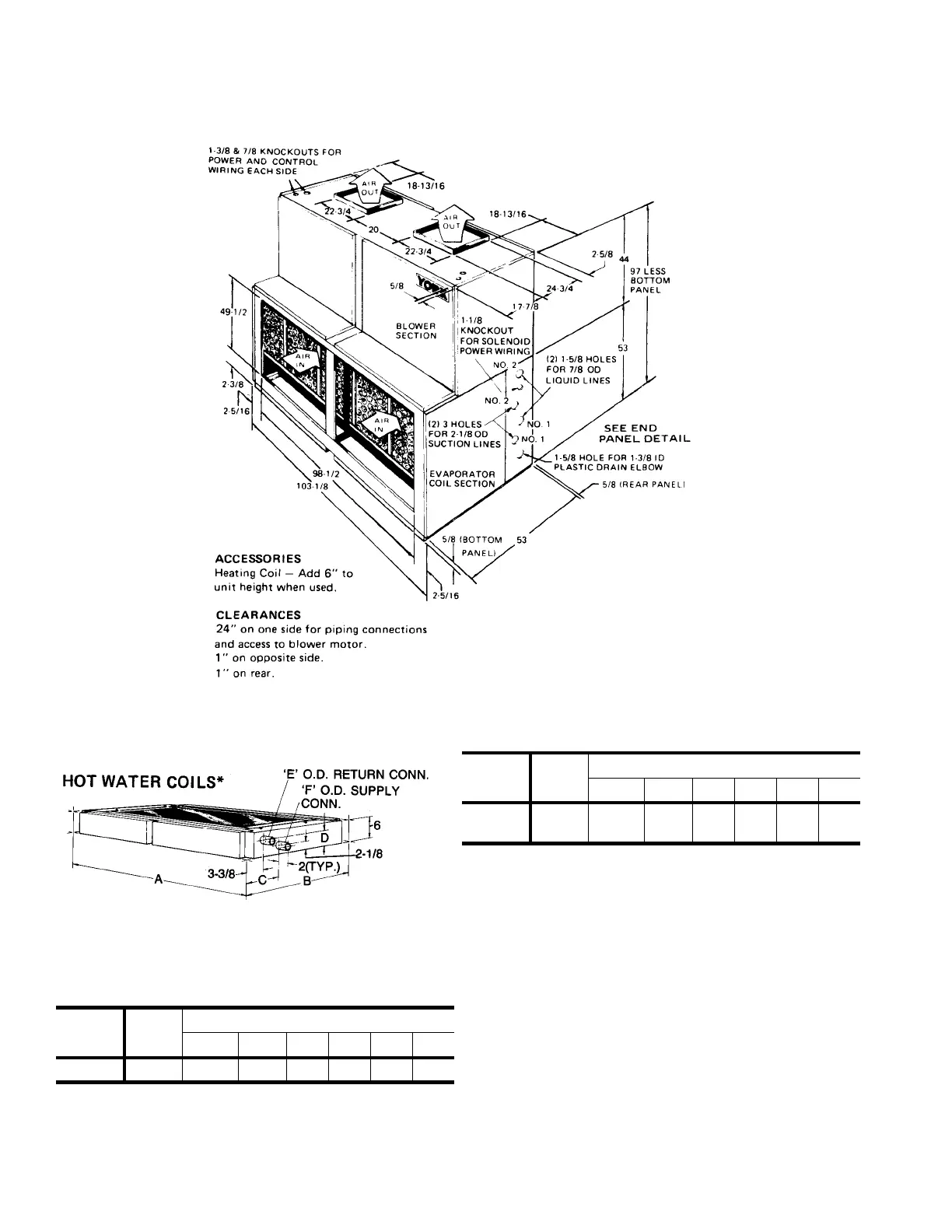

FIGURE 4 : UNIT DIMENSIONS - LEU600
FIGURE 5 : HOT WATER COIL DIMENSIONS
TABLE 11: HOT WATER COIL DIMENSIONS
COIL
MODEL
UNIT
MODEL
DIMENSIONS
ABCDEF
1HW0406
LEU360 100-1/8 37-7/8 6-3/4 3-7/8 1-3/8 1-3/8
1HW0407
LEU480
LEU600
103-1/8 45-1/4 6-1/2 4 1-5/8 1-5/8
TABLE 11: HOT WATER COIL DIMENSIONS
COIL
MODEL
UNIT
MODEL
DIMENSIONS
ABCDEF
