York LP9C Series - Horizontal Right Configuration

1083292-UIM-A-0114
26 Johnson Controls Unitary Products

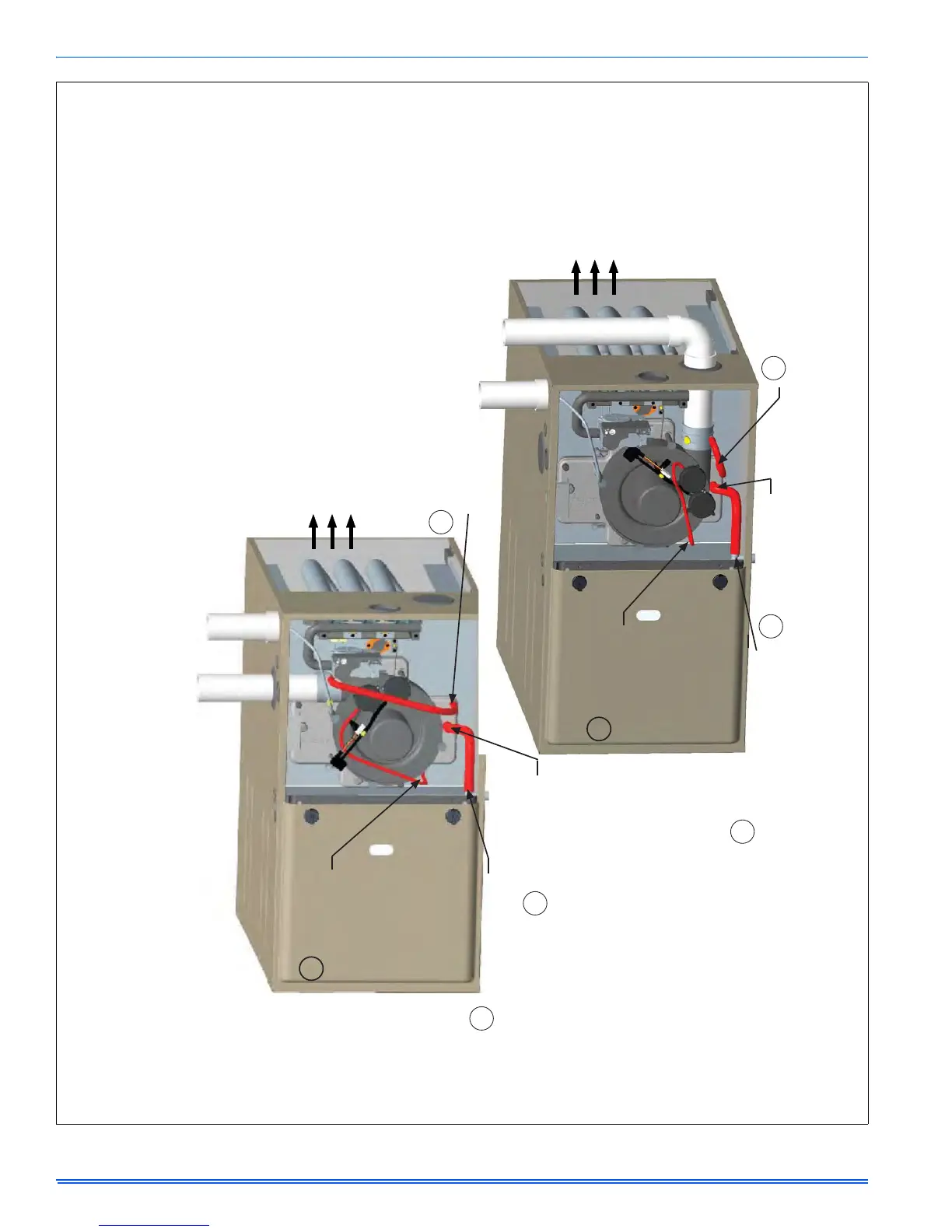

FIGURE 32: Horizontal Right Configuration
AIRFLOW
HORIZONTAL - RIGHT
INDUCER ROTATED
HORIZONTAL - RIGHT
INDUCER AS RECEIVED
Move rain gutter hose to this position
Move pressure switch hose to this position.
Change condensate drain connection to the 90° fitting provided
Move condensate drain hose to this position
Move rain gutter hose to this position
Change condensate drain connection to the 90° fitting provided
Move condensate drain hose to this position
AIRFLOW
Move pressure switch hose to this position.
When drain hose routing changes are required, be sure to cap all un-used openings.
If rerouting hoses - excess length should be cut off so that no sagging loops will collect and hold condensate, which will cause the furnace to not operate.
2
3
4
1
1
2
3
4
