York MM9E Series User Manual

5715184-BIM-A-0519
Johnson Controls Ducted Systems 29
NOTES:
1. Airflow expressed in standard cubic ft per minute (CFM)
2. Motor voltage at 115 V

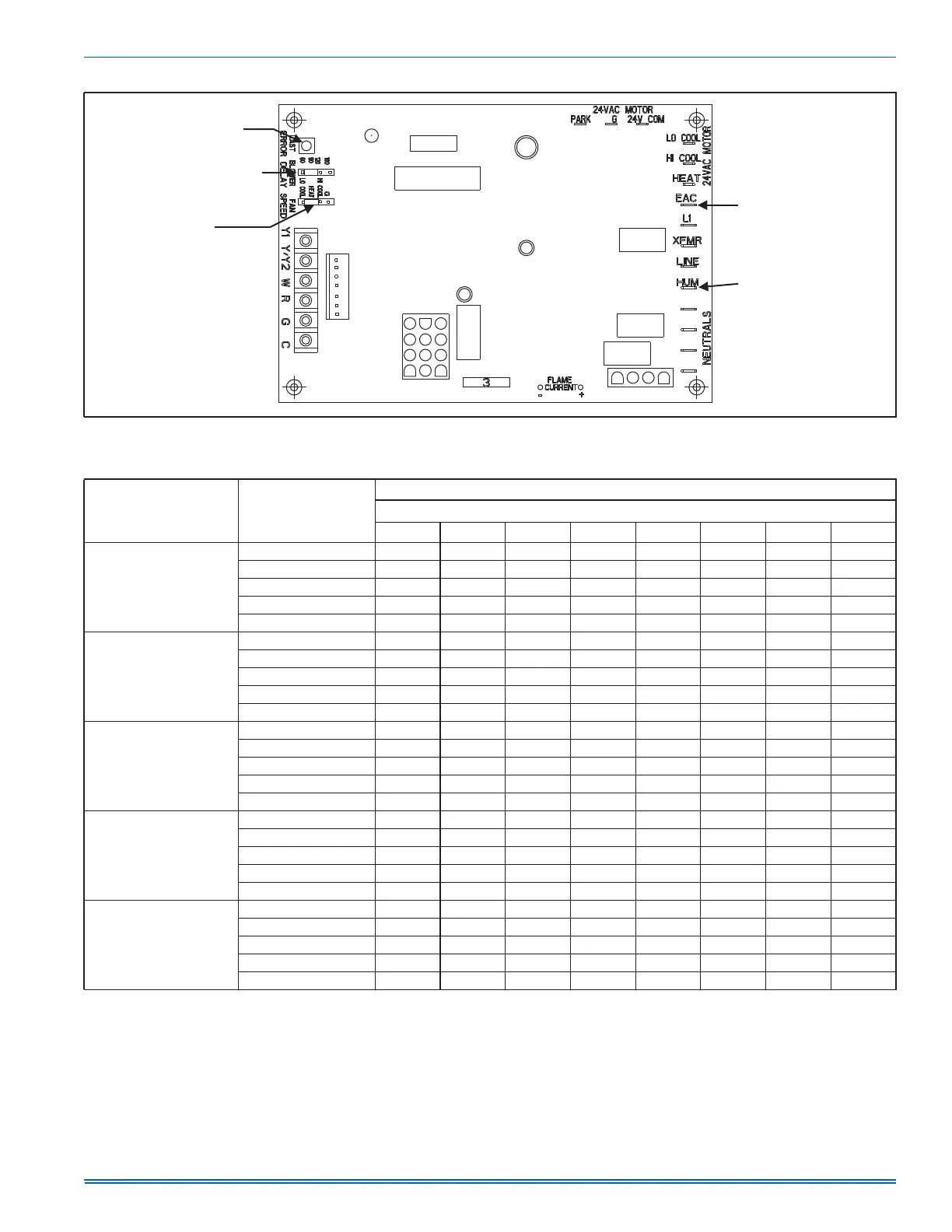

FIGURE 33: Furnace Control Board
ELECTRONIC AIR
CLEANER TERMINAL
HUMIDIFIER TERMINAL
DIAGNOSTIC ERROR CODE
RETRIEVAL BUTTON
BLOWER OFF DELAY JUMPER
CONTINUOUS FAN SPEED
JUMPER
Table 18: Blower Performance CFM - Any Position (Without Filter) - MM9E
Models
Input/Airflow/Cabinet
Speed
Airflow Data (SCFM)
Ext. Static Pressure (in. H
2
O)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8
60/1200/B
High 1342 1316 1290 1268 1243 1219 1172 1116
Medium High 1297 1267 1247 1217 1189 1159 1129 1087
Medium 1165 1139 1108 1080 1051 1020 983 948
Medium Low 1027 995 965 936 894 862 825 778
Low 822 775 740 687 649 605 566 512
80/1200/B
High 1418 1390 1364 1333 1304 1281 1246 1205
Medium High 1305 1281 1244 1217 1182 1149 1109 1066
Medium 1139 1112 1071 1035 992 951 908 874
Medium Low 1017 986 948 901 859 819 765 727
Low 885 821 763 711 651 611 560 518
80/1600/C
High 1704 1678 1652 1626 1607 1569 1512 1429
Medium High 1360 1329 1296 1253 1226 1194 1159 1122
Medium 1182 1147 1108 1075 1044 1005 967 919
Medium Low 961 923 882 842 787 733 667 598
Low 871 757 717 654 557 499 454 402
80/2000/C
High 2130 2086 2065 2016 2001 1932 1863 1775
Medium High 1922 1894 1835 1810 1771 1727 1688 1627
Medium 1684 1648 1616 1559 1516 1471 1429 1382
Medium Low 1563 1528 1474 1435 1392 1329 1291 1244
Low 1371 1321 1281 1222 1173 1131 1076 1017
100/1600/C
High 1716 1672 1645 1612 1602 1555 1520 1485
Medium High 1369 1333 1301 1260 1218 1182 1145 1107
Medium 1170 1126 1081 1045 1006 959 914 876
Medium Low 1033 984 944 899 853 791 729 696
Low 972 812 763 710 637 554 509 455
