Indoor unit installation
Units can be installed vertically at floor level or horizontally
beneath a ceiling.
Under Ceiling
A
MCC -MCH 09-25
90 cm.
20 cm.
A
B
Bracket
Drill holes for fastners to attach brackets to wall or ceiling.
Use 12 mm. fastners suitable for the wall or ceiling material.
Wall Mount
Now, securely tighten the hex bolts on both sides.
Disassemble the side panels and the air inlet grill as shown.
First open the grill,then remove the side panel installation
screws. Slide the panel toward the top of the unit to detach it.
Dissasembly
Wall Mount

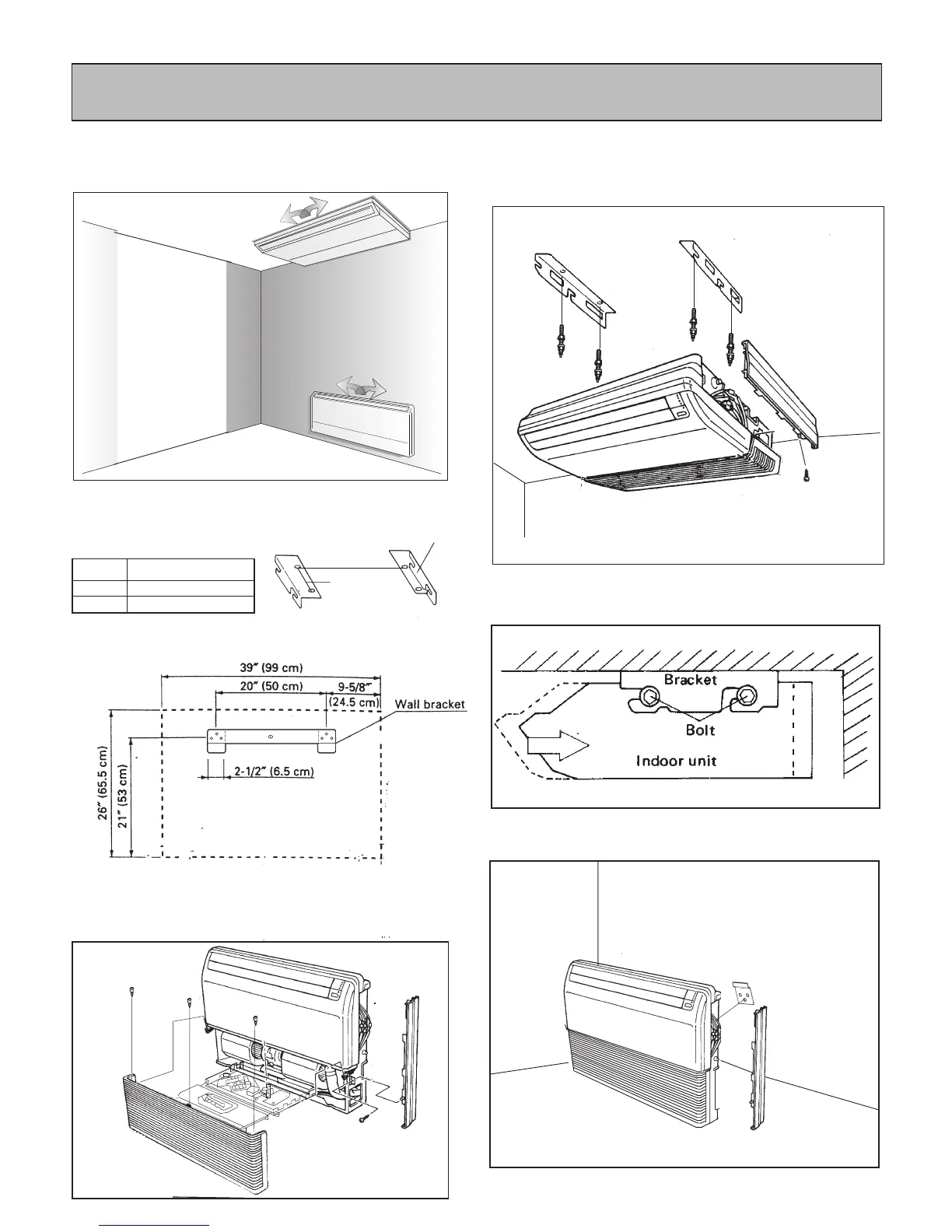

Installation Views
Unit installs easily under the ceiling or on the wall. After unit
is secure, side panels should be assembled again as shown.
side panel
installation screw
Under Ceiling
Slide the unit into the brackets as shown below.
B
5 - Installation (Cont'd)
