4
Unit installation entails:
- unit mounting
- refrigerant piping connections
- condensate water drainage connections
- unit wiring connections.

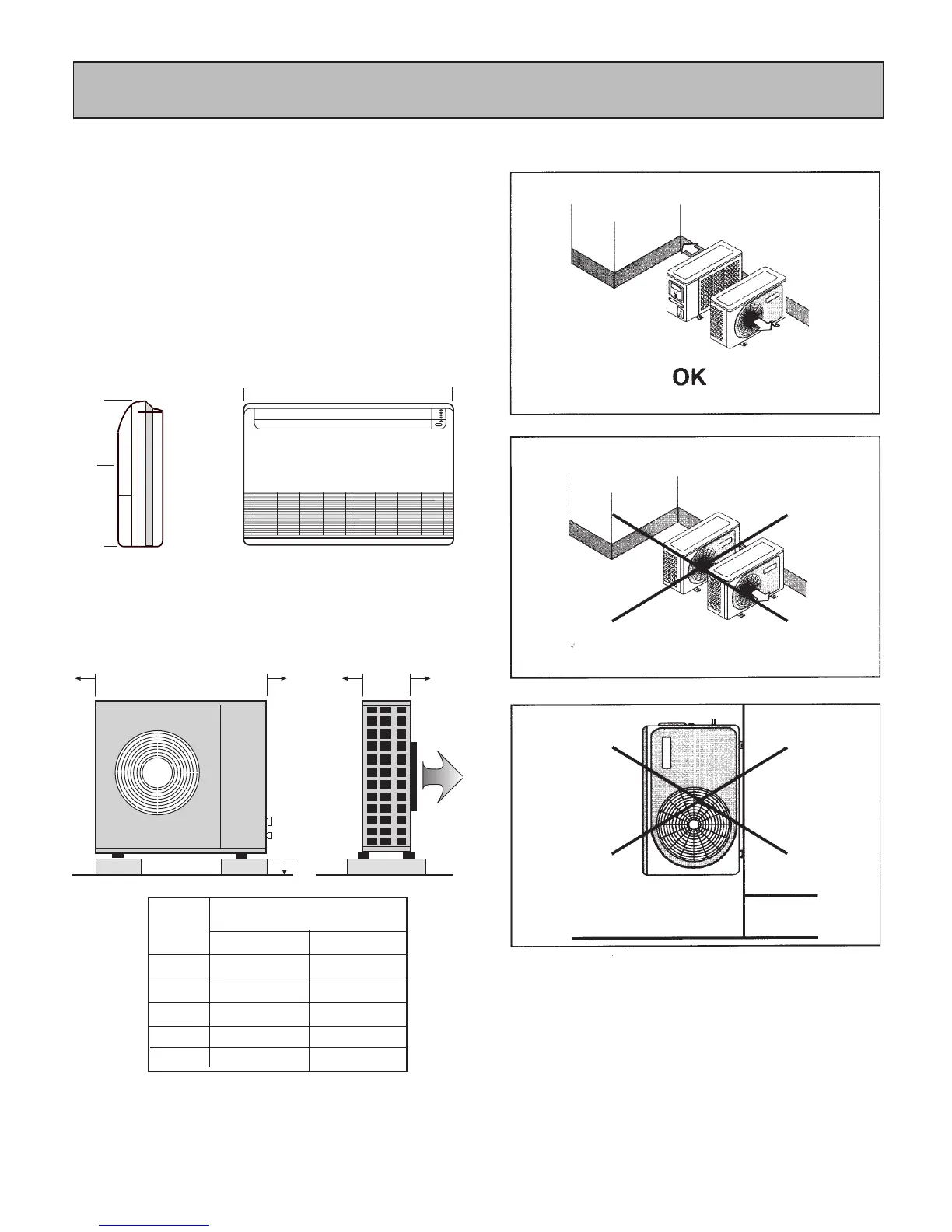

5.1 - Unit clearances
A minimium of clearance is necessary around the units to
ensure proper air circulation and easy access for maintenance.
Clearance required for indoor units
Clearance required for outdoor units
Outdoor unit placement
C
B EA D
Unit
A
B
C
D
E
09 to 18
400
200
100
200
600
25
400
200
100
250
600
MOC -MOH
↑
↓
←
→
200200
500
800
50
←
5 - Installation
