York PCG4A36 - Duct Dimensions and Installation; Bottom and Rear Duct Dimensions

5005562-YTG-A-0215
Johnson Controls Unitary Products 17

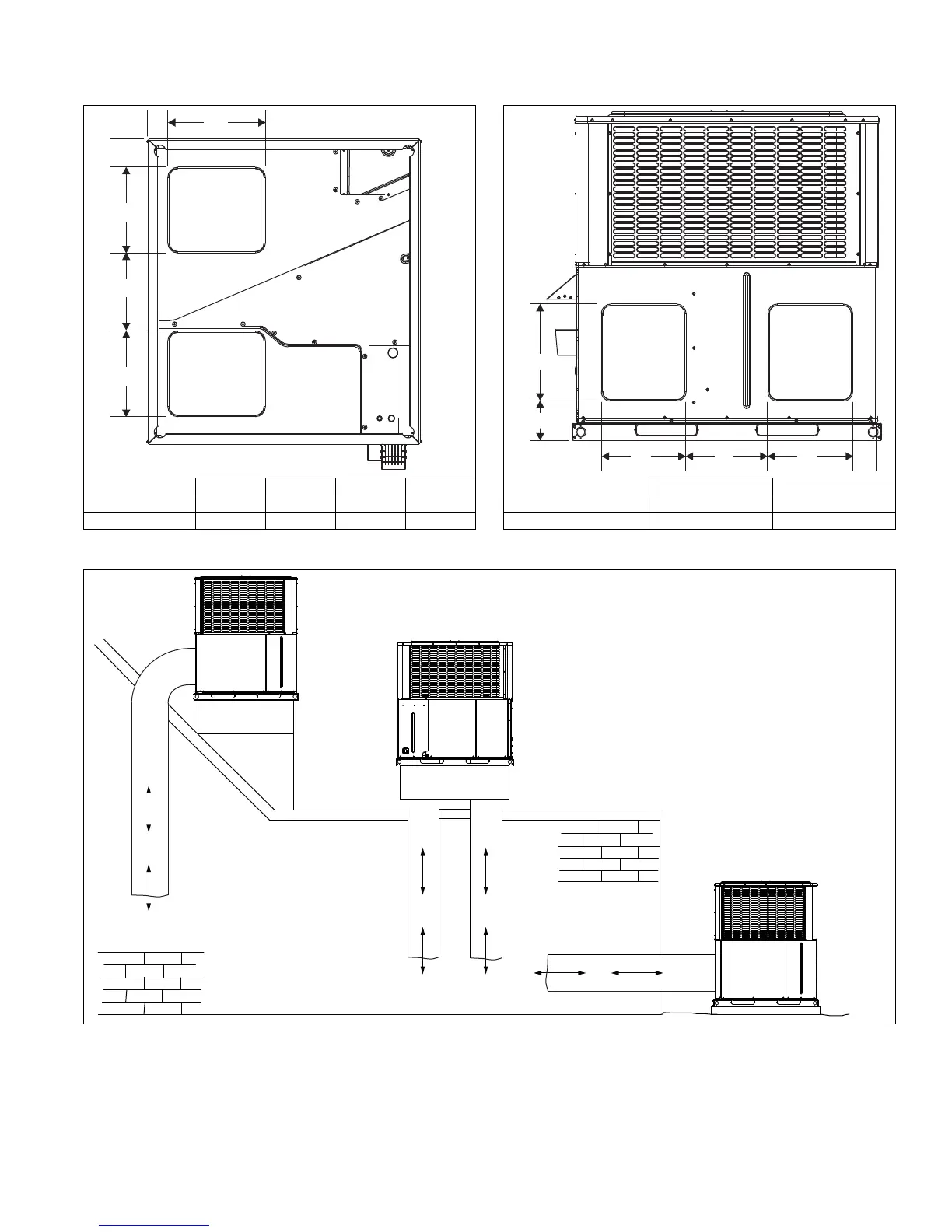

BOTTOM DUCT DIMENSIONS (Inches) REAR DUCT DIMENSIONS (Inches)
Model ABCD
24, 30, 36, 42 10 21.5 4.94 4.34
48, 60 14 13.5 5 3.56
D
16
C
A
B
A
A0298-001
Model A B
24, 30, 36, 42 9.6 22
48, 60 13.6 14
15.6
A
B
A
4.3
A0299-001
6
ROOF CURB
INSTALLATION
REAR DUCT
ROOF CURB
INSTALLATION
BOTTOM DUCT
SLAB ON
GROUND
INSTALLATION
A0324-001
