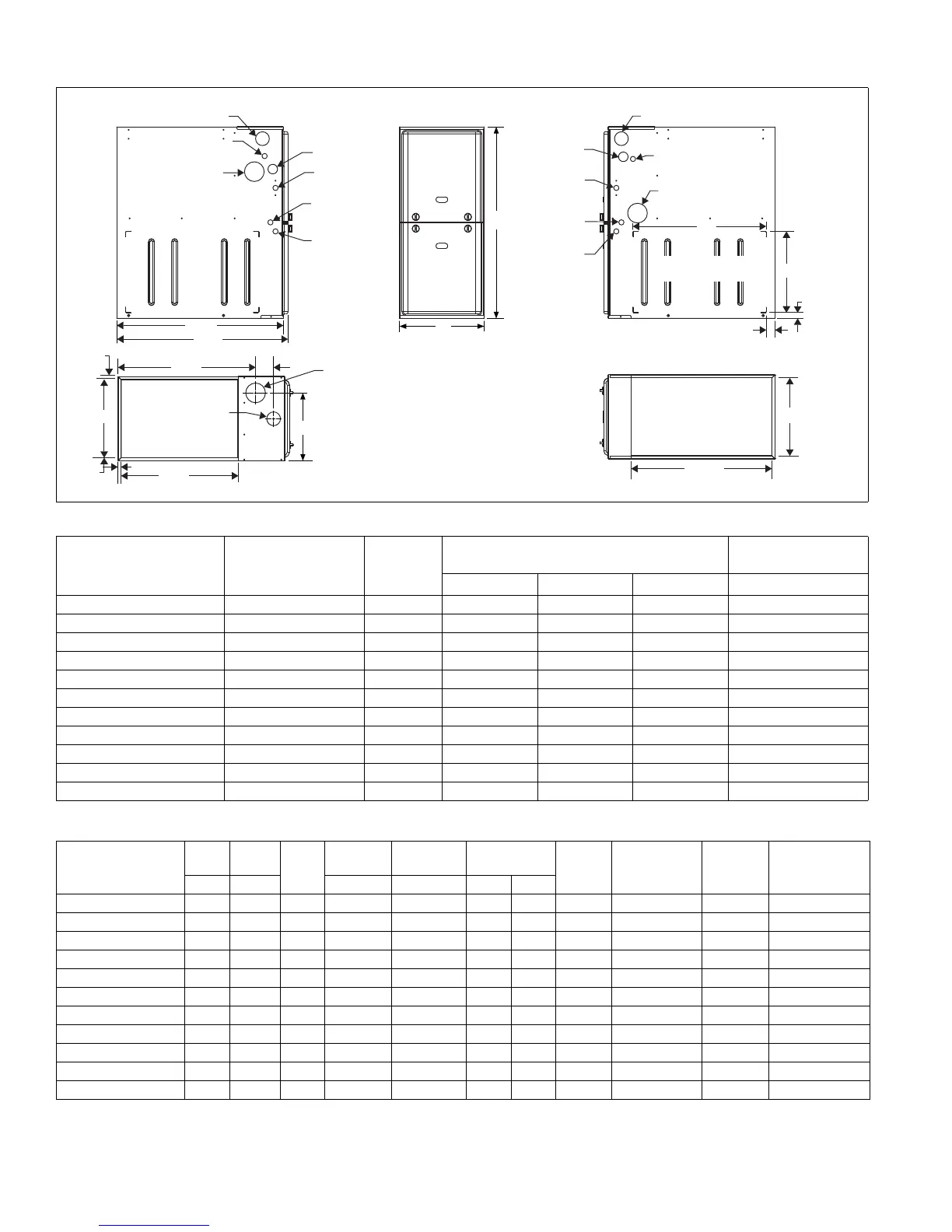

York TG9S - Cabinet & Duct Dimensions; Ratings & Physical; Electrical Data; Left Side; Right Side

400991-YTG-E-0210
2 Johnson Controls Unitary Products
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
The furnace shall be installed so that the electrical components are protected from water.
FRONT
33
A
LEFT SIDE
Combustion Air Inlet
Condensate Drain
(Downflow)
Vent Outlet
Thermostat
Wiring
28.5”
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Thermostat
Wiring
RIGHT SIDE
Vent Outlet
Condensate Drain
(Downflow)
14”
1”
1.5”
23”
Combustion Air Inlet
Gas Pipe
Entry
Electrical
Entry
Condensate
Drain
Optional Return Air
Cutout (Either side)
29.5”
C
SUPPLY END
.56”
.56”
20”
B
3”
23.8”
.56”
Combustion
Air Inlet
Vent
Outlet
RETURN END
B
24.25”
Cabinet & Duct Dimensions
Models
Nominal
CFM (m
3
/min)
Cabinet
Size
Cabinet Dimensions (Inches)
Approximate
Operating Weights
ABC Lbs
TG9S040A08MP11 800 A 14 1/2 13 3/8 11 3/4 113
TG9S060A10MP11 1000 A 14 1/2 13 3/8 11 3/4 118
TG9S060B12MP11 1200 B 17 1/2 16 3/8 13 1/4 122
TG9S080B12MP11 1200 B 17 1/2 16 3/8 14 3/4 126
TG9S080C16MP11 1600 C 21 19 7/8 16 1/2 136
TG9S080C22MP11 2200 C 21 19 7/8 16 1/2 139
TG9S100C16MP11 1600 C 21 19 7/8 18 1/4 142
TG9S100C20MP11 2000 C 21 19 7/8 18 1/4 145
TG9S120D16MP11 1600 D 24 1/2 23 3/8 21 3/4 153
TG9S120D20MP11 2000 D 24 1/2 23 3/8 21 3/4 156
TG9S130D20MP11 2000 D 24 1/2 23 3/8 No Hole 160
Ratings & Physical / Electrical Data
Models
Input Output
AFUE
%
Air Temp.
Rise
Max. Outlet
Air Temp
Blower
Blower
Size
Max
Over-Current
Protect
Total Unit
Amps
Min. wire Size
(awg) @ 75 ft
one way
MBH MBH °F °F HP Amps
TG9S040A08MP11 40 38 95.5 30-60 160 1/3 4.8 11x8 15 8.0 14
TG9S060A10MP11 60 57 95.5 30-60 160 1/2 7.1 11x8 15 10.0 14
TG9S060B12MP11 60 57 95.5 30-60 160 1/2 7.1 11x8 15 10.0 14
TG9S080B12MP11 80 76 95.5 35-65 165 1/2 7.1 11x8 15 10.0 14
TG9S080C16MP11 80 76 95.5 35-65 165 3/4 8.8 11x10 15 11.5 14
TG9S080C22MP11 80 76 95.5 35-65 165 1 14.5 11x11 20 17.0 12
TG9S100C16MP11 100 95 95.5 35-65 165 3/4 8.8 11x10 15 11.5 14
TG9S100C20MP11 100 95 95.5 35-65 165 1 14.5 11x11 20 17.0 12
TG9S120D16MP11 120 114 95.5 40-70 170 3/4 8.8 11x10 15 11.5 14
TG9S120D20MP11 120 114 95.5 35-65 165 1 14.5 11x11 20 17.0 12
TG9S130D20MP11 130 123.5 95.5 45-75 175 1 14.5 11x11 20 17.0 12
