SECTION 5 – TECHNICAL DATA
NOTE:
Placement on a level surface of free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable
operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airow
patterns and possible diminished performance. YORK’s unit controls will optimize operation without nuisance high-pressure safety cutouts;
however, the system designer must consider potential performance degradation. Recommended minimum clearances: front to wall – 2m;
rear to wall – 2m; cooler end to wall – 1.2m; coil end to wall – 2m; top – no obstructions allowed; distance between adjacent units – 3m.
No more than one adjacent wall may be higher than the unit. 1" nominal deection isolators (not shown) will increase overall unit height by
152mm.
NOTE: All dimensions are in mm unless specied otherwise.
DIMENSIONS – YCAL0033 (SI)
1126
BASE WIDTH
1272
1250
171
100
LEFT END
BOTTOM OF PANEL
22 TYP.
VIEW B-B
POWER: SINGLE POINT SUPPLY WITH TERMINAL BLOCK
483
274
216
51 VICTAULIC CONN
(typ)
B
B
394
TO ACCESS PANEL 340
211
325
211
325
51 DIA
(2) 76 X 38
RIGGING HOLES
BOTH ENDS
IN
OUT

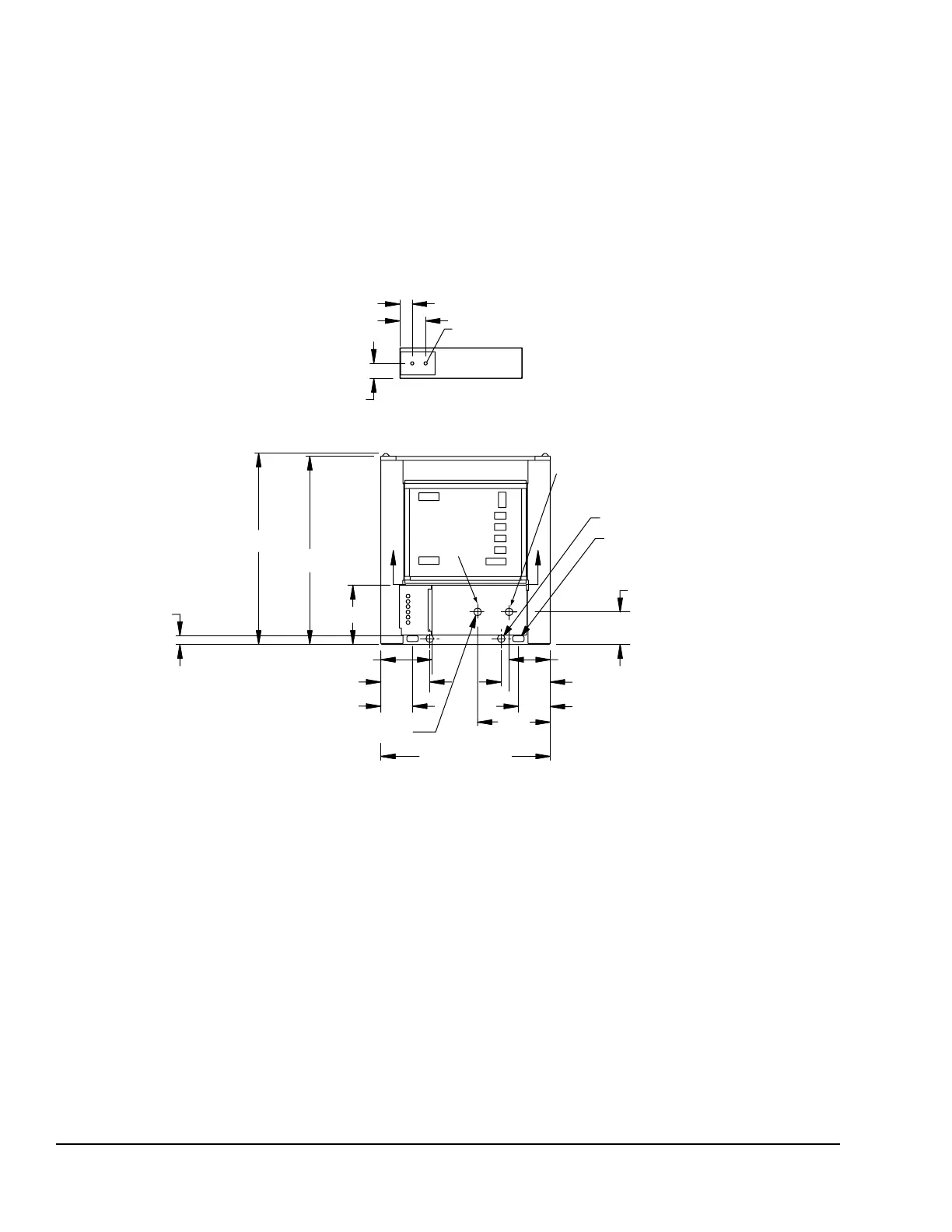

FIGURE 34 - DIMENSIONS - YCAL0033 (SI)
