FAN COMPONENTS
Fans
37970-01
Service Note:
Fan Hub to Shaft Joint should be
sealed with protective coating - use
RUST VETO 344 - a solvent type,
rust preventative coating.

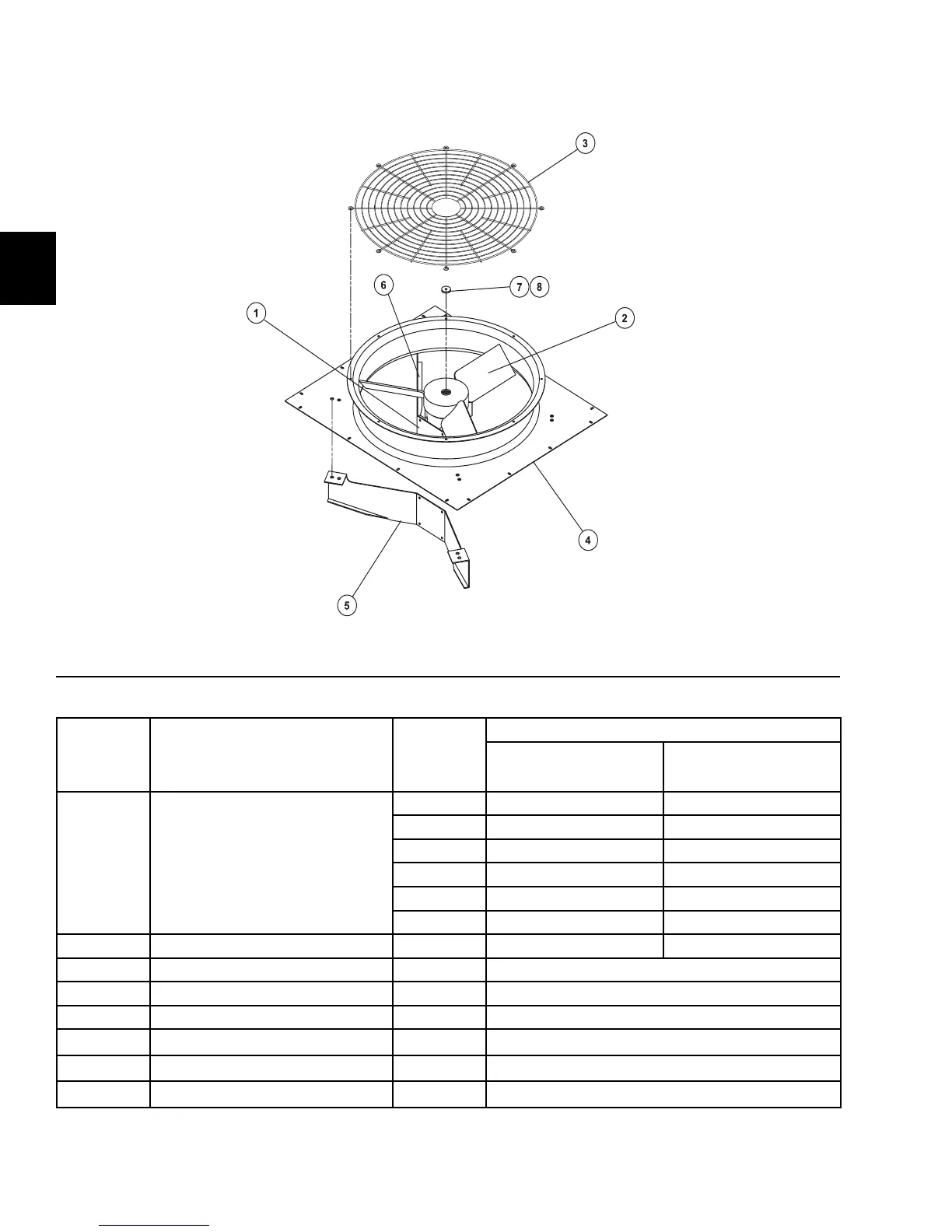

FIG. 2 – FAN COMPONENTS
TABLE 2 – FAN COMPONENTS
Service Note: Pin Location 52 in Model Number will be
“X” for Standard Fan, or “L” for Low Noise Fan.
See page 3.
S
= Recommended Spare Parts
ITEM
NUMBER
DESCRIPTION
VOLTAGE
CODE
FAN TYPE
STANDARD
7/8", 1160 RPM
LOW NOISE
7/8", 850 RPM
1
s
Motor, Fan
2 HP
(YCUL0016-YCUL0090)
-17 024-30900-002 024-30933-002
-28 024-30900-002 024-30933-002
-40 024-30900-004 024-30933-004
-46 024-30900-001 024-30933-001
-50 024-30900-001 024-30933-001
-58 024-30900-003 024-30933-003
2
s
Blade All 026-37577-000 026-37579-000
3 Guard All 026-35605-000
4 Orifi ce All 026-36760-000
5 Support, Inner All 075-29060-000
6 Support, Outer All 075-29061-000
7 Screw, Cap (M8x125) All 021-18494-000
8 Spacer 075-29007-000
