York YD A - FIGURE 12 - Motor Starter Temperature and Insulation Resistances

JOHNSON CONTROLS
44
FORM 160.69-O2
ISSUE DATE: 9/30/2020
SECTION 6 – MAINTENANCE
LD00476

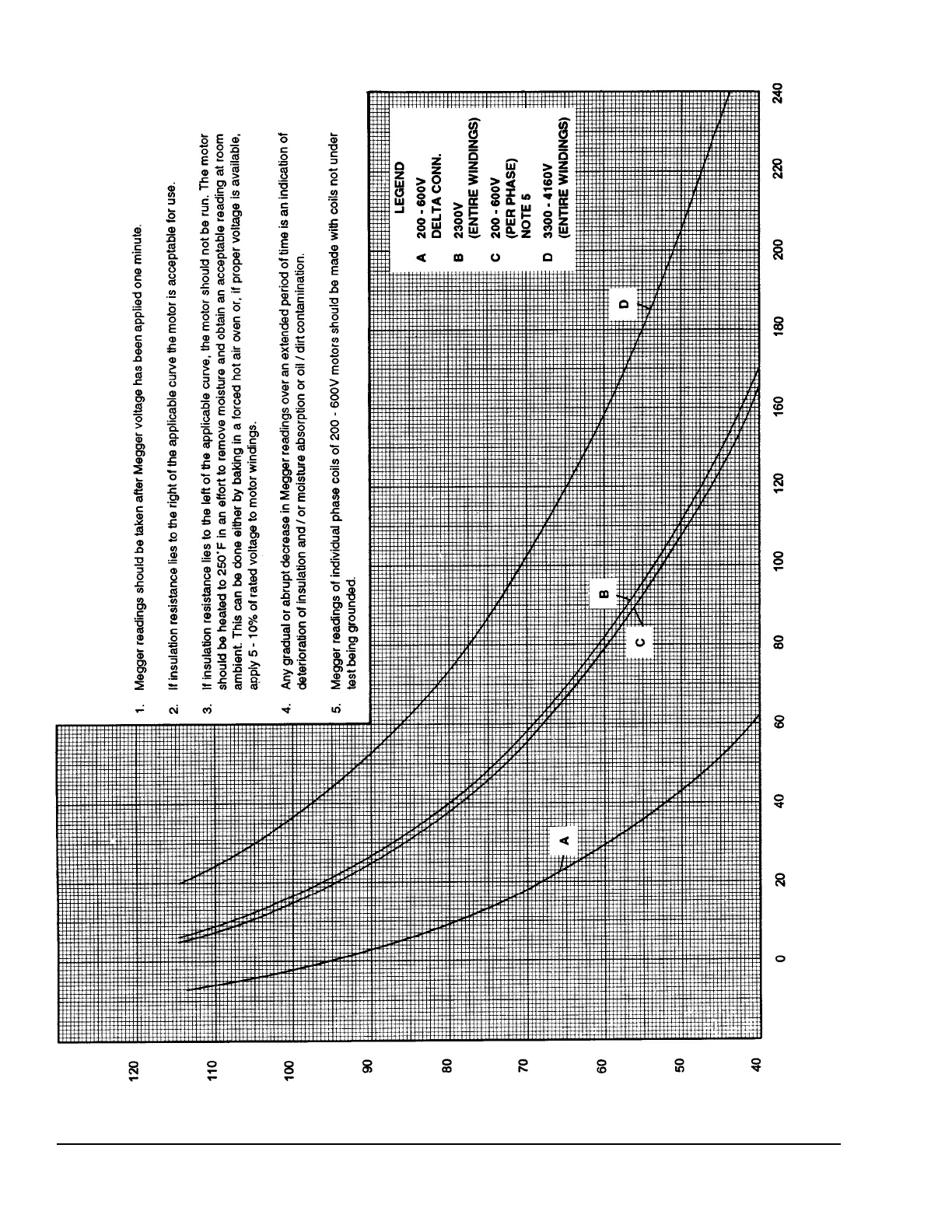

FIGURE 12 - MOTOR STARTER TEMPERATURE AND INSULATION RESISTANCES
Minimum Insulation Resistance vs. Temperature (per IEEE Std 43)
Open Motors
TEMPERATURE – °f
MEGOHMS
