York YP8C - Cabinet and Duct Dimensions; Cabinet Dimensions and Weights; Ratings and Electrical Data

402703-YTG-C-0409
2 Johnson Controls Unitary Products
Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures.
Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes.
LEFT SIDE
RIGHT SIDE
.5”
.5”
RETURN END
B
24.25”
30.25”
28.5”
Gas Pipe
Entry
Thermostat
Wiring
FRONT
14”
1”
1.5”
23”
SUPPLY END
C
24.38”
20”
.5”
B
Gas Pipe
Entry
Thermostat
Wiring
33”
A
.5”
Electrical
Entry
Electrical
Entry
Vent Connection
Outlet
Vent
Connection
Outlet
4” Diameter
Outlet
Vent Connection

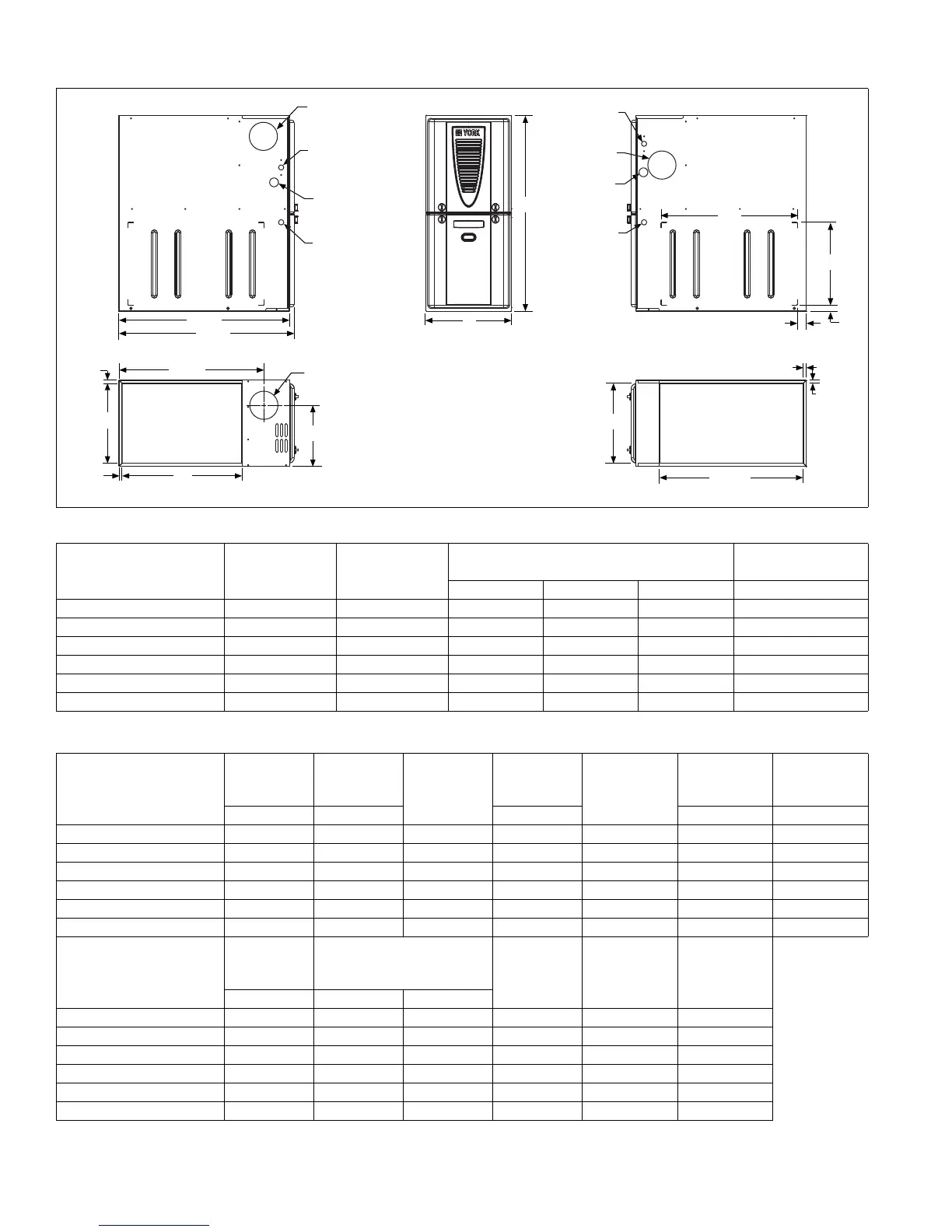

Cabinet and Duct Dimensions
Models
Nominal
CFM (m
3
/min)
Cabinet
Size
Cabinet Dimensions (Inches)
Approximate
Operating Weights
A B C Lbs
YP(8,L)C060A12MP11 1200 A 14 1/2 13 1/4 10.3 94
YP(8,L)C080B12MP11 1200 B 17 1/2 16 1/4 11.8 103
YP(8,L)C080C16MP11 1600 C 21 19 3/4 13.6 114
YP(8,L)C100C16MP11 1600 C 21 19 3/4 13.6 118
YP(8,L)C100C20MP11 2000 C 21 19 3/4 13.6 122
YP(8,L)C120C20MP11 2000 C 21 19 3/4 15.8 129
Ratings & Physical / Electrical Data
Models
Input
Max/Min
Output
Max/Min
AFUE
Nominal
Airflow
Total
Unit
Amps
Air Temp.
Rise Max
Input
Air Temp.
Rise Min
Input
MBH MBH CFM °F °F
YP(8,L)C060A12MP11 60/30 47/24 80.0 1200 7.0 30-60 20-50
YP(8,L)C080B12MP11 80/40 62/32 80.0 1200 7.5 40-70 20-50
YP(8,L)C080C16MP11 80/40 62/32 80.0 1600 10.0 35-65 20-50
YP(8,L)C100C16MP11 100/50 78/40 80.0 1600 10.0 35-65 20-50
YP(8,L)C100C20MP11 100/50 78/40 80.0 2000 12.0 35-65 20-50
YP(8,L)C120C20MP11 120/60 95/48 80.0 2000 12.0 45-75 25-55
Models
Max.
Outlet
Air Temp
Blower
Blower
Wheel
size
Max
Over-Current
Protect
Min. wire Size
(awg) @ 75 ft
one way
°F HP Amps
YP(8,L)C060A12MP11 160 1/2 4.8 11 x 8 15 14
YP(8,L)C080B12MP11 170 1/2 4.8 11 x 8 15 14
YP(8,L)C080C16MP11 165 3/4 7.5 11 x 10 15 14
YP(8,L)C100C16MP11 165 3/4 7.5 11 x 10 15 14
YP(8,L)C100C20MP11 165 1 14.5 11 x 11 20 12
YP(8,L)C120C20MP11 175 1 14.5 11 x 11 20 12
