York ZR SERIES Installation Manual

5167531-YIM-J-1019
10 Johnson Controls Ducted Systems

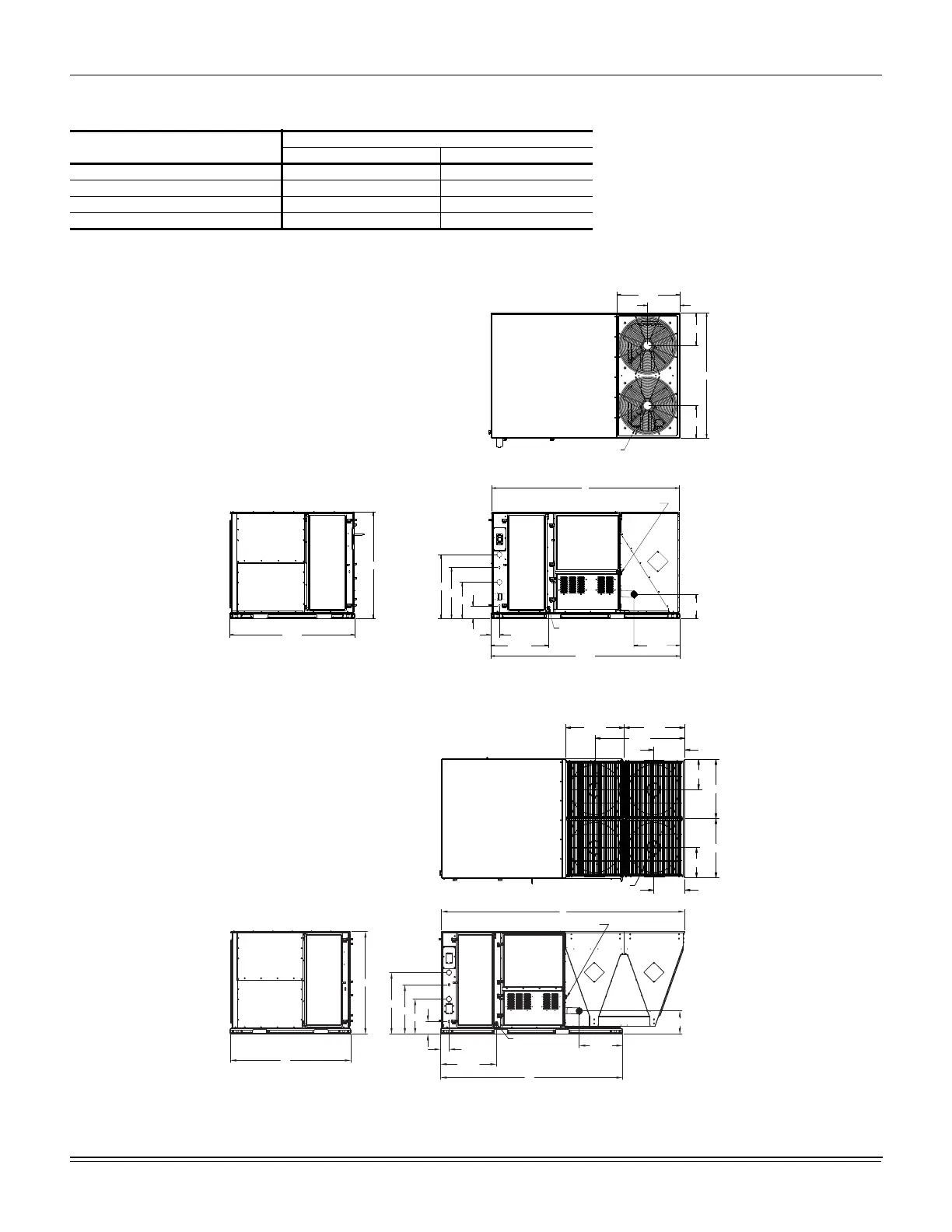

Figure 8: ZR078-120 physical dimensions
Figure 9: ZR150 physical dimensions
Table 4: ZR078-150 unit accessory weights
Unit accessory
Weight (lbs.)
Shipping Operating
Economizer 90 85
Power Exhaust 155 150
Electric Heat
1
80 80
Gas Heat
2
110 110
1. Weight given is for the maximum heater size available (54KW).
2. Weight given is for the maximum number of tube heat exchangers available (8 tube).
LEFT
A
59.00
C
D
E
F
4.19
27.31
89.00
21.19
11.38
15.38
59.00
15.38
29.69
15.25
FRONT
SEE DETAIL B
FOR DRAIN LOCATION
SEE DETAIL A FOR GAS INLET
B
2X Ø 24.38
15.23
29.03
14.85
29.03
14.85
15.23
28.86 29.66
44.09
Ø 24.58 TYP. 4 PL.
FRONT
See detail B for drain location
See detail A for gas inlet
C
D
E
F
B
4 3/16
27 5/16
89
21 3/16
11 3/8
A
LEFT
59
