5167531-YIM-J-1019
Johnson Controls Ducted Systems 9
Units may be moved or lifted with a forklift. Slotted openings in
the base rails are provided for this purpose.
THE LENGTH OF THE FORKS MUST BE A MINIMUM OF 60
INCHES.

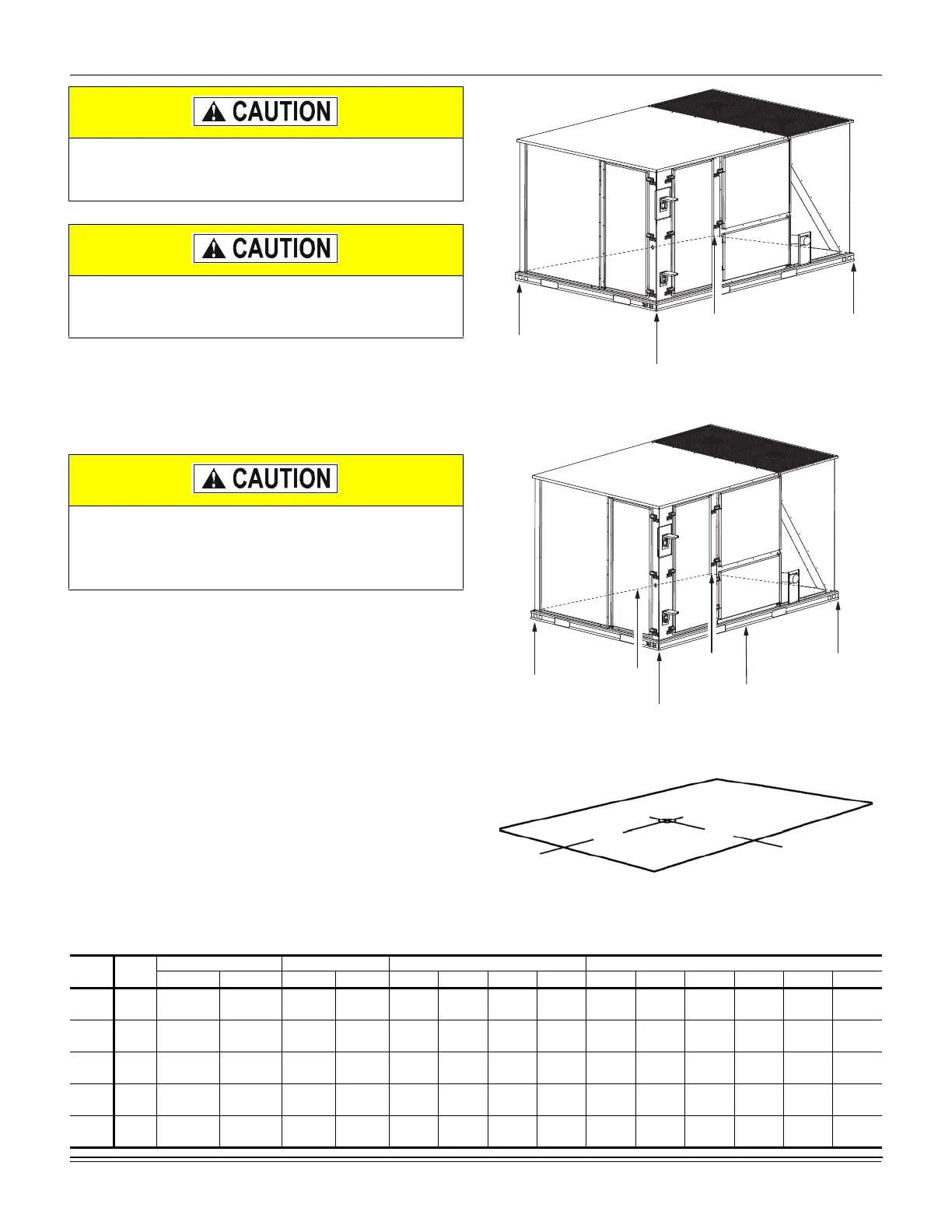

Figure 5: Unit 4 point load weight
Figure 6: Unit 6 point load weight
Figure 7: Center of gravity
If a unit is installed on a roof curb other than a York
®
roof
curb, you must apply gasketing to all surfaces that come
in contact with the unit underside.
Before lifting the unit, make sure that the unit weight is
distributed equally on the rigging cables so that it lifts
evenly.
All panels must be secured in place when the unit is
lifted.
The condenser coils must be protected from rigging
cable damage with plywood or other suitable material.
Table 3: Weights and dimensions
Size
(tons)
Model
Weight (lbs.) Center of gravity 4 point load location (lbs.) 6 point load location (lbs.)
ShippingOperatingX Y ABCDABCDEF
078
(6.5)
ZR 962 957 38 23 214 159 249 335 150 122 101 159 191 234
090
(7.5)
ZR 970 965 38 23 216 161 251 337 151 123 102 160 193 236
102
(8.5)
ZR 1205 1200 38 25.5 297 221 291 390 208 170 141 185 223 274
120
(10)
ZR 1205 1200 38 25.5 297 221 291 390 208 170 141 185 223 274
150
(12.5)
ZR 1470 1465 51 25.5 270 363 477 355 172 207 254 334 272 226
