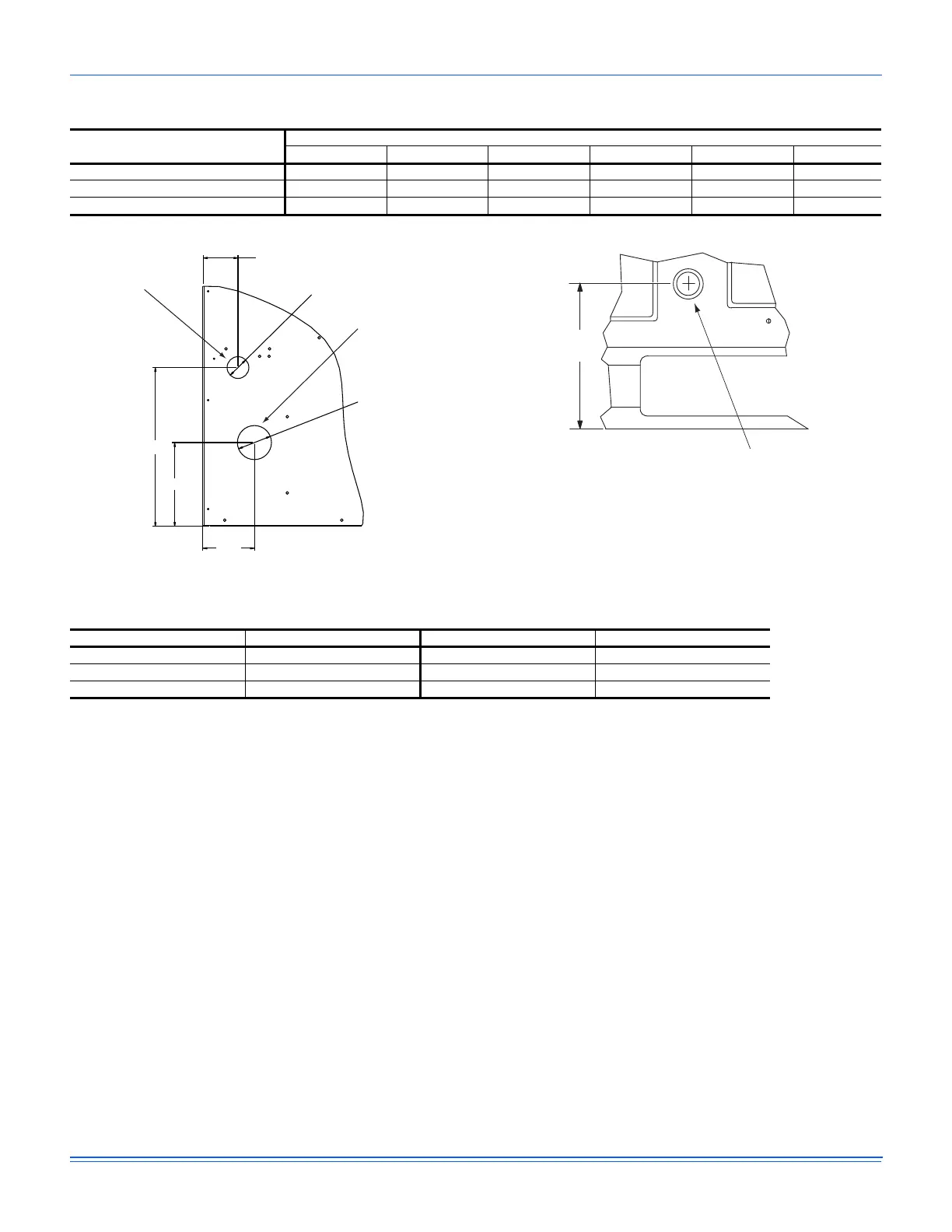

York ZW-06 - Thru -12 Unit Physical Dimensions; Thru -12 Unit Clearances

5565604-BIM-B-1018
Johnson Controls Ducted Systems 11
Detail A
Detail B
Table 4: ZW-06 thru -12 Unit Physical Dimensions
Unit Model Number
Dimension (in.)
ABCDEF
ZW-06 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZW-07 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZW-08 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZW-10 50 3/4 89 30 3/16 24 3/16 17 3/16 6 3/16
ZW-12 50 3/4 119 1/2 30 3/16 24 3/16 17 3/16 6 3/16
42” CABINET
Ø 3.126
Ø 2.000
3.184
4.727
7.705
14.594
Gas Pipe Inlet
Gas Exhaust Vent
50 3/4” CABINET
Ø 3.126
Ø 2.000
3.184
4.737
7.715
17.541
Gas Pipe Inlet
Gas Exhaust Vent
5-3/8
1” FPT
Table 5: ZW-06 thru -12 Unit Clearances
Direction Distance (in.) Direction Distance (in.)
Top
1
1. Units must be installed outdoors. Over hanging structure or shrubs should not obscure condenser air discharge outlet.
72 Right 12
Front 36 Left 36
Rear 36 Bottom
2
2. Units may be installed on combustable floors made from wood or class A, B or C roof covering materials.
0
