York ZW-06 - Side Duct Dimensions; Unit Side Duct Openings; Thru -12 Unit Left;End Duct Opening

5565604-BIM-B-1018
14 Johnson Controls Ducted Systems

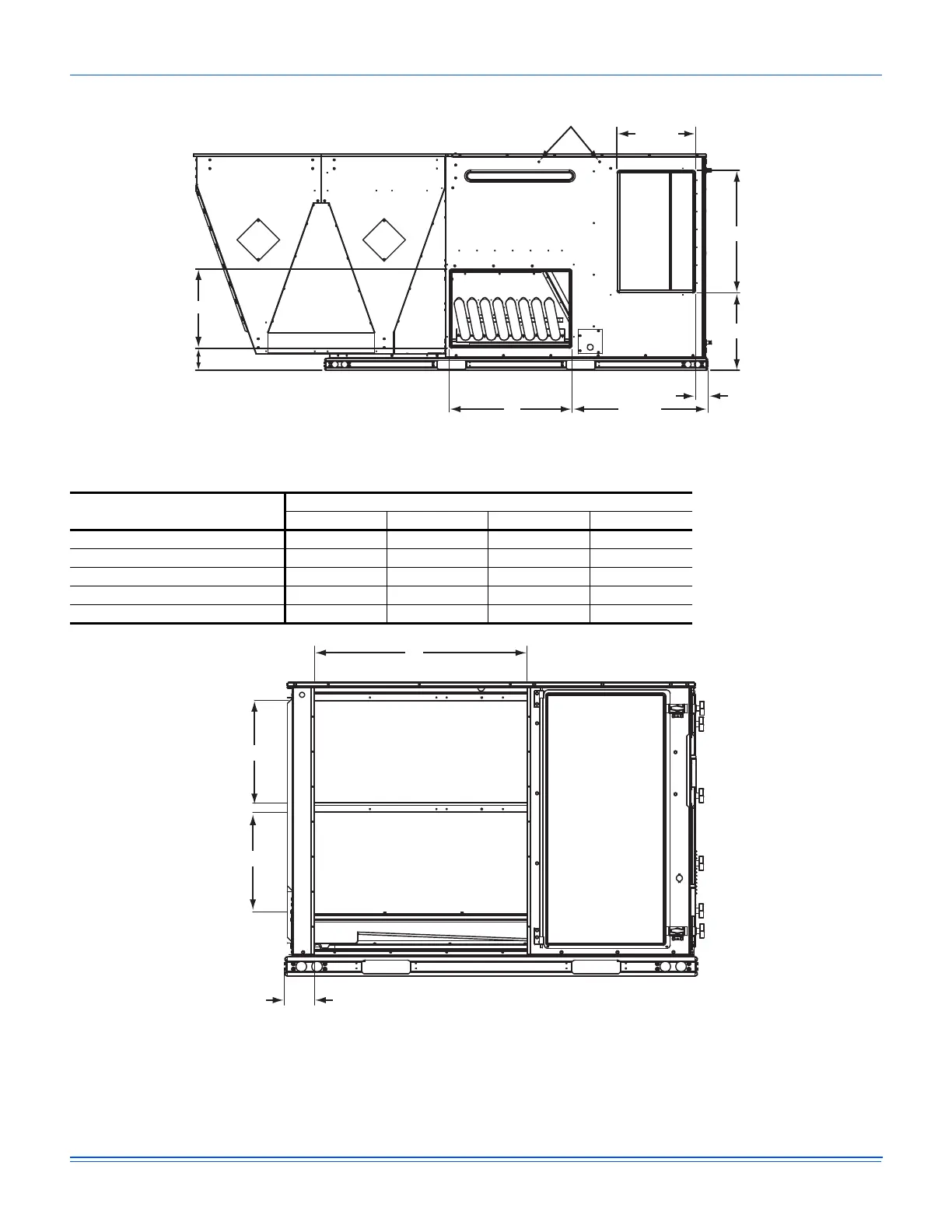

Figure 13: ZW-12 Unit Side Duct Openings
Figure 14: ZW-06 thru -12 Unit Left/End Duct Opening
Dot Plugs
2-7/8
5-5/32
D
C
31-5/8
18-1/4
B
A
Table 6: Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
ZW-06 28 1/4 18 1/16 28 1/4 18 1/4
ZW-07 28 1/4 18 1/16 28 1/4 18 1/4
ZW-08 28 1/4 18 1/16 28 1/4 18 1/4
ZW-10 28 1/4 18 1/16 28 1/4 18 1/4
ZW-12 28 1/4 18 1/16 28 1/4 18 1/4
4-5/16
A
C
B
