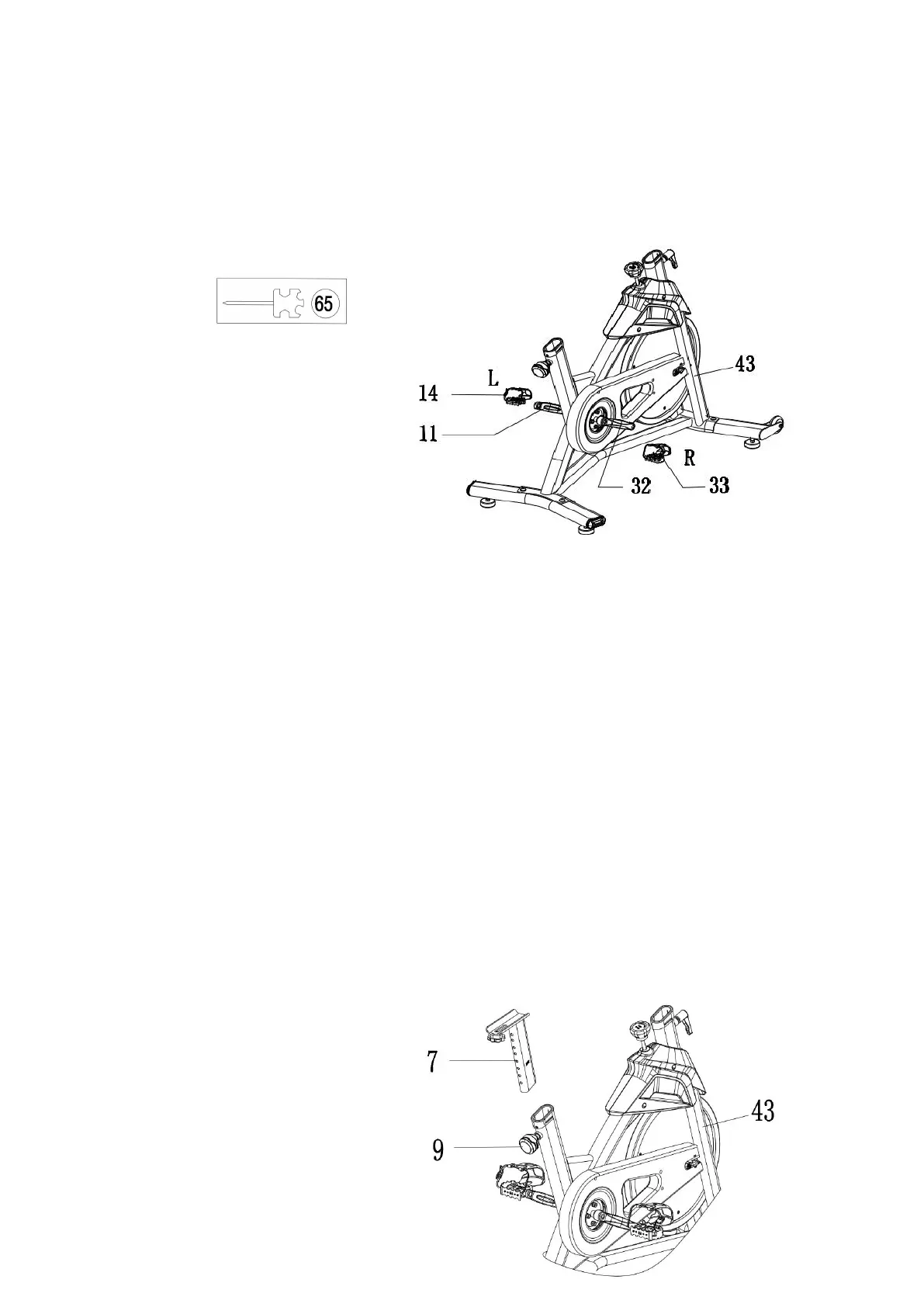

3. Align the #33-Right Pedal with the #32-Right Crank at 90°. Turn the pedal bolt on the #33-
Right Crank CLOCKWISE as tightly as you can with your hand. Then use #65- Allen Wrench
to tighten and secure.
Step 3: Install the Adjustable Seat Post
Required parts:
#7 - Seat post #9 - Adjustment Pull Pin 1PC
1.The #9- Adjustment Pull Pin holds the seat at the correct height. The pull pin aligns the
height with a hole in the #7 - Seat post.
2.Unscrew #9 - Adjustment Pull Pin counter-clockwise until you can pull on it and the seat
tube is clear to insert #7 - Seat post.
3.Insert #7 - Seat post into the seat tube of #43 - Frame while pulling the #9 - Adjustment
Pull Pin to allow it in.
4.Adjust the seat height to a suitable location and release the pin into the closest notch hole
and screw down clockwise to tighten.
