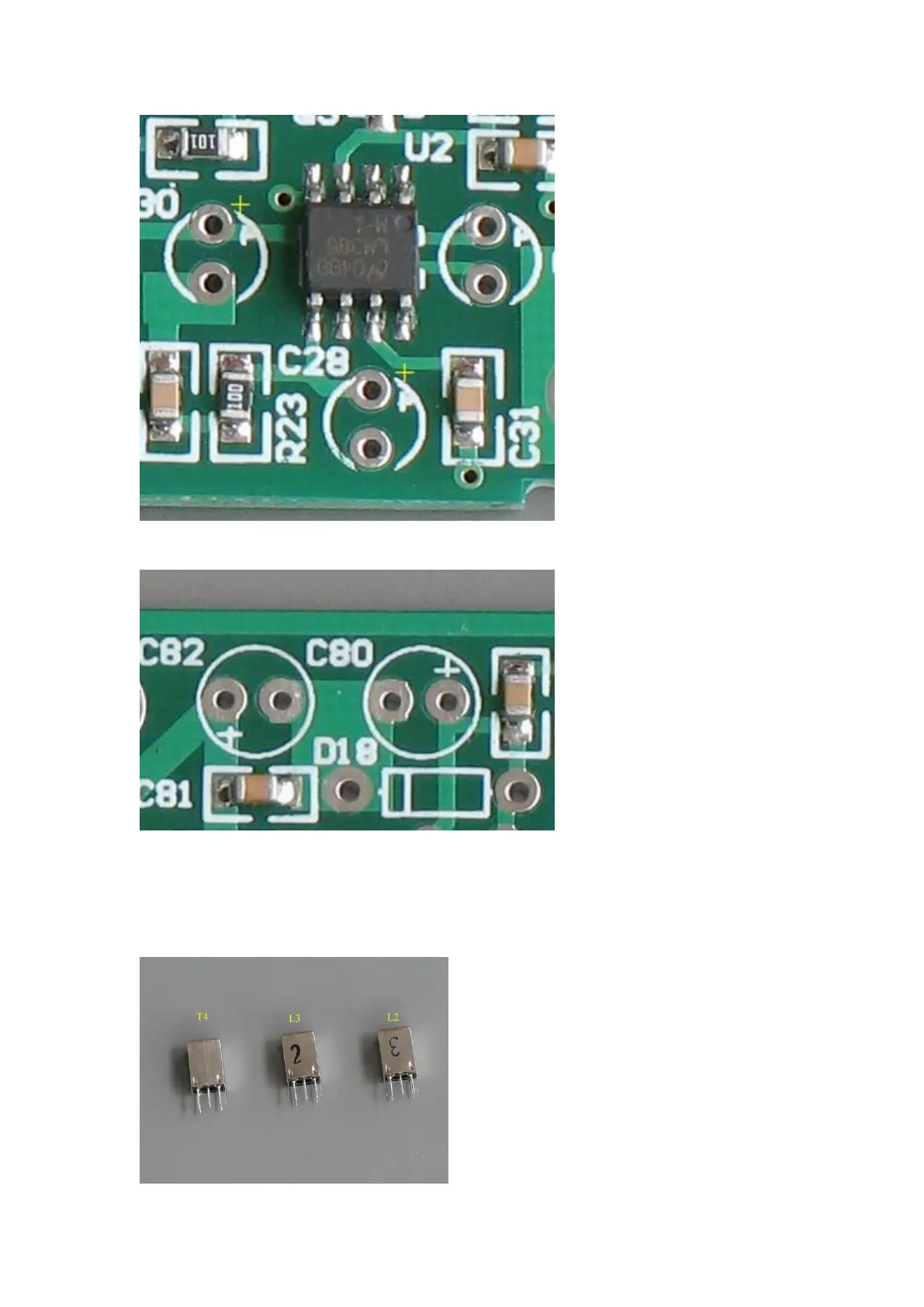

Notice "+" symbol.
8) Solder the 9 MHz crystals on main board Y1 - Y5 pads.
9) Solder the can inductors to the main board. The can without any number is for T4; the
can labeled (3) is for L2; and the can labeled (2) is for L3.
