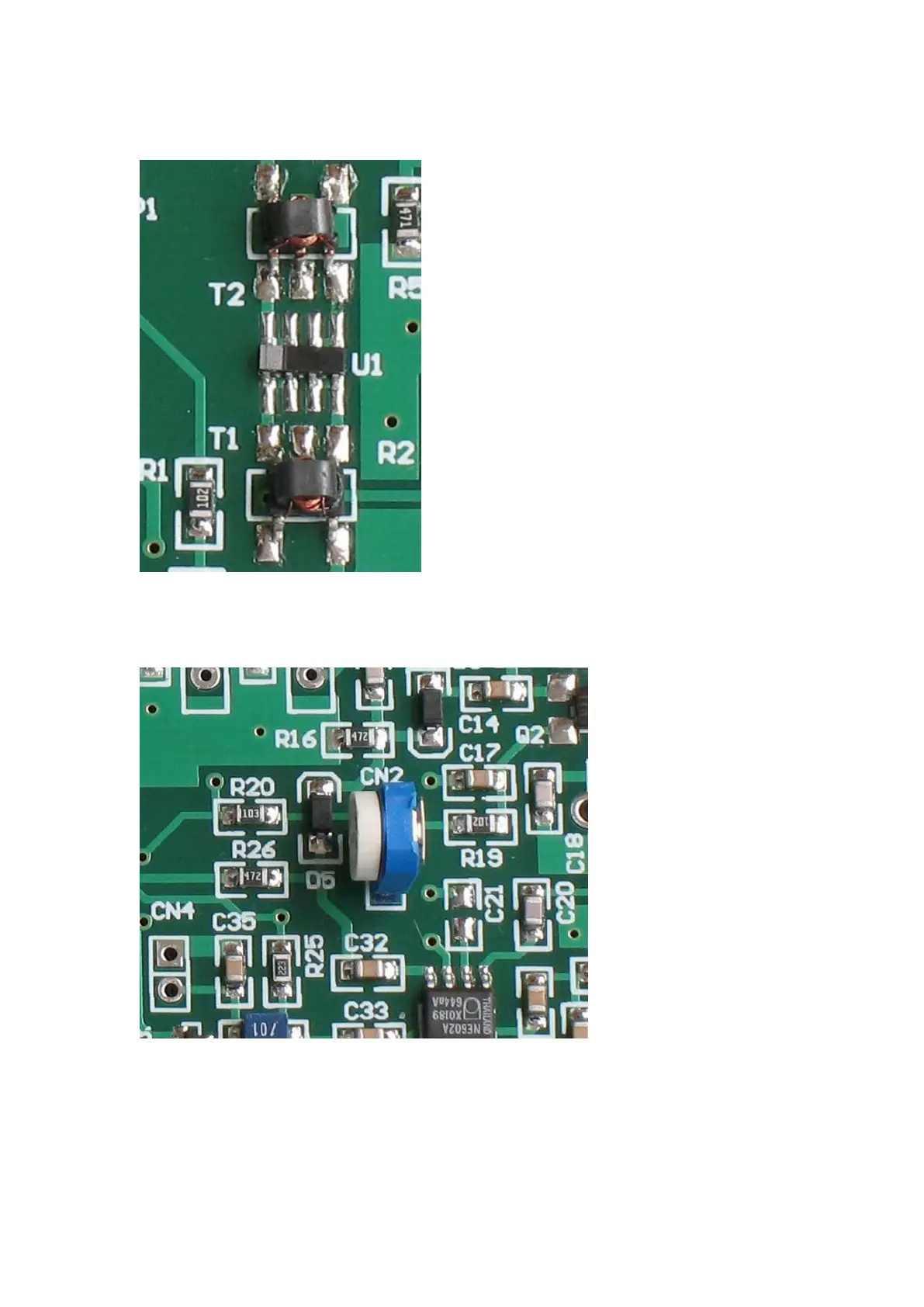

10) Solder T1, T2, T3, T5, T6. These are miniature transformers. One of them is used on
the DDS Unit.
11) Assemble the 10k trimmer on the CN2 pads. Adjust the leads so that they fit the pads.
