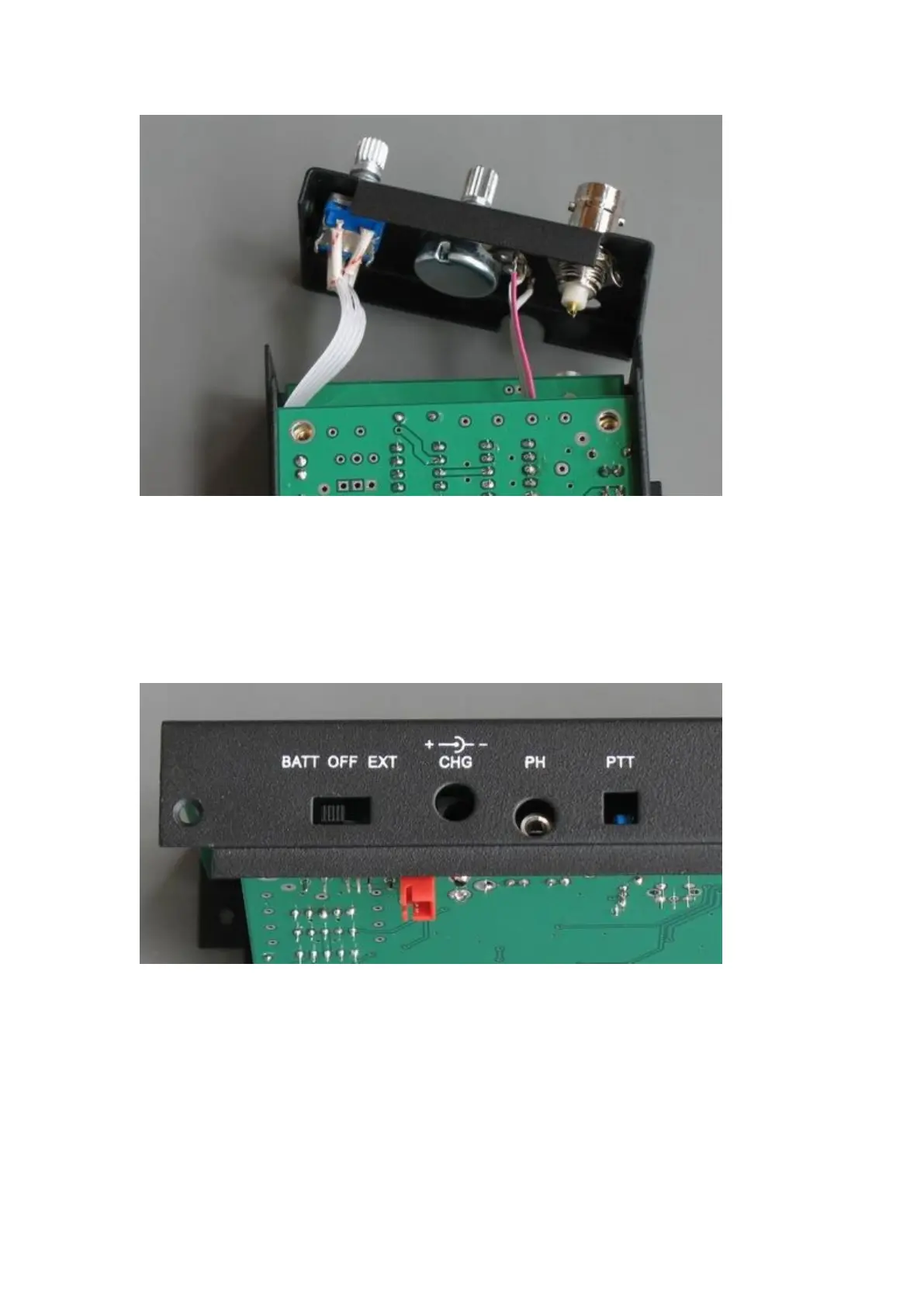

Fasten the encoder, AF GAIN POT, ANT socket to the top cover, but do not assemble the
cover to the enclosure.
Slantly slide in the main board, with the power switch handle aligned with the opening on
the side.
