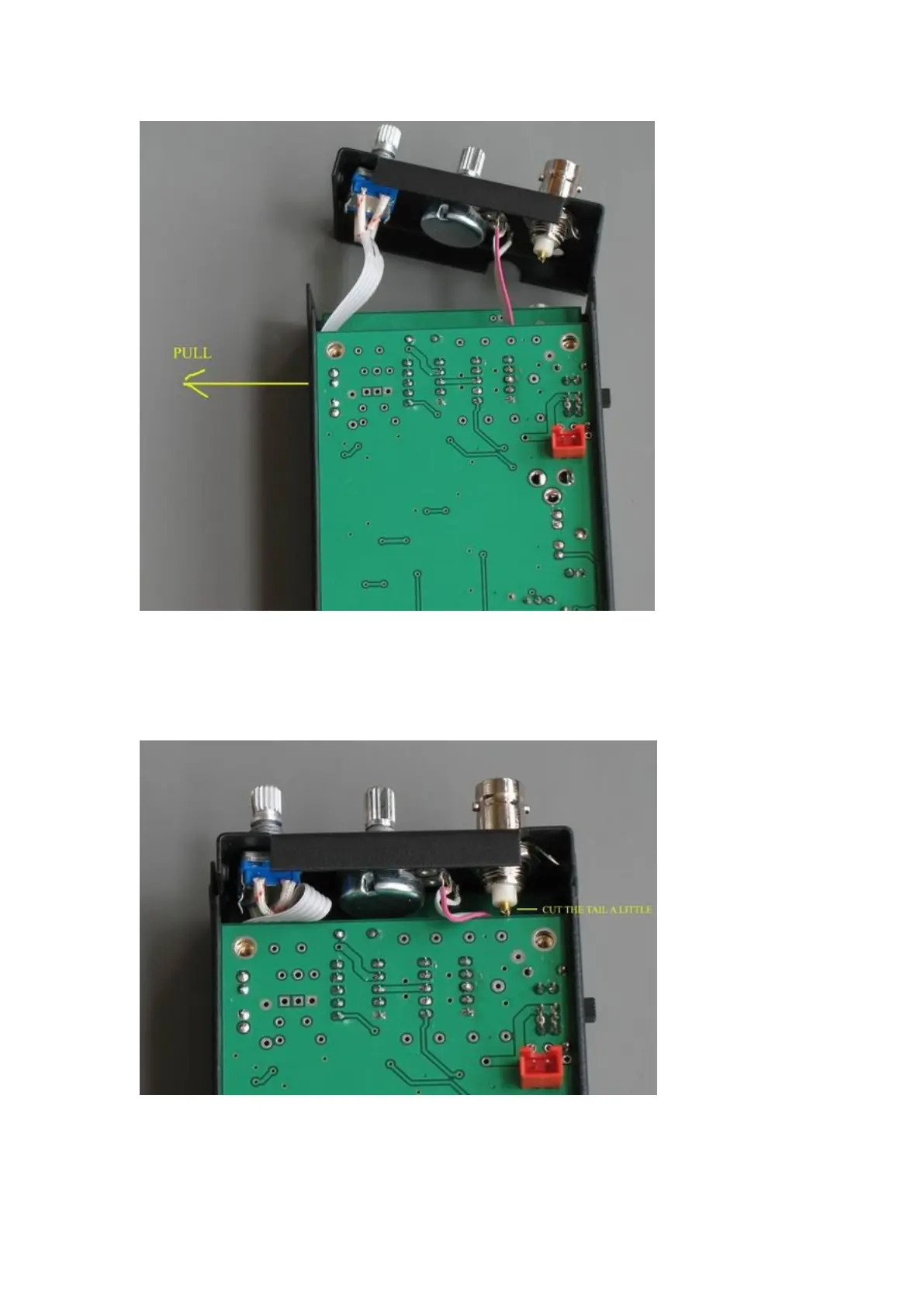

The enclosuer side wall blocks the main board a little, because of the DC12V socket.
Pull the enclosure edge, and press the main board at the same time, so that the main
board goes into the enclosure.
The ANT socket tail may be a little longer. Cut the tail to fit the space. Fasten the cover to
the enclosure walls.
