Step 2: Fitting the Platform
12
3. Grip the platform along its sides and place it on RUNG 3 on both left and right
frames ensuring the platform location brackets sit over the rung and sit inside the
location bracket guides on the rung.

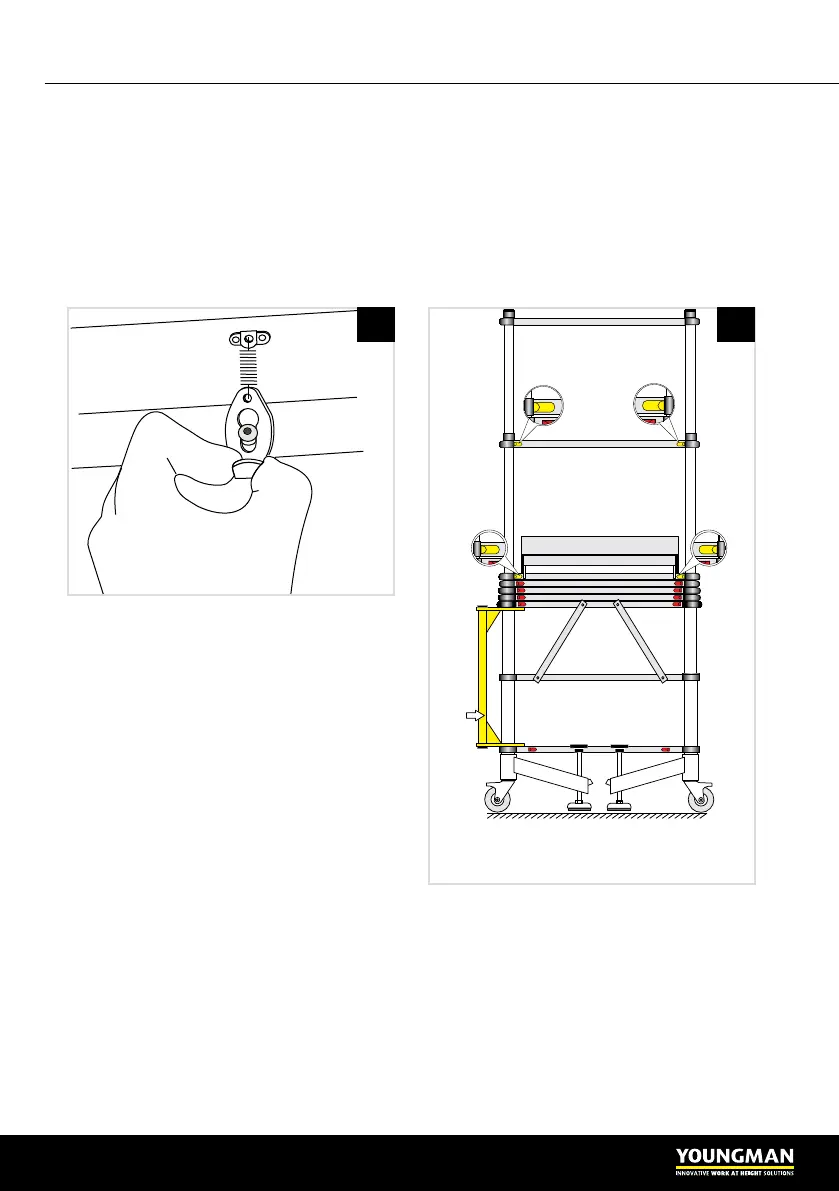

4. The platform has two spring-loaded safety catches located one at each end on
the underside which when set secures the platform to RUNG 3, see Figure 2.4.
Pull the tab onto the locking pin on each RUNG 3.
5. The platform level is 1 metre, see Figure 2.5.
RUNG 3
PLATFORM
LOCK
PLATFORM
PLATFORM
TOE BOARD
LOCKING
GATE
RUNG 9
RUNG 8
KNEERAIL
LOCKED
KNEERAIL
LOCKED
RUNG 3
RUNG 4
RUNG 5
RUNG 6
RUNG 7
HANDRAIL
RUNG 2
KNEERAIL
HANDRAIL
LOCKED
HANDRAIL
LOCKED
2.4 2.5
