Step 1: Erecting the Safety Cage
8
This procedure starts from when the Tower is in its fully collapsed arrangement,
with castors fitted as in Figure 1.1.
1. Ensure the castors are unlocked and the wheels are free to rotate.
2. Release the two fabric straps fastened around the legs of the assembly that
hold the two frames together.
3. While keeping the frames together at the back,
push the front legs slightly apart as shown in
Figure 1.2.
4. Lift and withdraw the folded platform and put it
to one side.
5. Unfold the Tower and straighten the yellow gate
keeping the side frames parallel until the gate
locks. You will hear it click-lock. Check that the
gate is locked.
6. Swing the two side frames so they are each at
90 degrees to the gate and then lock the four
castors by using your foot to push the locking
lever down on all four castors.
RUNG 7
RUNG 9
RUNG 8
RUNG 1
RUNG 3
RUNG 4
RUNG 5
RUNG 6
RUNG 2
LOCKING
GATE
ADJUSTABLE HAND-RAIL
ADJUSTABLE KNEE-RAIL
Not Locked

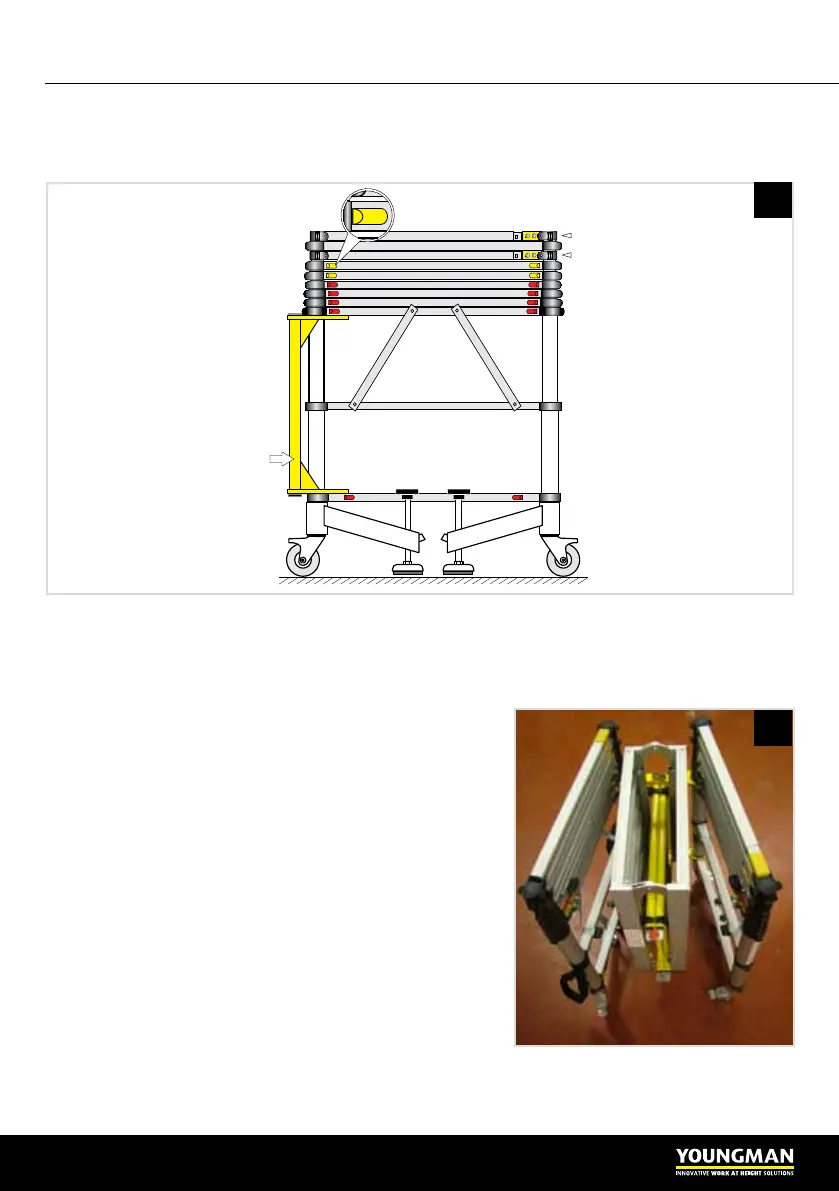

1.2
1.1
