Components Identified
Youngman Telescopic Tower User Manual
All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, translated or stored in a retrieval
system in any form by any means without the written permission of Youngman® Limited. Technical details contained in this
publication are correct for the equipment model numbers supplied. The Instruction and Reference Manual will be revised
as necessary for subsequent revisions to the equipment. This information will also be published on our website.
Copyright Youngman® 2012.
28
2
3
4
5
6
7
8
9
10
12
14
11
26
21
4
24
25
23
22
20
19
27
17
18
1
15
16
6
5
13
29
7

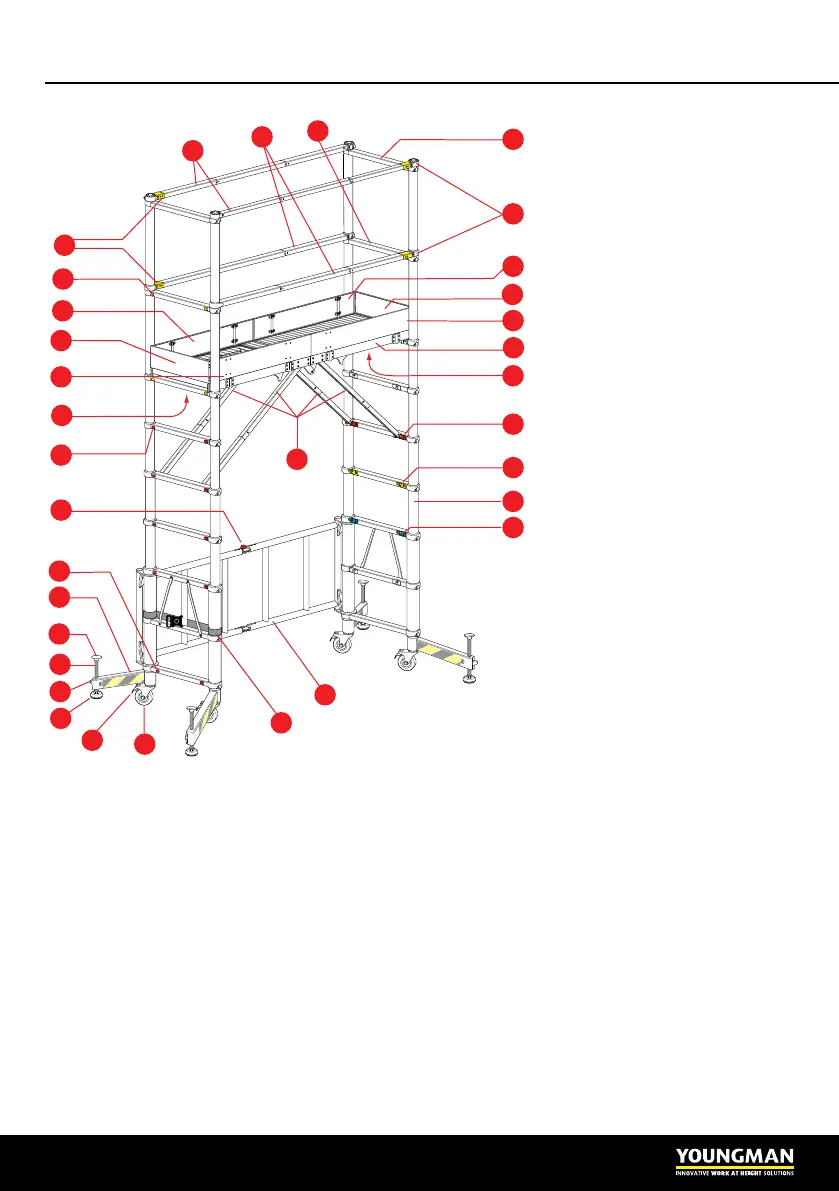

1. Front/rear hand rails
2. Guard rail latch
3. Spring loaded lock/release button (yellow)
4. Front and rear toe boards (short)
5 Side toe board
6 Front and rear toe boards (long)
7 Platform locking catch
8. Spring loaded lock/release button (red)
9. Gate lock release button
10. Ground stabiliser positioning red release button
11. Ground stabiliser
12. Ground stabiliser adjuster
13. Ground stabiliser bar
14. Ground stabiliser bar release lever
15. Foot
16. Castor lock lever
17. Castor
18. Stowage/transport securing straps
19. Platform stabiliser bars
20. Folding gate
21. Platform stabiliser bracket (blue)
22. Stile
23. Platform stabiliser bracket (yellow)
24. Platform stabiliser bracket (red)
25. Platform
26. Hand rail / knee rail swivel anchors
27. Side hand-rail
28. Side knee-rail
29. Front/rear knee-rails
