Step 5: Setting the Platform Height
17
Platform Height 1.00 Metre

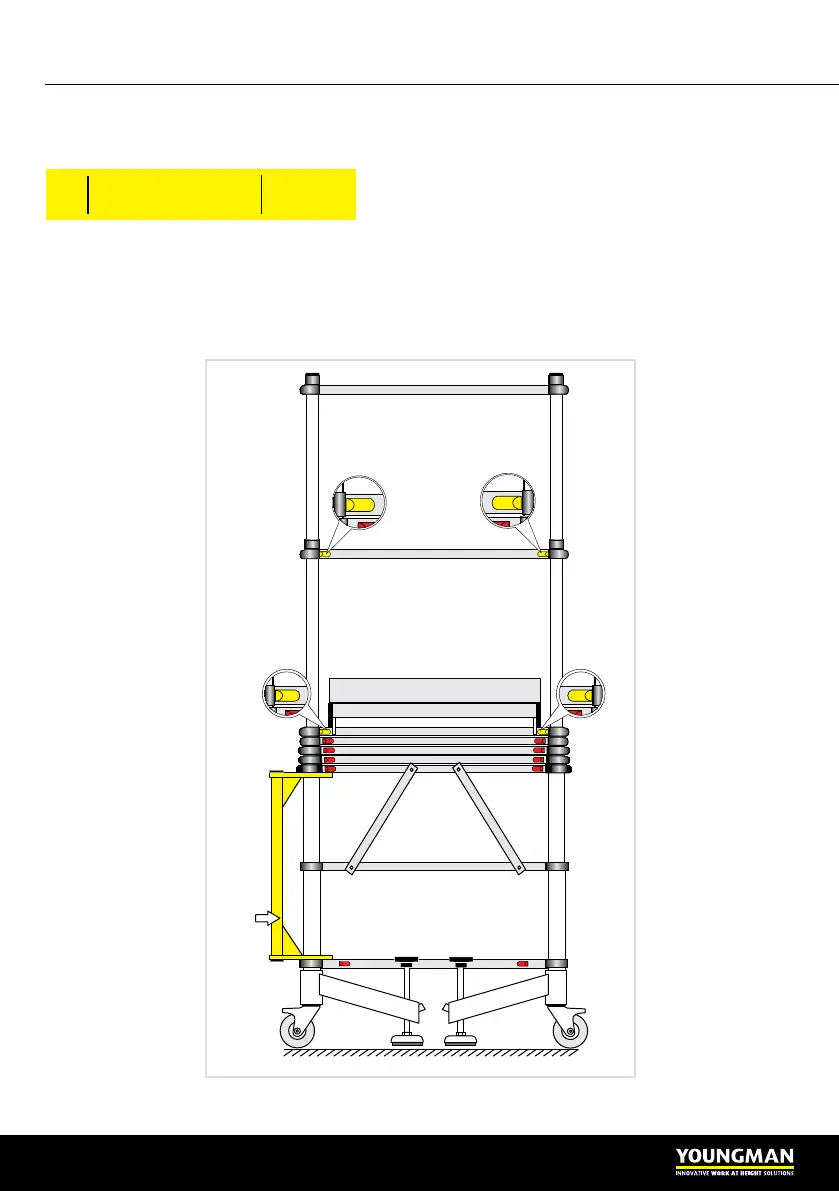

1. Erect the Safety Cage as described on pages 8 to 10. Refer to the diagram below.
2. Attach the Platform to RUNG 3 as described on page 11 and 12.
3. Fit the Toe boards as described on page 13.
4. Deploy the ground stabiliser legs as described on page 7.
PLATFORM
TOE BOARD
LOCKING
GATE
RUNG 9
RUNG 8
KNEERAIL
LOCKED
KNEERAIL
LOCKED
RUNG 3
RUNG 4
RUNG 5
RUNG 6
RUNG 7
HANDRAIL
RUNG 2
KNEERAIL
HANDRAIL
LOCKED
HANDRAIL
LOCKED
Always Place Platform
at this Level
3
Rung
1.00m
To Next Page
