YSOFT SAFEQ USB CARD READER V2 – ADMINISTRATOR’S GUIDE V1.2 [EN] 12/22
4.2 CARD READER CONFIGURATION SCREEN
When administrator selects the number of the reader from the reader list, the reader configuration screens will
be shown with general information about reader and following steps for next administration:

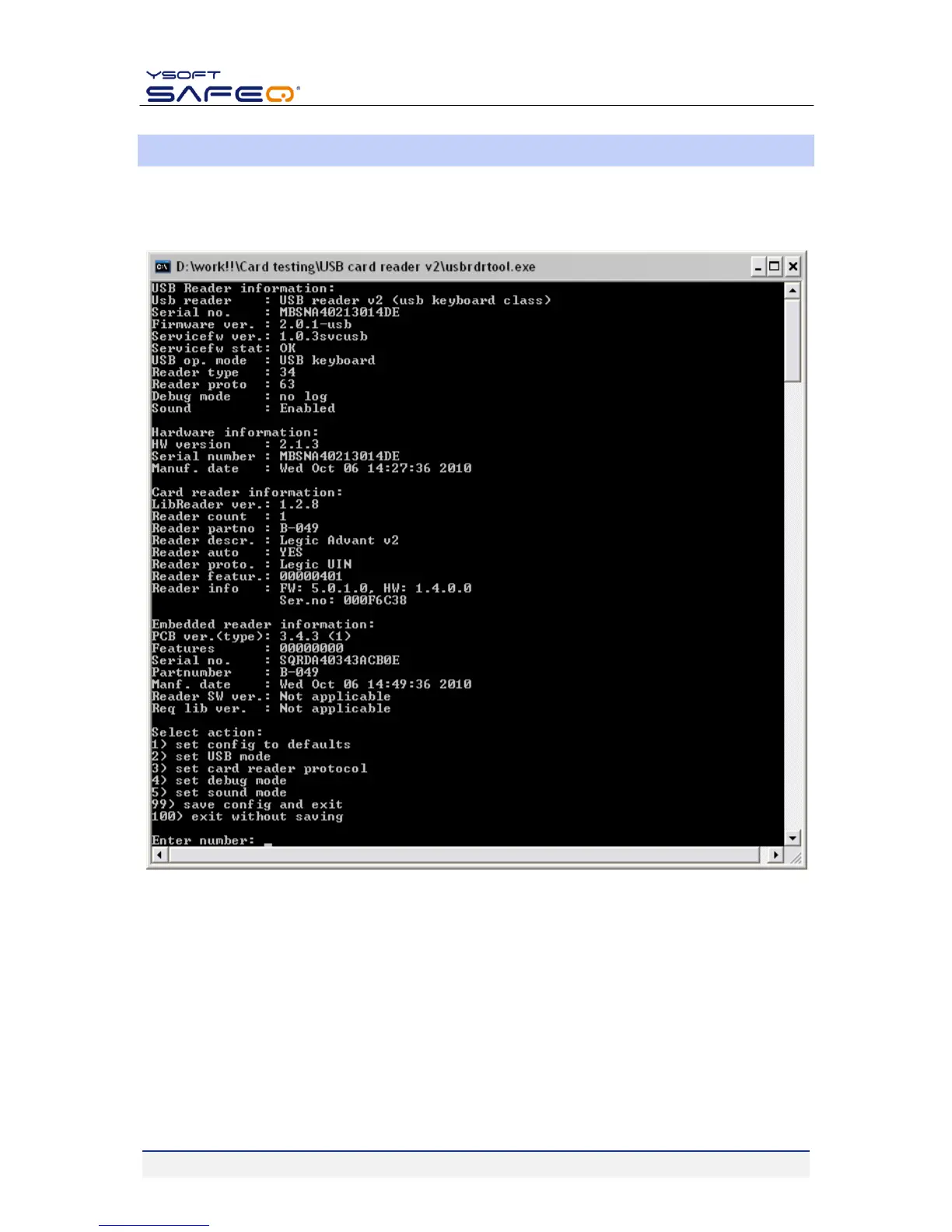

Picture 7 - Reader configuration screen
Action 1 sets the USB reader configuration to defaults. This includes USB mode, reader protocol, de-
bug mode and other parameters. This option does not format data that are stored on USB reader in-
ternal file system.
Action 2 sets USB mode. This option is available onlyfor specific OEM USB reader type. Available usb
modes are described in chapters 4.2.1 and 4.2.2.
