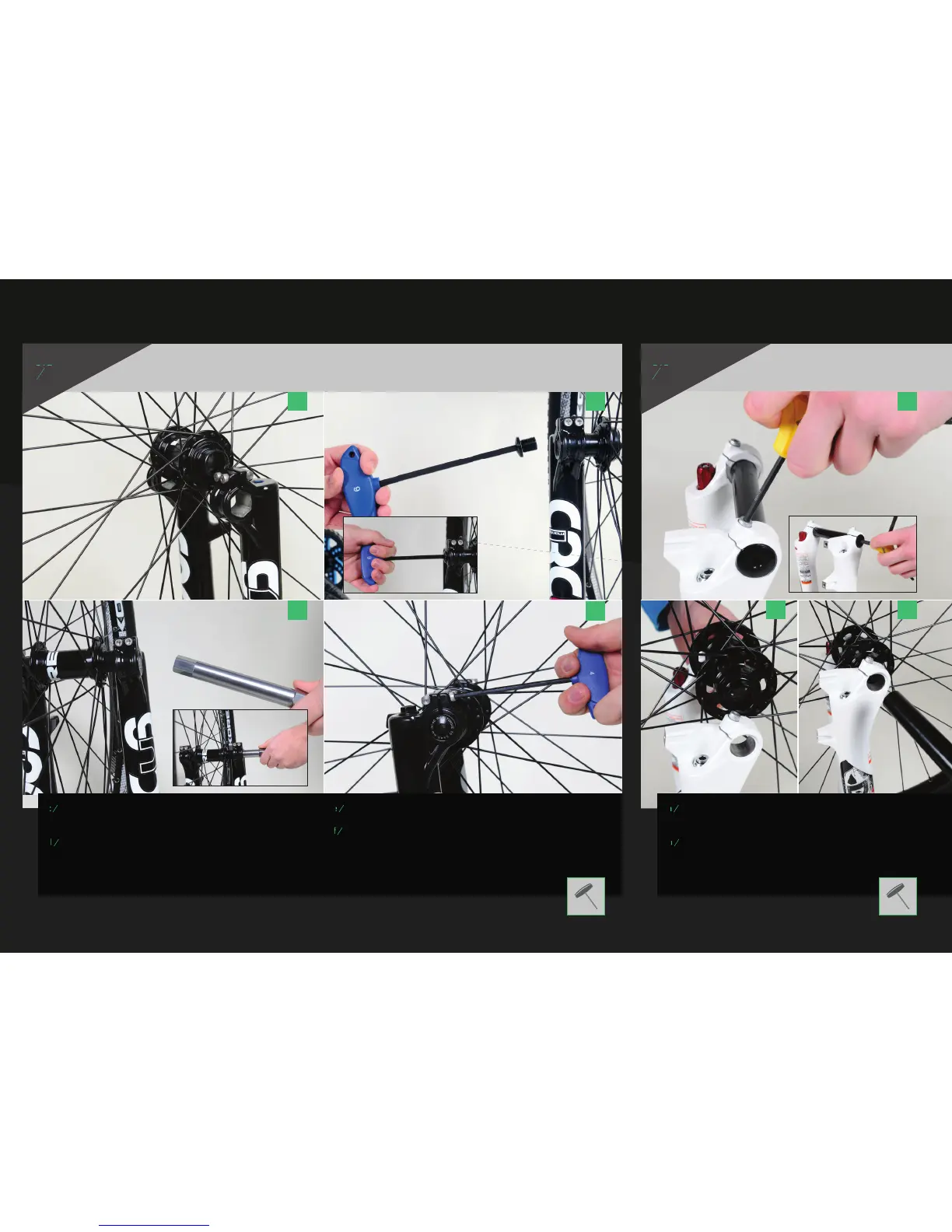

Insert the front wheel into the fork. Make sure that the end caps are
inserted straight and that the wheel is installed in the right direction.
The rotation direction is generally indicated on the tires.
d
Now the front axle can be inserted.
e
Slide the lightly greased axle through the hub until the thread engages
the opposite dropout and tighten it by hand using a 6 mm Allen wrench.
f
Tighten the retaining screws alternately with only one turn per screw.
This is the only way to achieve even clamping.
(Tighten each screw to 3.5 - 4.5 Nm using a 4 mm Allen wrench.)
ASSEMBLY INSTRUCTIONS
INSTALLING THE WHEELS - FORK MANITOU
STEP
Turn the bicycle upside down. Make sure the bike is standing securely.
Loosen both retaining screws using a 4mm Allen wrench.
Remove the axle using a 6 mm Allen wrench.
b
Now insert the front wheel in the fork dropouts.
Ensure that the hub is sitting correctly in the dropouts.
