Remove the front axle by opening the quick release lever and unscrewing it.
b
Now insert the front wheel in the fork dropouts.
Ensure that the hub is sitting correctly in the dropouts.
c
d
c
Now the front axle can be inserted. Slide the lightly greased axle through
the hub until the thread engages the opposite dropout and tighten the axle.
Do not use any tools to increase the leverage.
d
Close the lever by hand so that it is parallel to the stanchions.
b
a

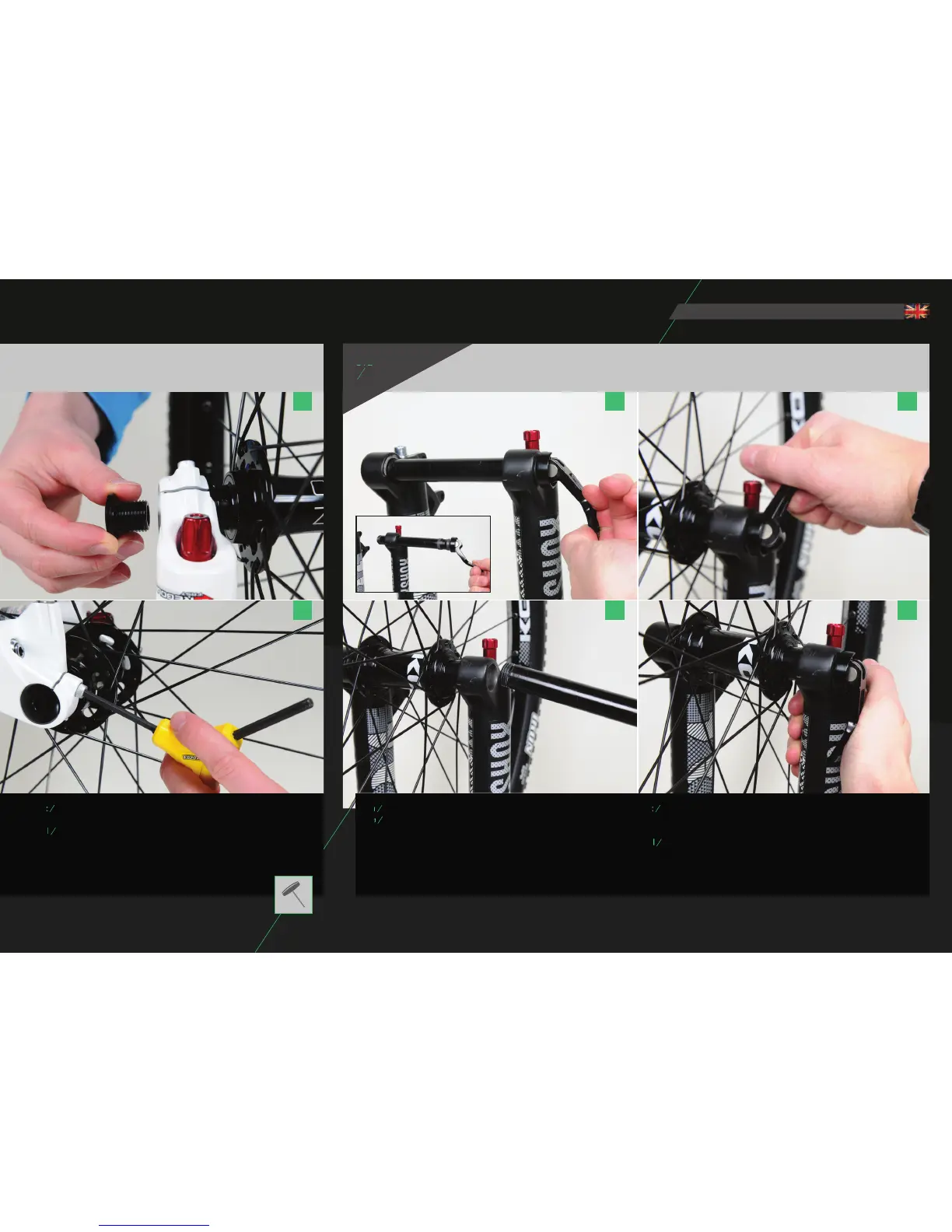

INSTALLING THE WHEELS - FORK ROCK SHOX
STEP
06 C
INSTALLING THE WHEELS - FORK MARZOCCHI
c
d
c
Slide the lightly greased axle through the hub and tighten it
by hand using a 6 mm Allen wrench.
d
Tighten the retaining screws alternately with only one turn per screw.
This is the only way to achieve even clamping
(Tighten each screw to 3.5 - 4.5 Nm using a 4 mm Allen wrench).
