INSERTING THE FRONT WHEEL - BOS IDYLLE
a
a

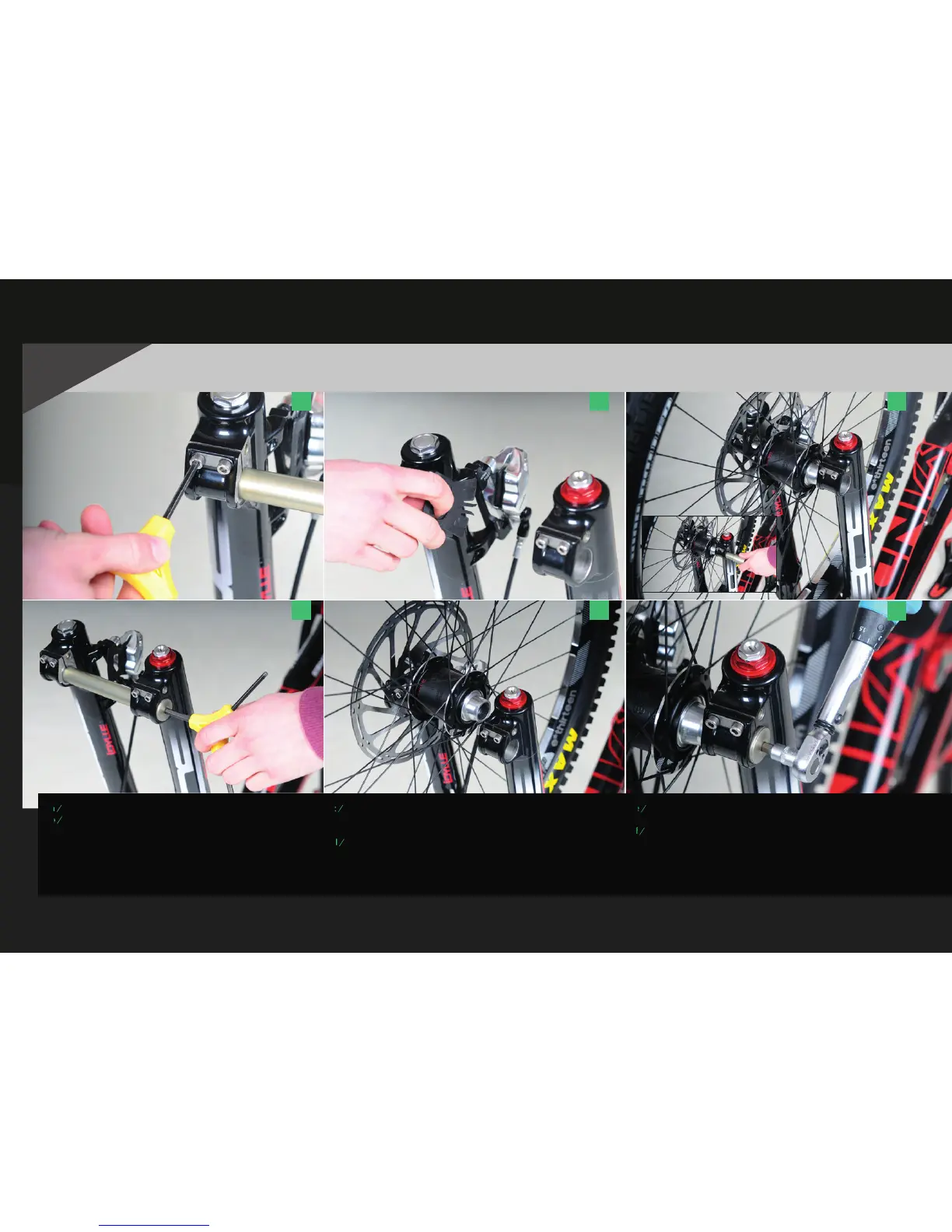

Loosen the four securing screws using a 4 mm Allen wrench.
b
b
b
Remove the axle using a 6 mm Allen wrench.
c
c
Remove the pad spacer from the front brake caliper. Store the spacer in a
secure location as it can be used to prevent the brakes engaging and pushing
the brake pads out when transporting the bike without its wheels.
d
d
Now insert the front wheel in the fork dropouts.
Ensure that the hub is sitting correctly in the dropouts,
and that the brake rotor is positioned between the brake pads.
e
e
Ensure that the brake rotor sits correctly between the brake pads.
Now the front axle can be inserted.
f
f
Slide the lightly greased axle through the hub until the thread engages
the opposite dropout and tighten it by hand using a 6 mm Allen wrench.
ASSEMBLY INSTRUCTIONS
