Tighten the securing screws on the brake rotor side alternately with only one
turn per screw. This is the only way to achieve even clamping (tighten each screw
to 3 Nm using a 4 mm Allen wrench).
Before tightening the securing screws on the other side, press down on the fork
once and let it rebound and install the screws just as you did before:
Tighten them alternately to 3 Nm using a 4 mm Allen wrench.

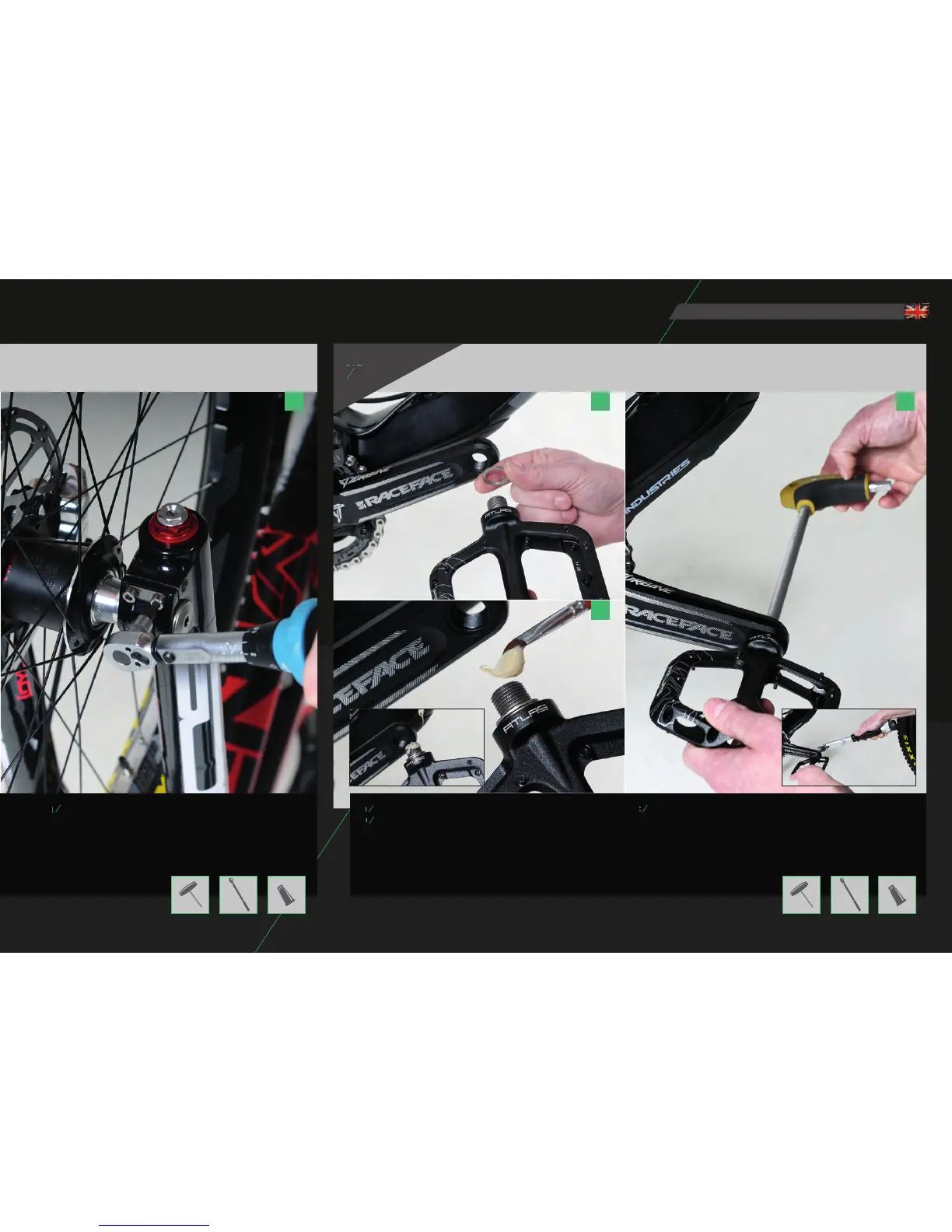

INSTALLING PEDALS
a c
b
a
Place the pedal washer on the pedal axle.
b
Apply suffi cient grease to the pedal thread.
Excess grease can be wiped away after the pedals have been installed.
c
Install the pedals using an Allen wrench (the size will vary by pedal manufacturer). The
drive side pedal has standard threading and the non-drive side pedal has reverse thread-
ing. Therefore, the non-drive side pedal is tightened by screwing it in counterclockwise.
Tighten the pedals using the torque wrench.
Please note the torque specifi cations of the manufacturer here as well.
