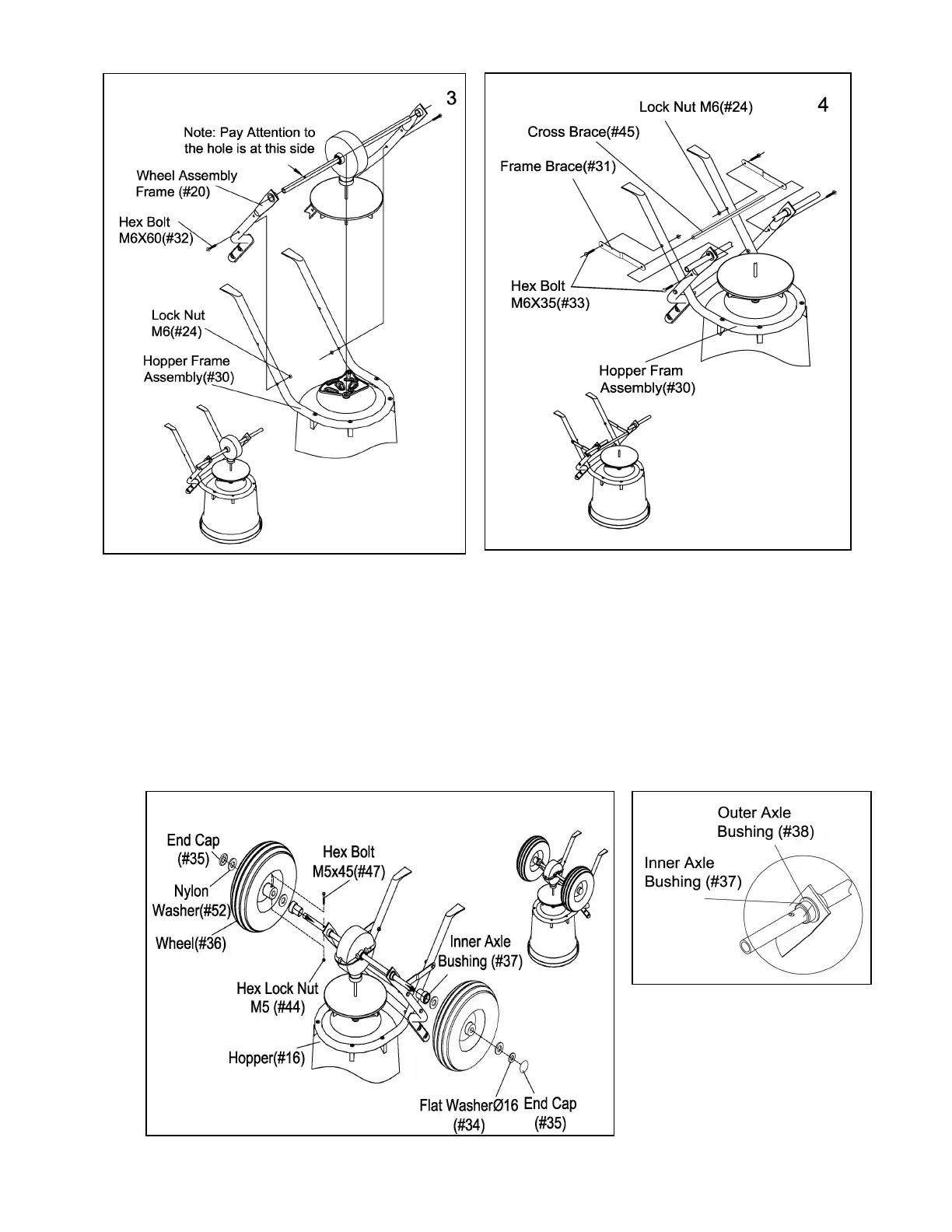

1. Slip Inner Axle Bushing (#37) onto the right side of the axle, pushing the Inner Axle
Bushing into the Outer Axle Bushing until tight. Attach Wheel (#36) to the right side of the
axle by inserting a M5 x 45 bolt (#47) and fastening with Lock Nut M5 (#44). Attach Axle
End Cap (#35) by tapping with a wooden or rubber mallet.
2. Slip Inner Axle Bushing (#37) onto the left side of the axle, pushing the Inner Axle Bushing
into the Outer Axle Bushing until tight. Push the Wheel onto the axle. Insert nylon washers
(#52) to the two sides of the wheel, then insert Flat Washer Ø16 (#34) and attach Axle End
Cap (#35) by tapping with a wooden or rubber mallet. NOTE: The nuts and bolts do not
have to be completely tightened yet.
5
Note: Insert the Inner axle
bushing into the outer
axle bushing and make
sure they are tight.
To Next Page
