Z GRILLS ZPG-700D4E - Digital Thermostat Control Wiring Diagram; Usage of the Meat Probe

25

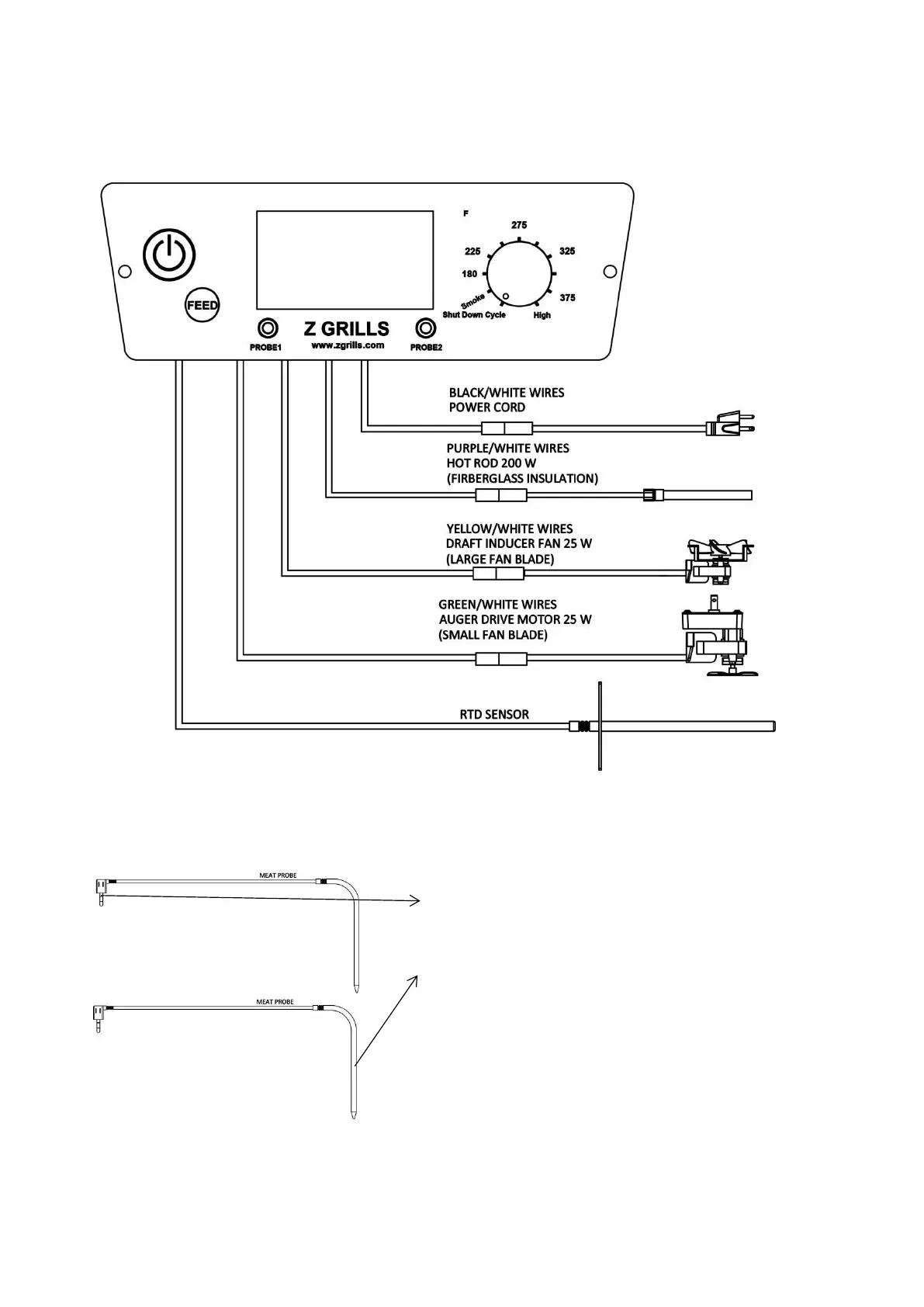

DIGITAL THERMOSTAT CONTROL WIRING DIAGRAM
Usage of the Meat Probe
Put the plug of the Meat Probe into the control
panel (PROBE1 or PROBE2)
Insert the Probe into the food to measure the
temperature
The P1 temperature of the control panel is
displayed as the temperature of PROBE1,
while the P2 temp is displayed as the temp of
PROBE2
