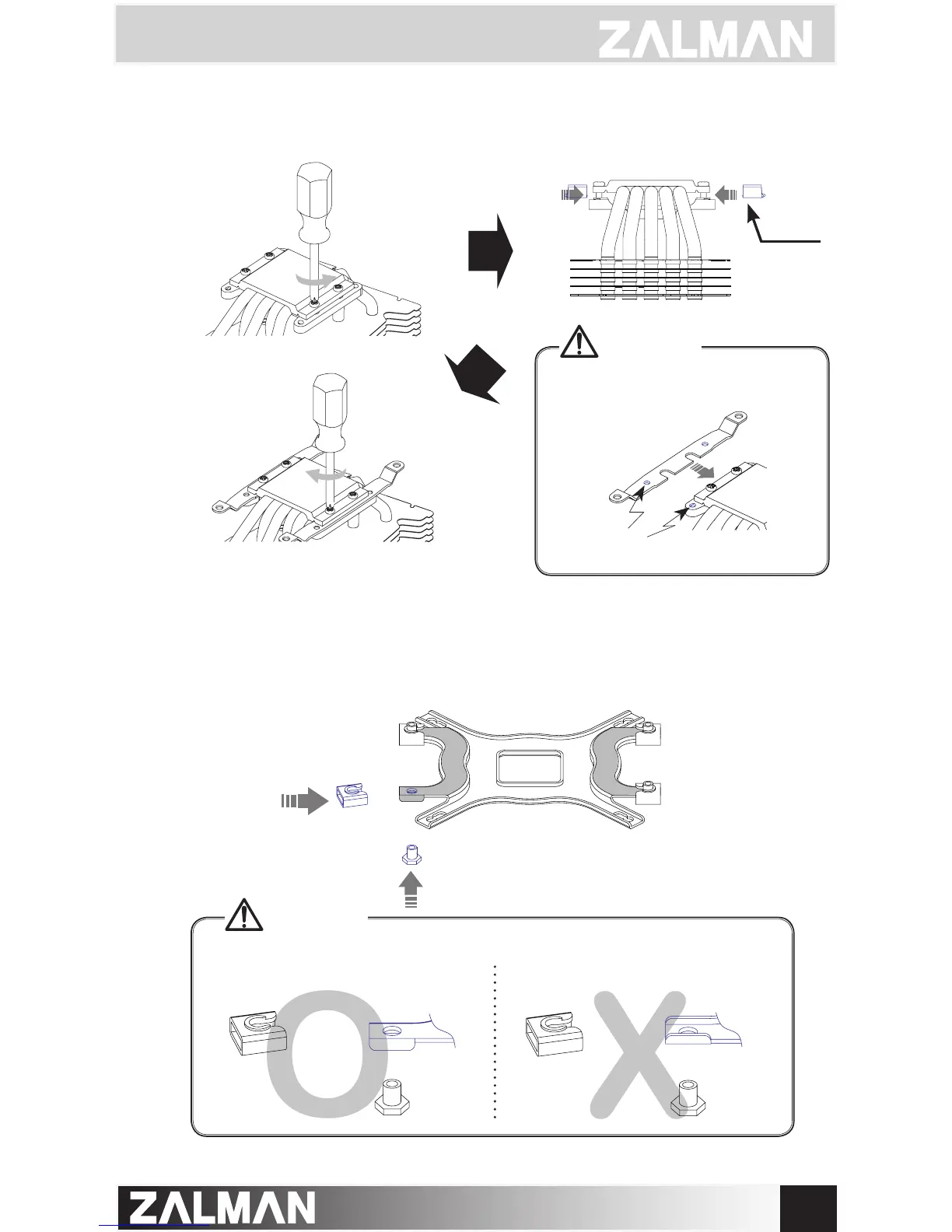

② Insert the Nuts to the Backplate according to the Socket type and fix with
the Side Caps.
1
2
Please note the direction of the Nuts and Side Caps.
Caution
① Unfasten the Bolts on the Cooler’s Base one thread, insert the AMD A Clip
between the Cover and the Base, and then refasten the Bolts.
AMD A Clip
Make sure the AMD clip’s holes and
the base cover protrusion’s holes
are aligned.
Caution
Align
