5. Installation
A. Clip A Installation

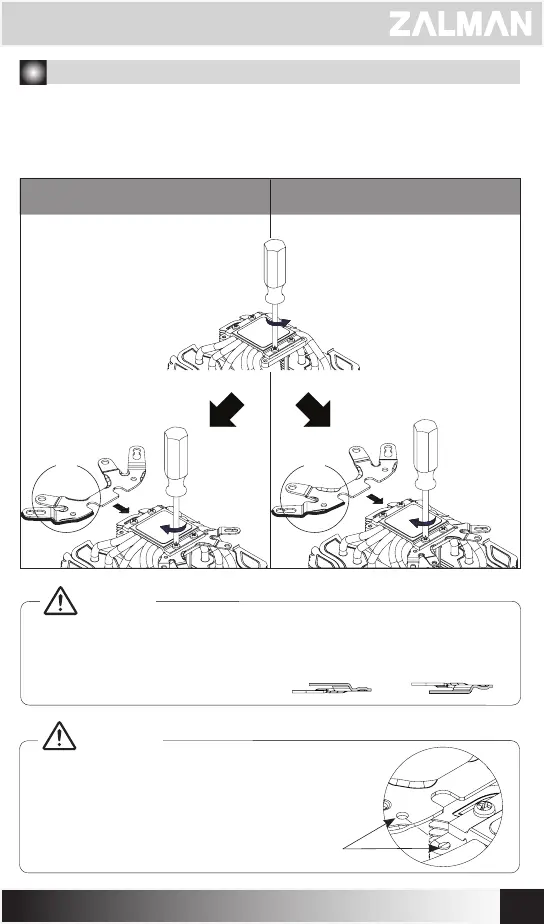

※ Install the clip A according to a user socket as shown in the image.
- Slightly loosen the bolts, insert the clip A between the cover and the base,
and then fasten it with the bolt.
Make sure that the holes of the clip A are attached
to the raised parts of the base cover.
Please note that the connection
directions of the clip A are different
according to sockets.
Caution
Caution
Intel Socket Clip A Installation AMD Socket Clip A Installation
Align
A
A
Intel Socket
Installation
B
AMD Socket
Installation
B
