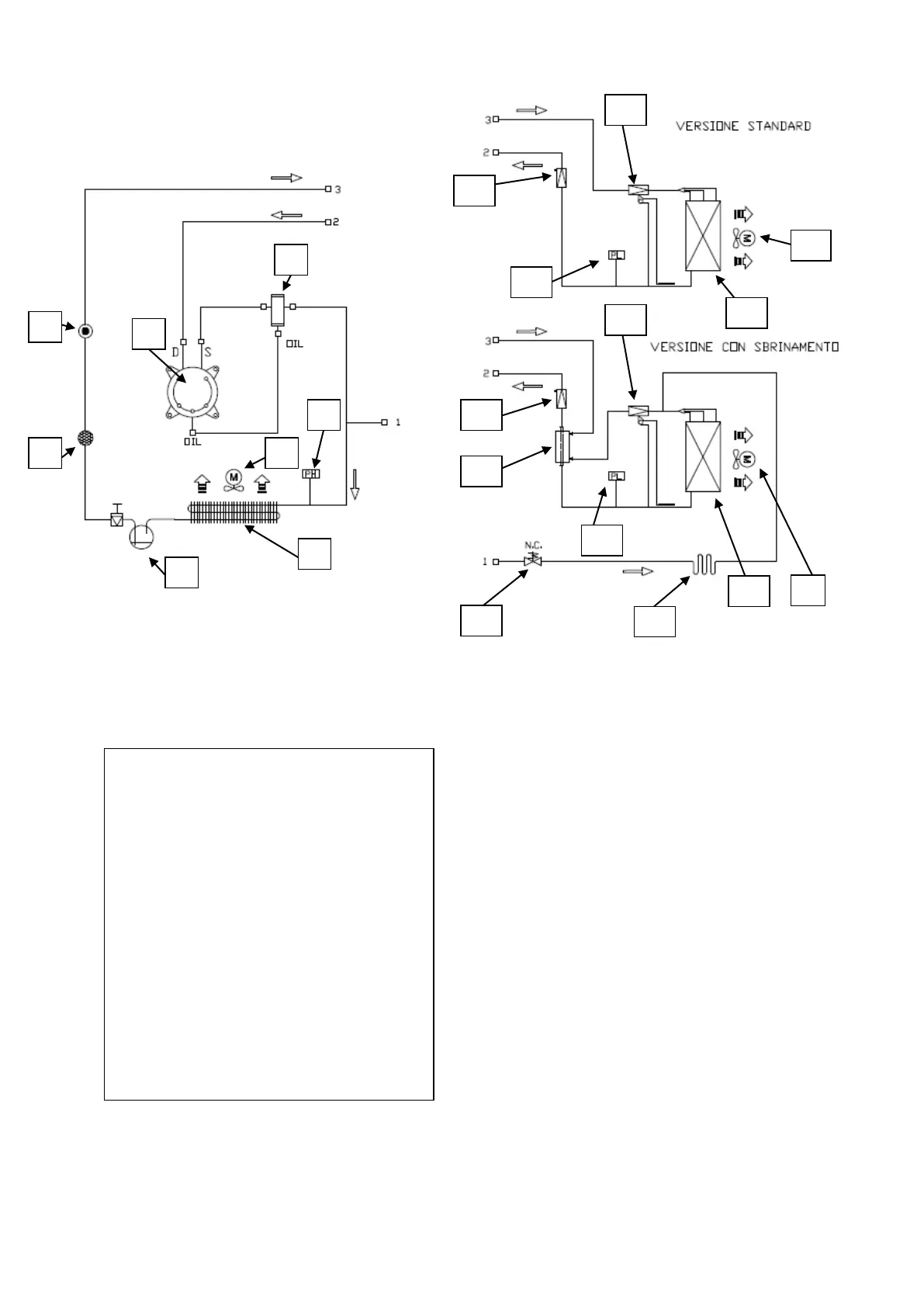

Zanotti FZ007 - SFZ 008 & SFZ 009 Cooling Circuit Detail; SFZ 008;009 Cooling Circuit Diagrams

29
SFZ 008
SFZ 009
1 Compressor
2 Condenser fan
3 High Pressure Switch
4 Condenser
5 Fluid Tank
6 Oil filter
7 Sight glass
8 Oil Separator
9 Evaporator fan
10 Evaporator
11 Defrost pipe
12 Thermostatic Valve
13 Low Pressure Switch
14 Soupape De Réglage
15 Exchanger
16 Solenoid Valve
1
2
3
4
5
6
7
8
9
9
10
10
11
12
12
13
13
14
14
15
16
