Mod. A B C D E F G H
GM1 735 264 280 110 400 335 375 100
GM2 830 264 280 110 400 335 590 100
GM3 830 364 350 110 522 440 590 100

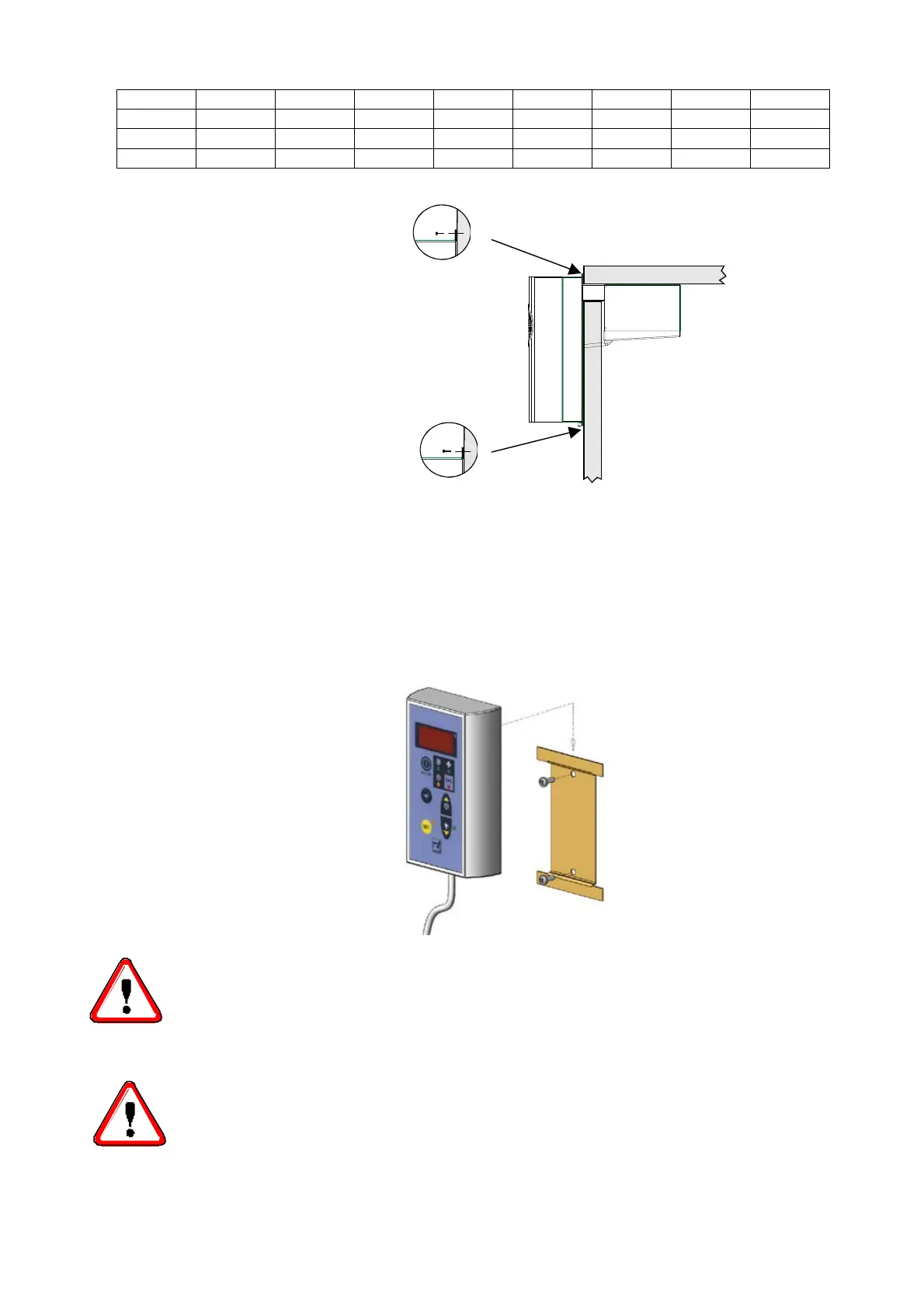

6.6 Fitting the remote panel (optional):
Fix the back plate to the wall using the pre-drilled holes; be careful the panel is kept
in a vertical position.
Fit the connecting cable between panel and unit making sure not to bundle it with
other cables.
ATTENTION
Maximum distance between panel and unit is 10 mt. For longer distances the special
“long distance module” should be used (optional).
ATTENTION
Check that the unit and its devices have suffered no damages
during transport. Pay special attention to the components
secured to the electric panel door and to the refrigerating circuit
pipes. Mount the unit as shown in the drawings; make sure that the
electric connections are carried out properly.
