Zanotti MSB2180Y1AAA - Connection Procedures

35

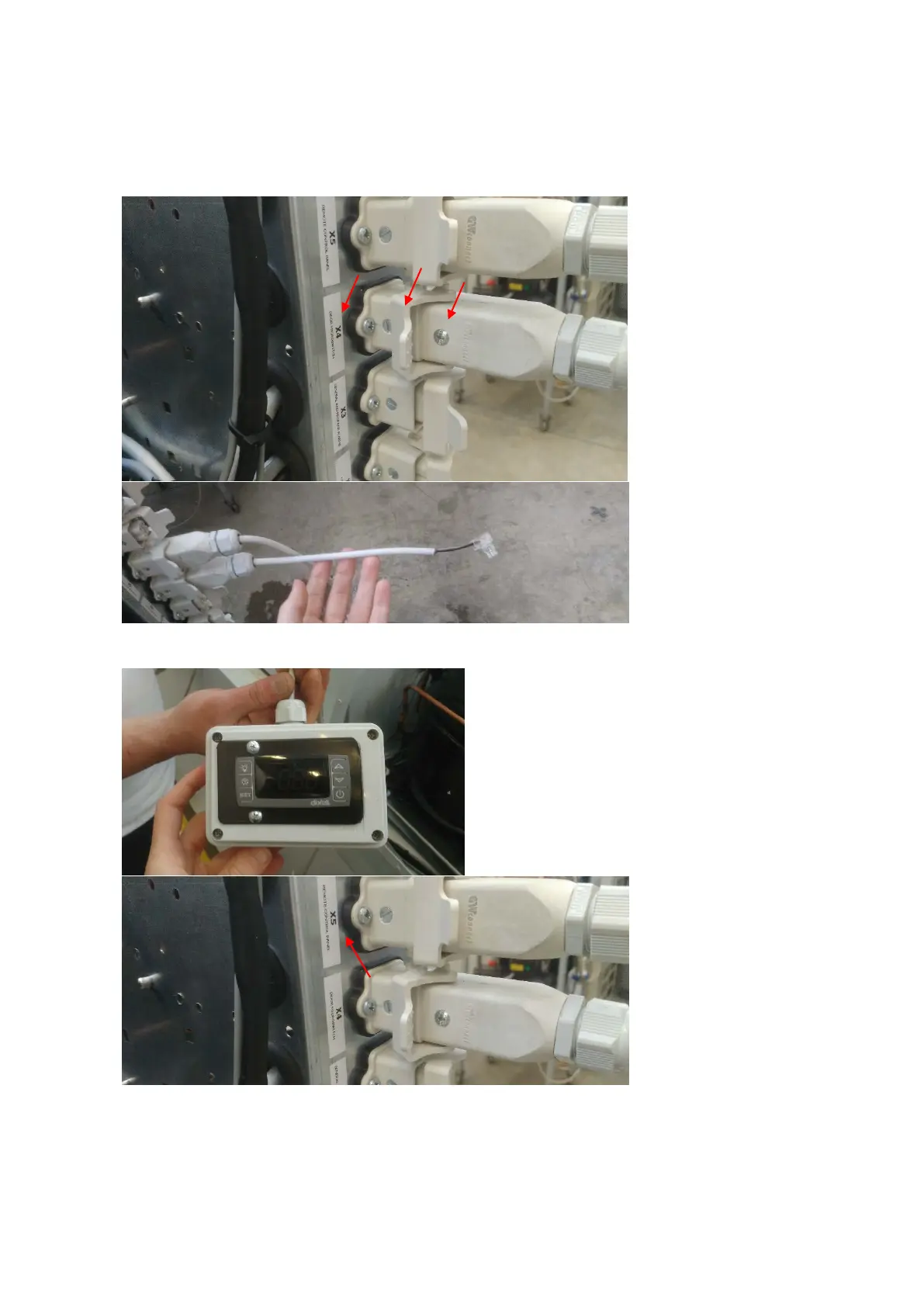

3) Connect the door cable to X4. The door cable is shortcircuited on one side. Writings on the cable allow to
recognize the type of cable. The right way to plug this cable (and the other ones) is with the screw on the
same side of the plastic latch. See pictures.
4) Connect the remote panel to X5
