min 12 mm
60 mm
B
A
min 5 mm
(max 150 mm)
A. Removable panel
B. Space for connections
Kitchen unit with oven
The electrical connection of the hob and the oven
must be installed separately for safety reasons and
to let easy remove oven from the unit.

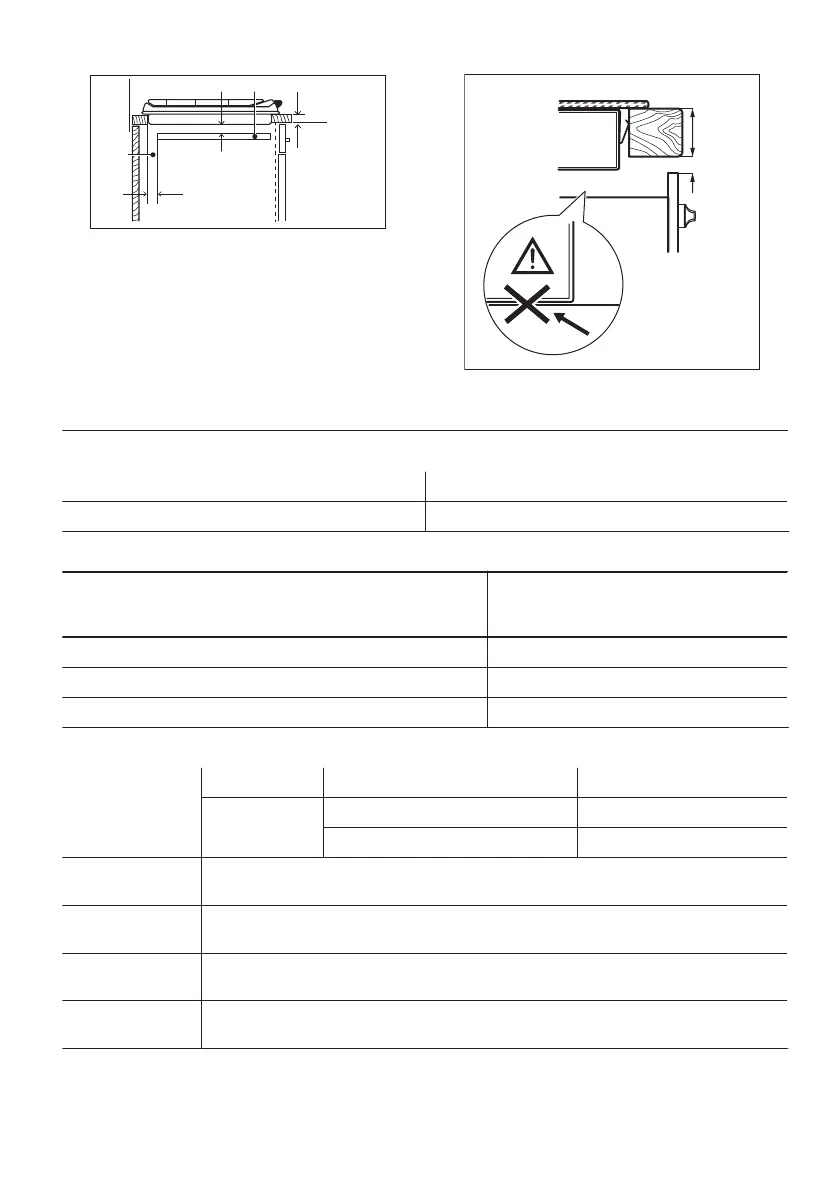

TECHNICAL DATA
HOB DIMENSIONS
Width 594 mm
Depth 510 mm
BYPASS DIAMETERS
BURNER Ø BYPASS 1/100 mm
Rapid 42
Semi-rapid 32
Auxiliary 28
OTHER TECHNICAL DATA
TOTAL POW-
ER:
Gas original: G20 (2H) 20 mbar 8 kW
Gas replace-
ment:
G30 (3+) 28-30 mbar 567 g/h
G31 (3+) 37 mbar 557 g/h
Electric supply: 220-240 V ~ 50/60 Hz
3 core flexible cable with non rewireable plug fitted with a 3 amp cartridge fuse
Appliance cate-
gory:
II2H3+
Gas connec-
tion:
R 1/2"
Appliance
class:
3
15
