Front Panel Connections
1) RCA Inputs- Six channels of input are available through RCA connectors*.
2) RCA Outputs-4 sets of RCA Connectors provide eight channels of output.
3) DIP Switch-Six position DIP switch is used to address the unit and assign a
node on the Zapco Digital Programming Network.
4) USB Port- Like all Zapco DC products, the DSP-Z8 has a USB port to interface
with a PC for all DSP programming functions.
5) Auxiliary Input
Digital Input- Optical connector for SPDIF input
Analog- RCA connector for analog Aux-in
6) Data Connectors- Two RG connectors provide Data in/out for network cables
(and DRC control input)
7) Power Connector- Provides Power, Ground, Turn On, and Aux +12 volt out **
* Note: To use speaker level inputs from a factory stereo, simply attach RCA
connectors to the factory speaker wires(up to a 22v signal). Assure that the DSP or
amplifier is in High Level input mode and plug the speaker wires directly into the RCA
inputs.
you use speaker level inputs from a factory stereo the DC product will turn on
automatically and also provide +12v trigger output to turn on other components.
** Note: The Zapco DC Series also has DC-offset sensing for automatic turn-on. If
-10-
5 1 2 3 6 4 7

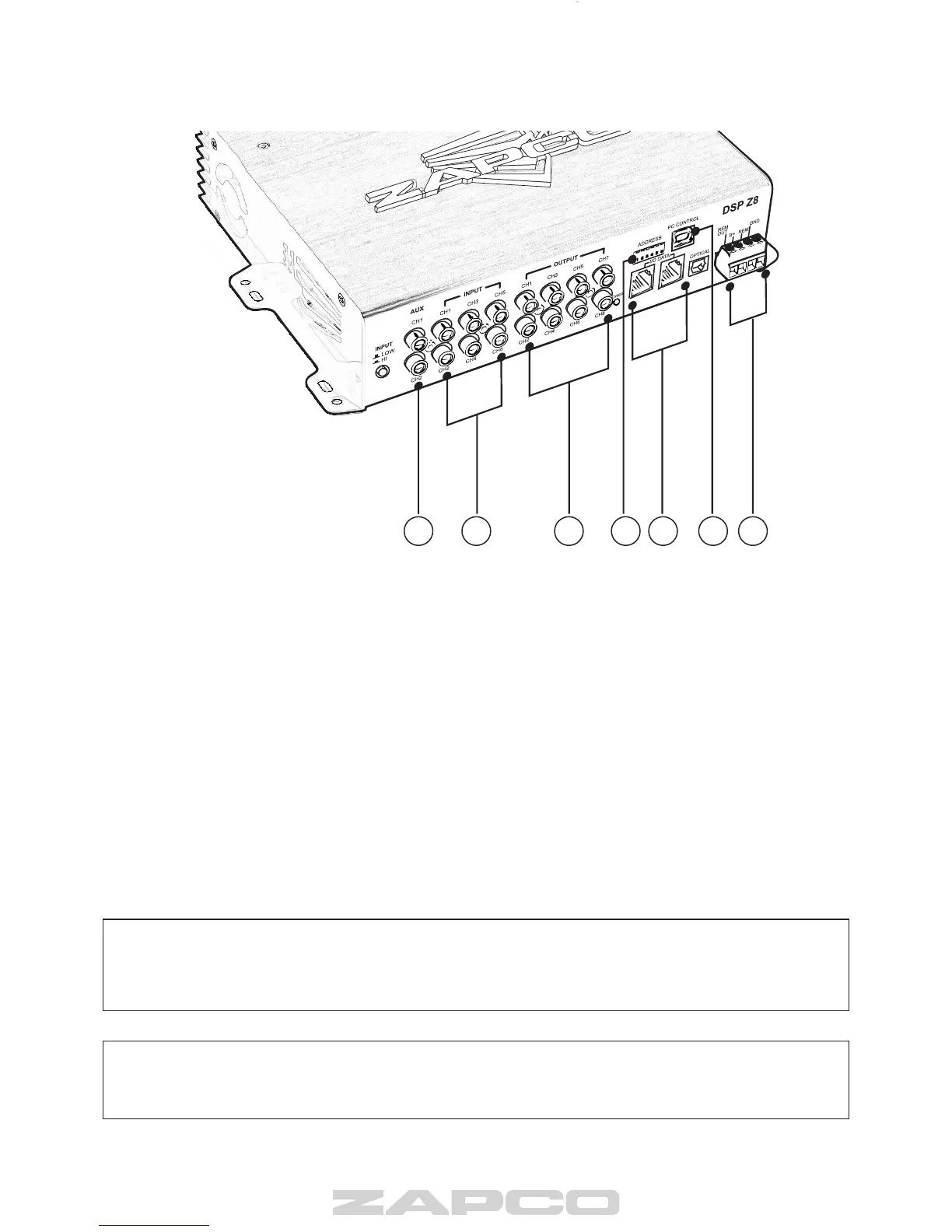

DSP-Z8 Connection Panel
