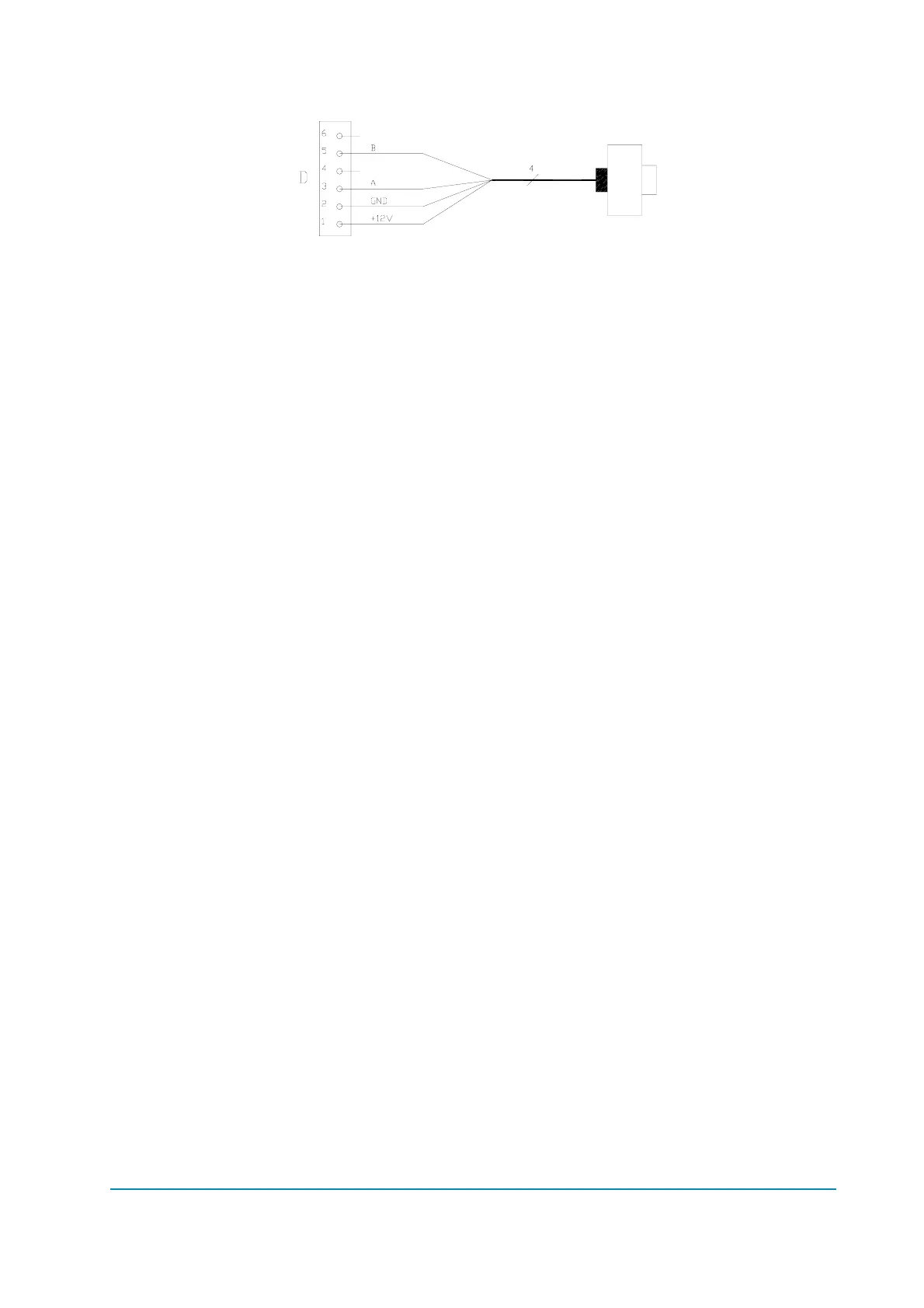

4) Connection of encoder with open collector output: +12 V power supply.
VERY IMPORTANT
It is necessary to specify in the order the type of encoder used, in terms of
power supply, electronic output and n° of pulses for revolution, because
the logic unit must be set in the correct way by Zapi.
ADEZP0AE - AC-2 INVERTER - User Manual Page - 19/64
