input curve.

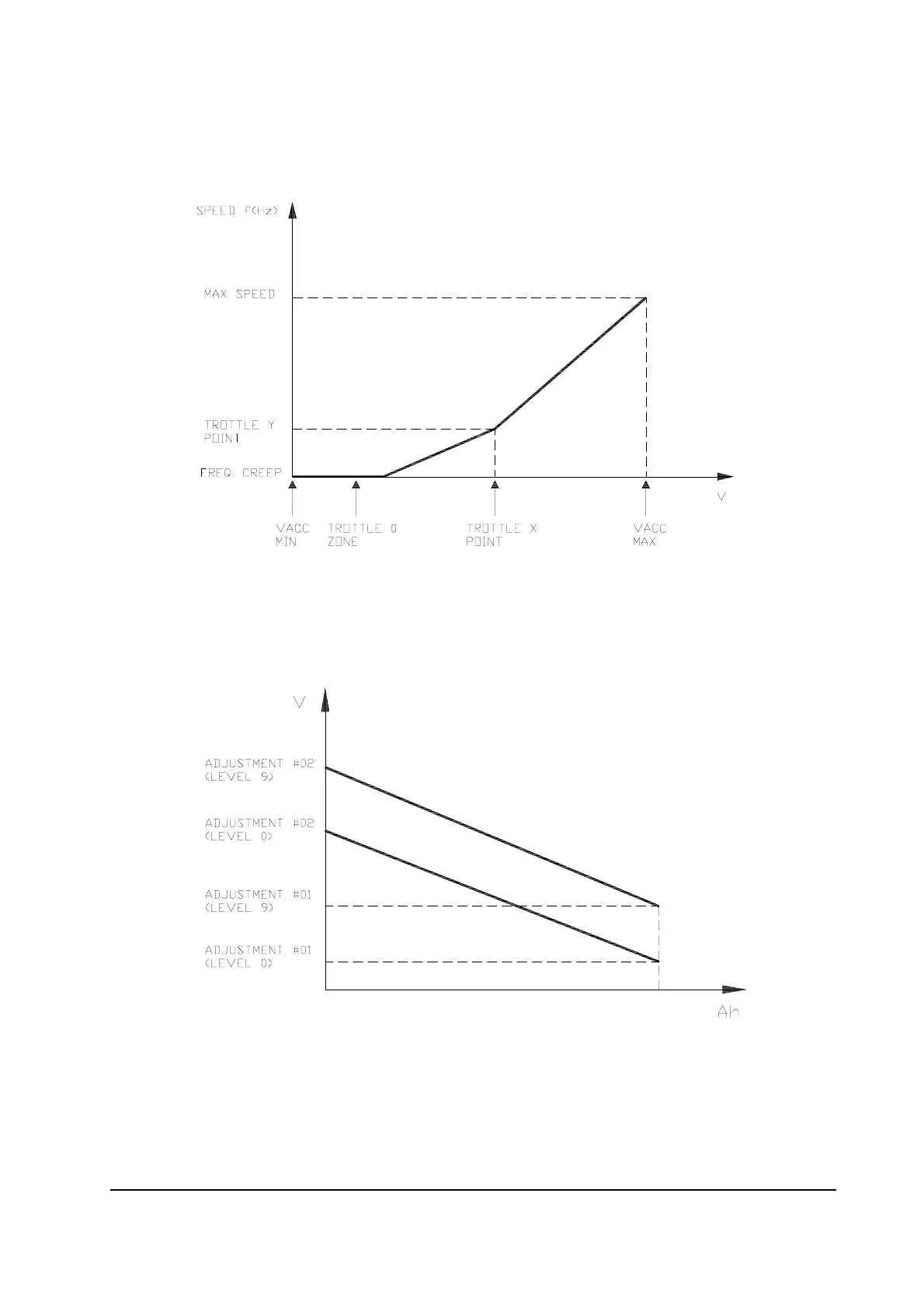

6 THROTTLE Y POINT: These parameter change the characteristic of the accelerator
input curve.
VACC MIN and VACC MAX are values programmable by the "Program Vacc" function.
7 ADJUSTMENT #02: adjust the upper level of the battery discharge table.
8 ADJUSTMENT #01: adjust the lower level of the battery discharge table.
