Page 51
15) VOLTAGE BOOSTER: this is the booster of the voltage supplied to the motor in load
condition; it is expressed in a percentage of the full voltage.
16) BATTERY VOLTAGE: level of battery voltage measured at the input to the key switch.
17) COS FI: this is the cos j (real time calculated) of the motor.
18) BATTERY CURRENT: this is the battery current (not measured but calculated).
19) BATTERY CHARGE: the percentage Charge level of the battery.

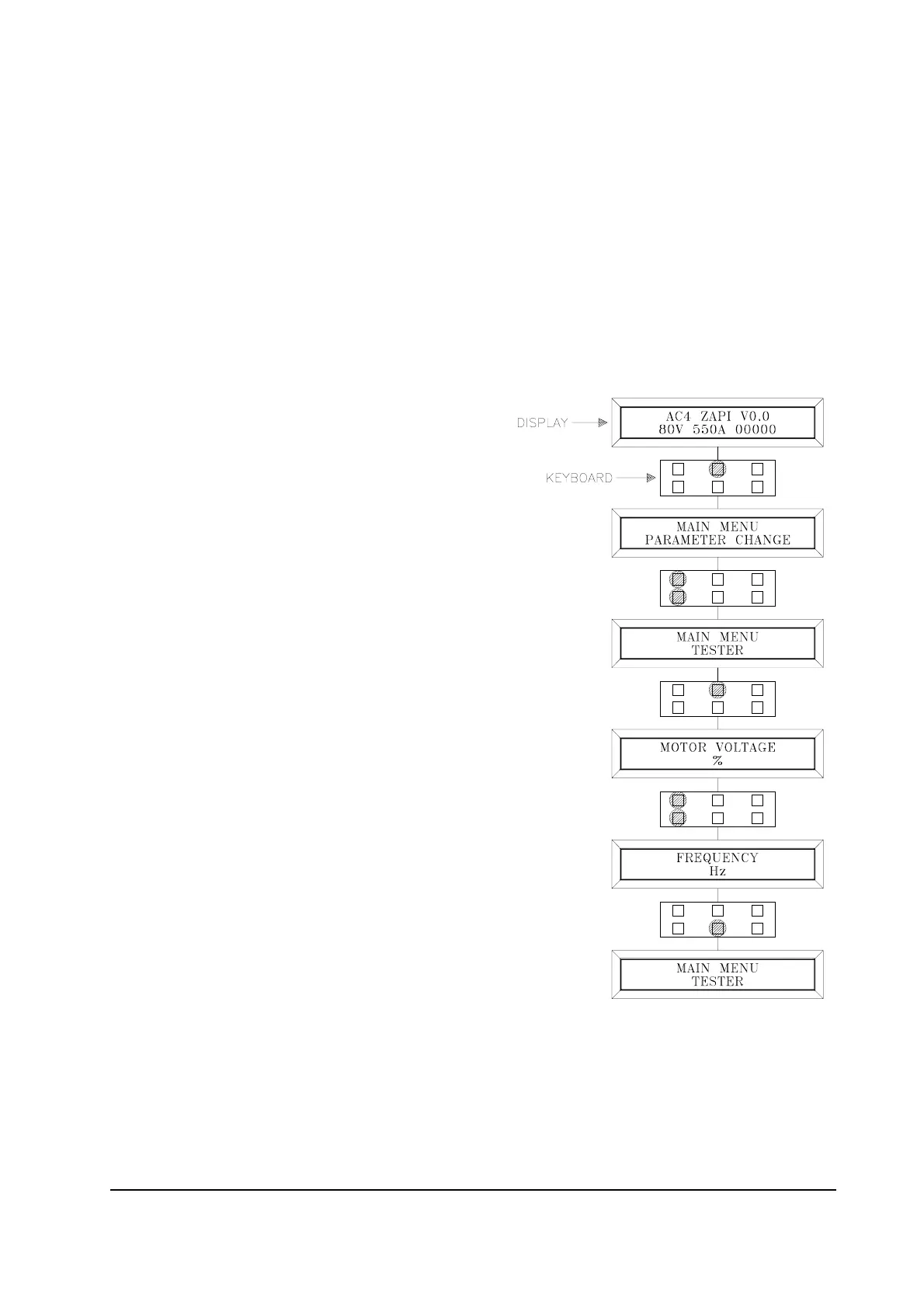

Flow Chart showing how to use the TESTER function of the Digital Console.
1) Opening Zapi Display.
2) Press ENTER to go into the General menu.
3) The Display will show :
4) Press ROLL UP or ROLL DOWN button until
TESTER MENU appear on the display.
5) The Display shows :
6) Press ENTER to go into the TESTER function.
7) The first variable to be tested is shown on the Display.
8) Press either ROLL UP or ROLL DOWN buttons until your
desired variable for measurement appears on the Display.
9) When you have finished, Press OUT.
10) The Display shows :
11) Press OUT again and return to Opening Zapi Display.
Remember it is not possible to make any changes using TESTER. All you can do is
measure as if you were using a pre-connected multimeter.
