DESCRIPTION OF EQUIPMENT SECTION 1
on the information from the transmissive media sensor pair but starts based on information
from another pair of media sensors, the take label or label available sensor pair.
7DNH/DEHO6HQVRUV
See Figure 1-5. This pair of sensors detects the absence of a label printed on non-continuous
media in the peel off mode. When the label is removed, the sensor pair signals the processor
and the processor starts printing the next label.
5LEERQ6HQVRU
See Figure 1-6. This sensor detects the absence of ribbon and sends a “ribbon out” message
to the processor. The processor pauses the printing until more ribbon is loaded.

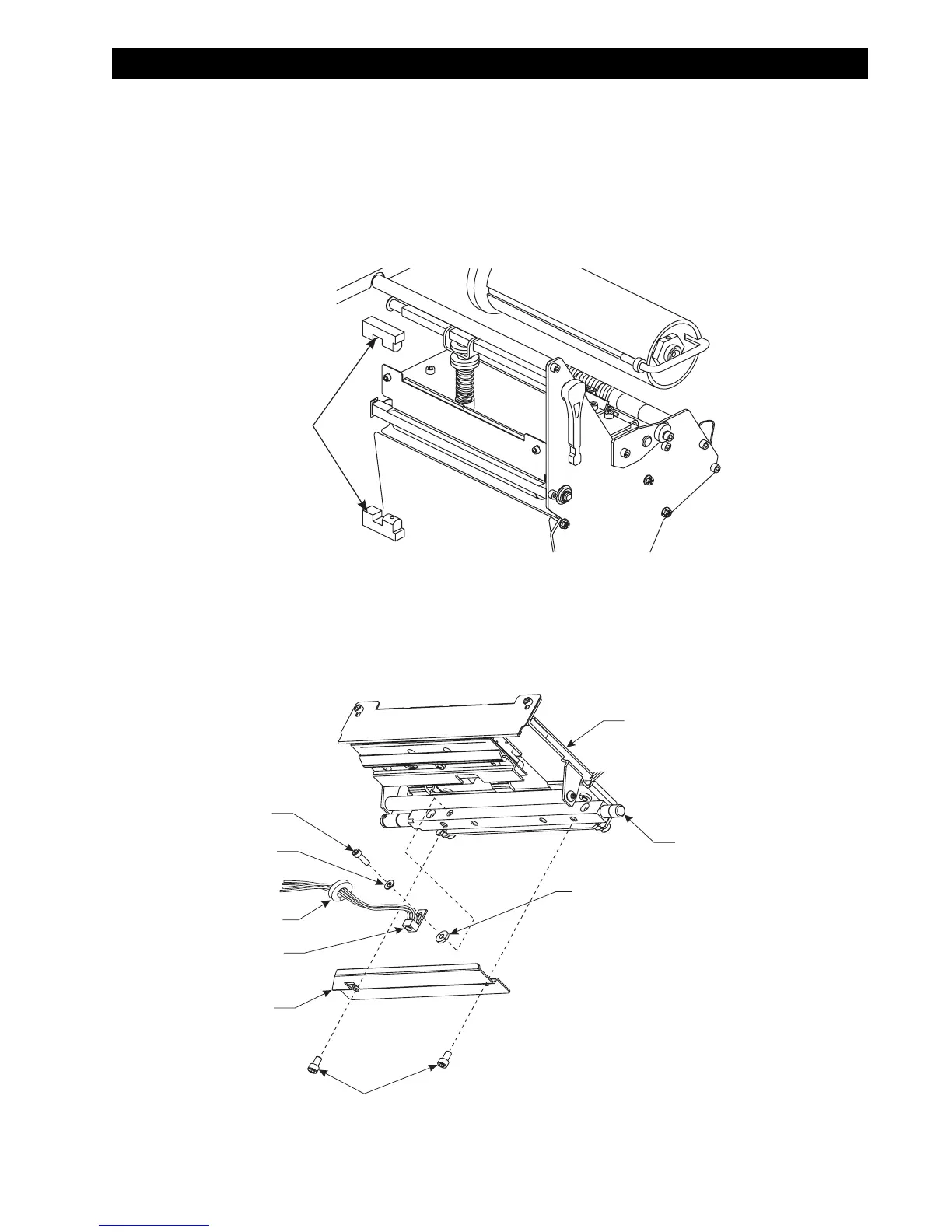

Figure 1-5. Take Label Sensor Pair
Figure 1-6. Ribbon Sensor, Guard Plate and Printhead
Label
Available
Sensors
Printhead Assembly
Pivot Bar
Allen Screws
Guard Plate
Allen Screw
Flat Washer
Washer
Ribbon Sensor
Split Grommet
(See Note)
Note:
Position Ribbon Sensor Tab Not
To Be Flush With Top Edge of Pivot Bar.
Gap 0.010 Min./0.030 Max. Below Top Edge.
