Page 5-34 105SL Maintenance Manual 32056L Rev. 2 12/4/01
SECTION 5 MAINTENANCE AND ASSEMBLY DRAWINGS
*Only available in quantities of 25 as Part Number HW30392-006
Table 5-18. Fanfold Bin Option
Item Part Number Description Qty
1 40457 Kit, Fanfold Upgrade 1
2 30278 . Bracket, End, Fanfold 1
3 30277 . Bracket, Side, Fanfold 1
4 40276 .Bin, Fanfold 1
5 . Screw, 6-32 x 0.37 3
6 30956 . Washer, Flat 0.207 x 0.146 x 0.030 2
7 01130 . Nut, 6-32 3
Bold = Part available for purchase
Light italic = Part not available for purchase, listed and shown for reference only

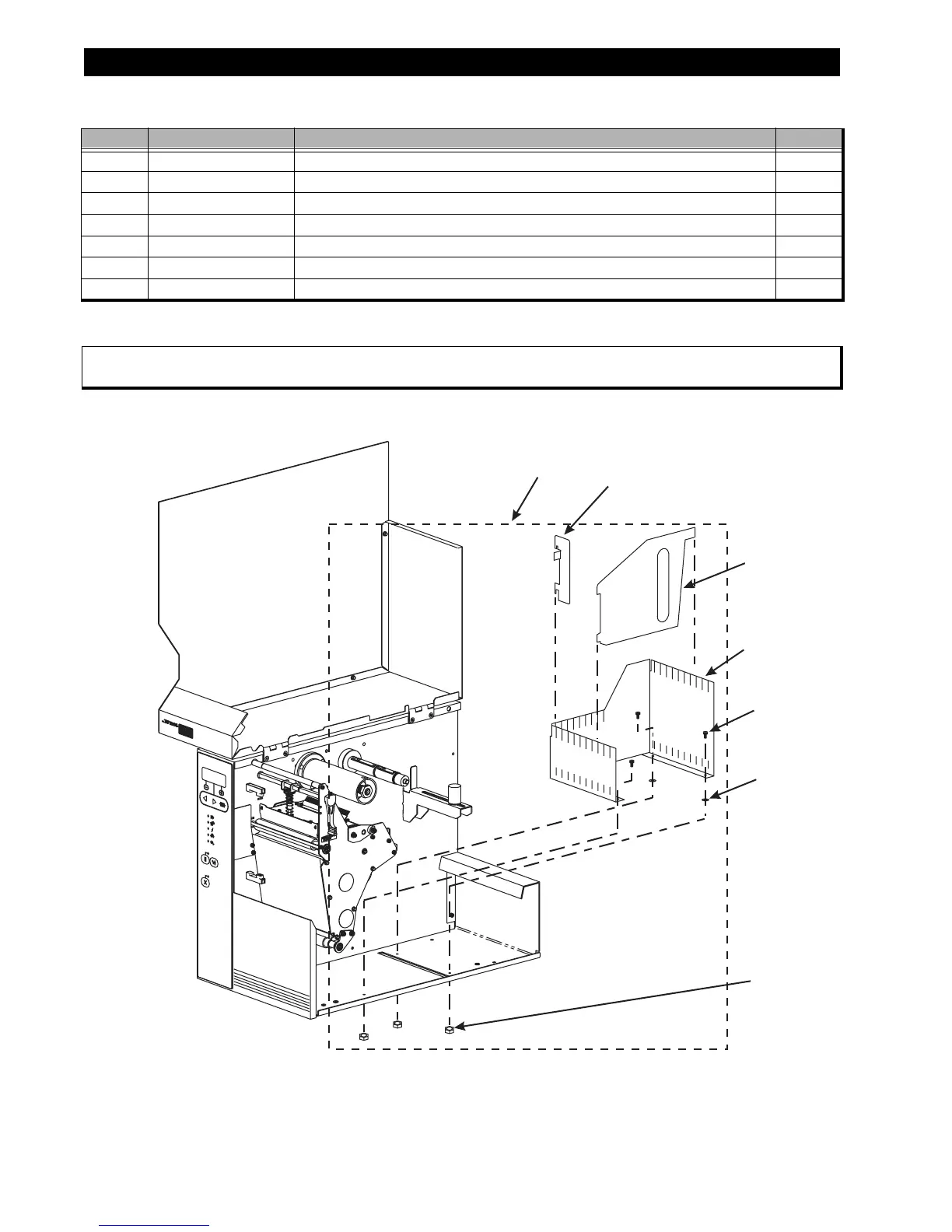

Figure 5-19. Fanfold Bin Option
