SECTION 2 OPERATION OVERVIEW
32:(5&25'
(OHFWULFDO5HTXLUHPHQWV
• Universal power supply with power factor correction 90–264 VAC, 48–62 Hz.
• Power Consumption
Idle = 19 W
Printing = 180 W (printing pause test label at speed A)
• Agency approvals: UL 1950, CISPR 22 (class B), IEC 950, 801-2, -3, and -4 standards,
CSA 950, Canadian Doc. (class A), FCC (class A), CE compliance
&DEOH5HTXLUHPHQWV
The AC power cord has a three-prong female connector on one end. This connector must be
plugged into the mating connector at the rear of the printer.
9$&$SSOLFDWLRQV
A standard US-style, three-prong grounded male plug is attached to the other end of the AC
power cord. This connector must be plugged into a nearby electrical outlet.
9$&$SSOLFDWLRQV
An AC power cord may or may not be included with the printer. For those locations that cannot
use either of the three power cords listed below, a proper grounded AC power cord must be
obtained and installed by the user. See Figure 2-2. The cable must then be plugged into a
nearby electrical outlet.
Table 2-3. AC Power Cords
Part Number AC Power Cable Description
44693 120 VAC Detachable Power Cord w/NEMA 5-15 plug for US
44629 230 VAC Detachable Power Cord w/CEE7-7 “SCHUKO” plug for Europe
44637 230 VAC Detachable power Cord w/BS 1363 plug for UK
46639 240 VAC Detachable power Cord w/SAA 3112-1993 plug for Australia

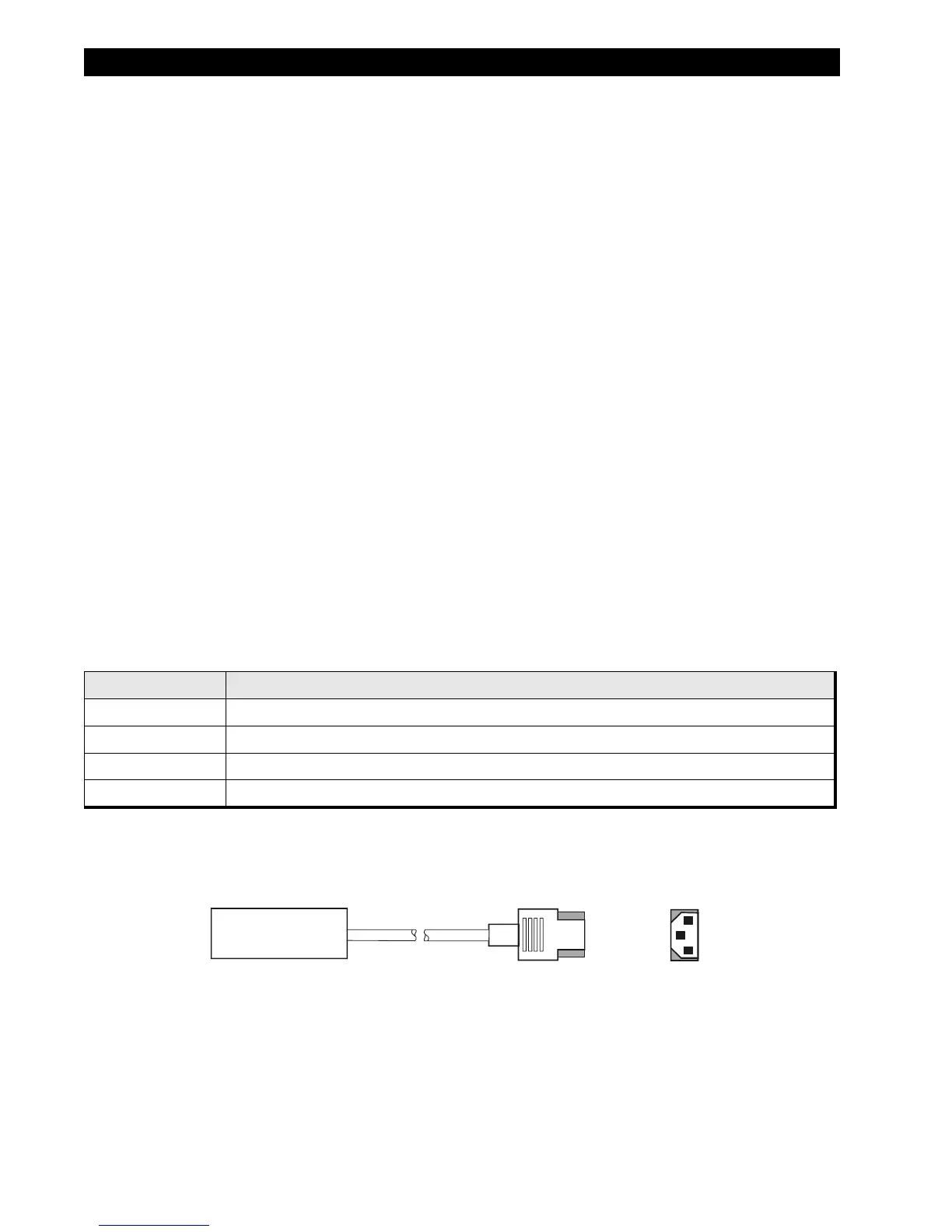

Figure 2-2. AC Power Cord
