SECTION 2 OPERATION OVERVIEW
)DQIROG0HGLD/RDGLQJ
Refer to Figure 2-18.
Fanfold media feeds through either the bottom or through a rear access slot from outside the
printer.
1. Open the printhead.
2. Slide the media guide as far from the printer frame as possible.
3. Load media as shown. If in cutter mode, route media through the cutter.
4. Slide in the media guide so it just touches, but doesn’t restrict, the edge of the roll.
5. Close the printhead.

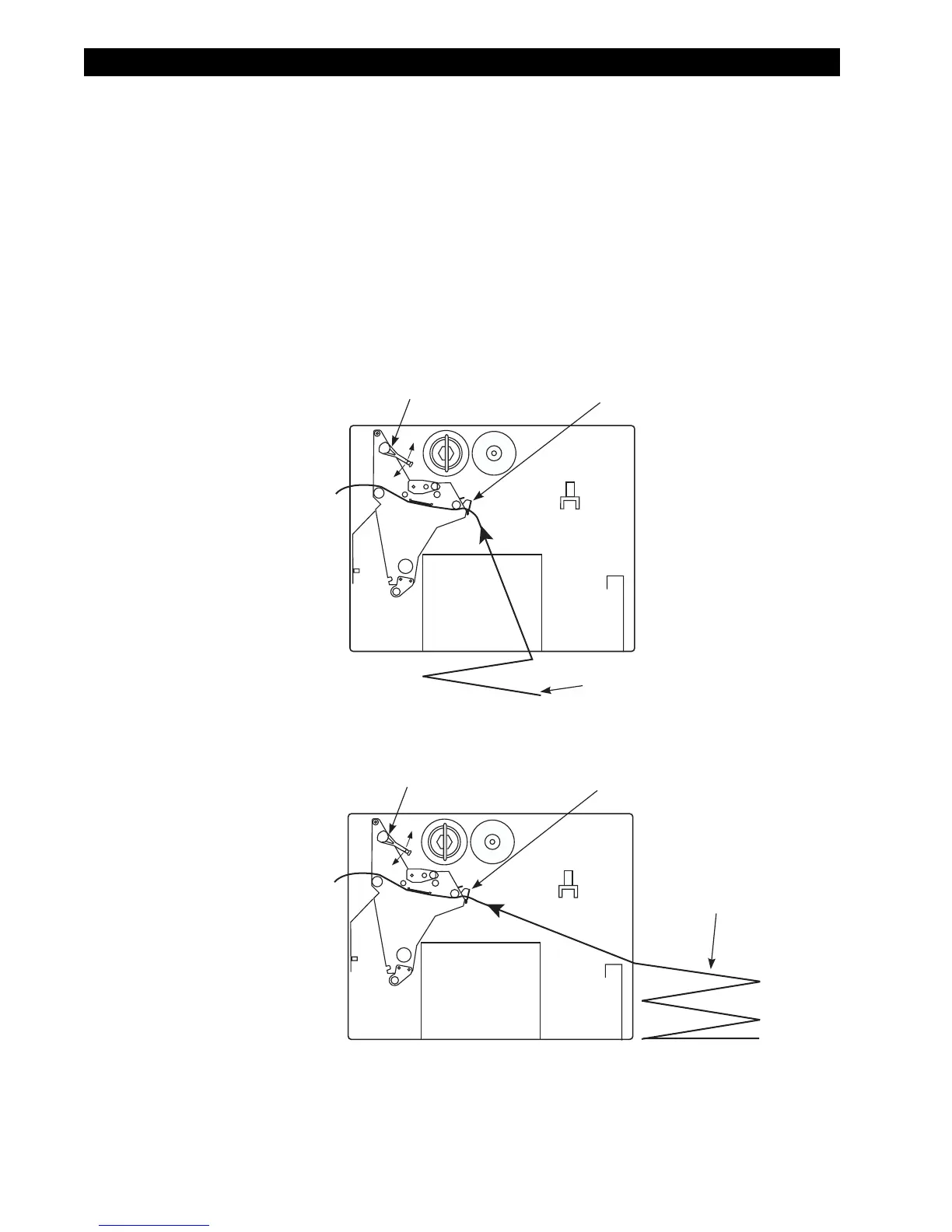

Figure 2-18. Fanfold Media Loading
Media
Open
Open
Closed
Closed
Media Guide
Media Guide
Bottom Supply
Rear Supply
Media
Printhead Lever
Printhead Lever
