OPERATION OVERVIEW SECTION 2
6HWWLQJWKH0D[LPXP/DEHO/HQJWK
Maximum Label Length specifies the distance from the leading edge of one label to the
leading edge of the next label. Refer to Figure 2-26. A considerable part of the interlabel gap
is part of the label length. Setting this parameter serves two functions:
• The value of this setting determines the maximum label length value to be used during
the media portion of the calibration process.
• Only a few labels are required to set the media sensors.
Always set the length to a value that is one step above the actual length of the label you are
using. For example, if the label length is 5 inches (126 mm), set the parameter for
6 inches (152 mm). If the label length is 7.5 inches (190 mm), set the parameter for
8.0 inches (202 mm).
NOTE: Before you begin the media and ribbon calibration procedure, be sure the
maximum length is set to a value one step greater than the actual media. If
the maximum length is set to a lower value, the printer assumes that
continuous media is loaded, which results in the printer not calibrating.
0$;,080/(1*7+
– ,100

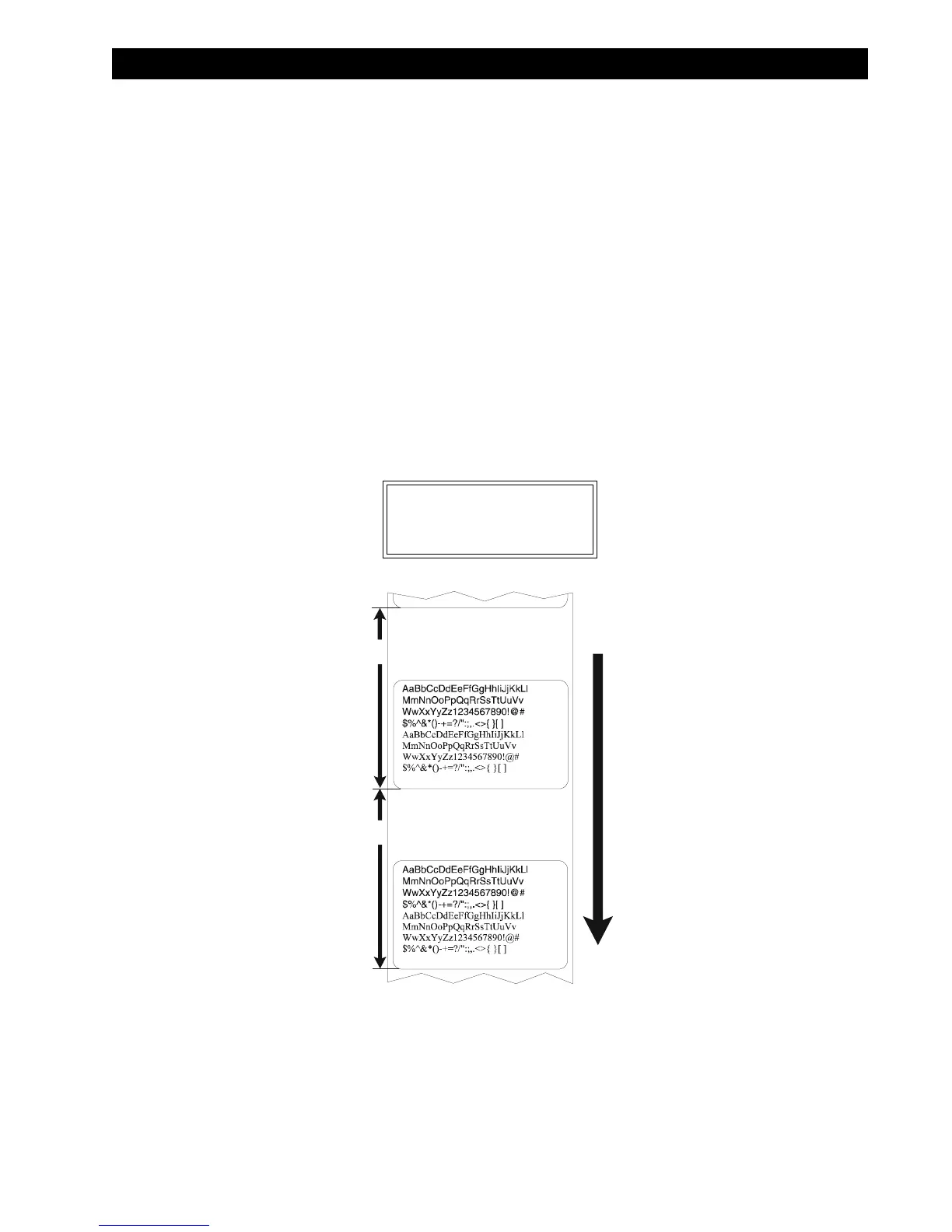

Figure 2-26. Maximum Label Length
