32056L Rev. 2 12/4/01 105SL Maintenance Manual Page 3-9
TROUBLESHOOTING SECTION 3
)(('.H\/RRSEDFN7HVW
With the loopback connector in place, press the FEED key while turning the power switch ON.
After the Power-On Self Test, the printer begins printing the same series of label formats as
shown in Table 3-1 for FEED key/CANCEL key test. The printer pauses at the end of each
series of labels. Press the PAUSE key to begin printing the next format. Sample labels are
shown in Figure 3-7 through 3-13.
The PAUSE key can be used to stop and restart the printing operation. When the printer is
paused, the CANCEL key can be used to move to the next label format.

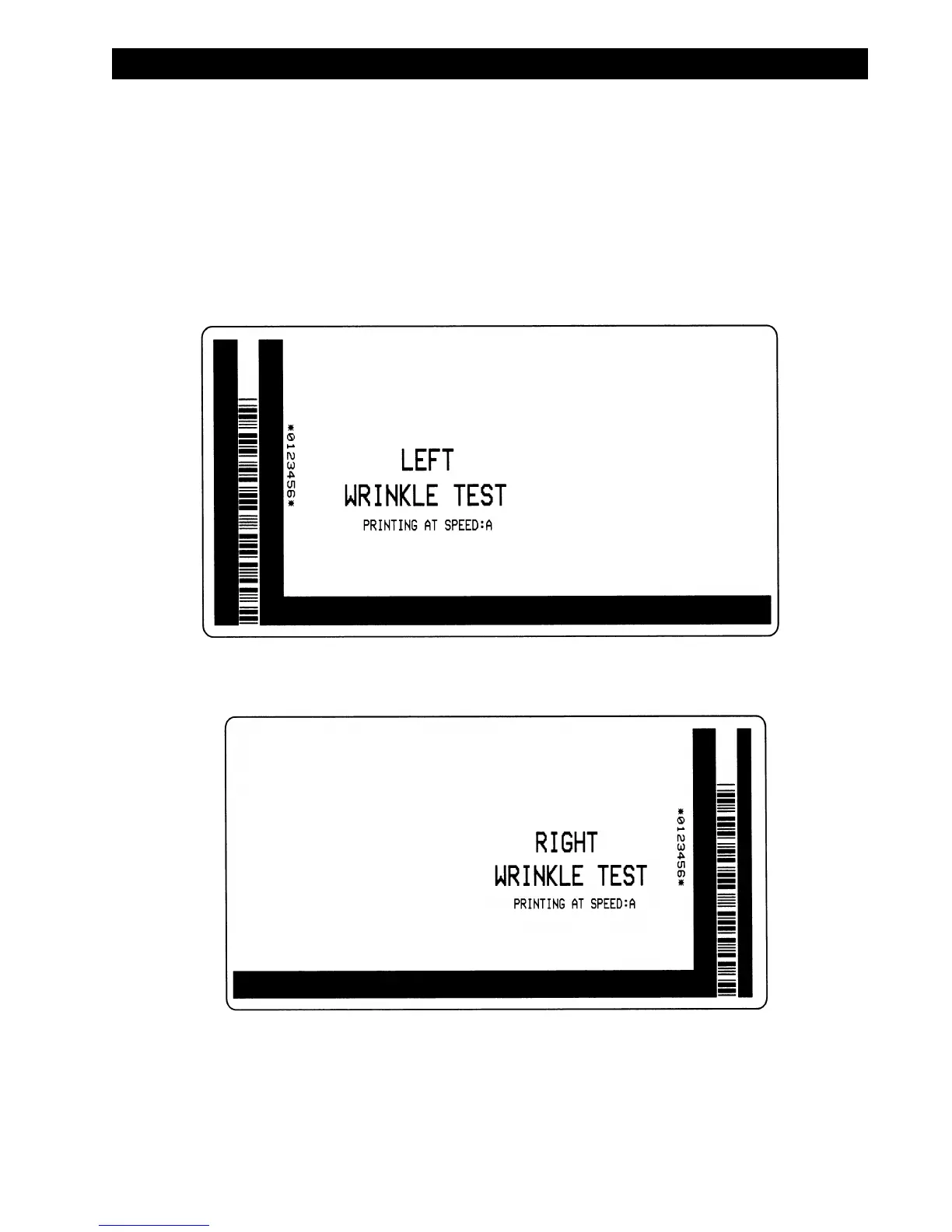

Figure 3-7. Format 1 and 4 Test Sample Label
Figure 3-8. Format 2 and 5 Test Sample Label
